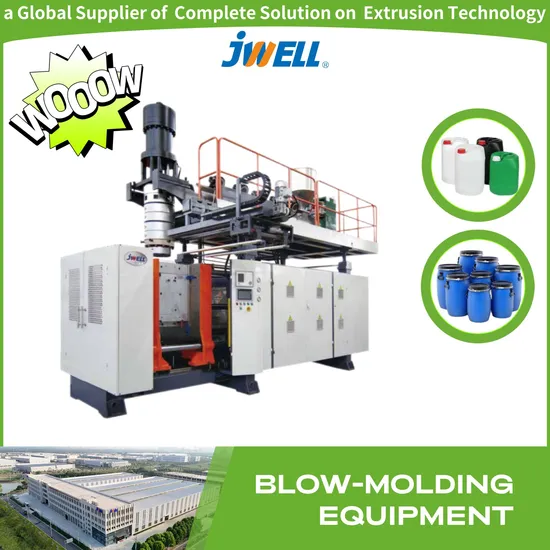

Jwell 30/50/100 L Blow Molding Machine Suitable for Producing 15-100 L Different Size Jerrycan, Open-Top Barrels and Others Chemical Packaging Products.

Product Description

Product Description
Performance and advantages:
1. Suitable for producing 15-100L different size jerrycan,open-top barrels and others chemical packaging products.
2. Adopt high output extrusion system,accumulating die head.
3. Optional view strip line system.
4. Optional hydraulic servo control system.
5. Optional double layer co-extrusion system.
Product Application
Household daily necessities:
Suitable for producing milk bottles, soy sauce jugs, yellow wine jugs of various specifications from 100ml~3000ml.
It can also produce 200ml~5000ml various shampoo, shower gel, detergent and other toiletries containers.
Oil & Lubrication Products:
Suitable for the production of 1L~5L various specifications of motor oil jugs and lubricant jugs.
Suitable for producing 15-30L different size Chemical packaing jerrycan.
Suitable for producing 15-100L different size jerrycan,open-top barrels and others chemical packaging products.
Suitable for producing 100-220L open-top drums, double"L"ring drums.
Suitable for producing 500-1200L drum.
Components for the automotive industry and transportation:
Suitable for producing different kinds of car urea box, tool box, automotive seat, auto air duct, auto flow board, bumper and car spoilers.
Suitable for producing diffferent car shaped pipe fifittings products like the automotive oil fifiller pipe,air ducts pipe and others.
Suitable for producing different kinds of road pyramid, logistic insulation barrels.
Logistics Packaging and Daily Goods:
Suitable for producing different kinds of pallet.
Suitable for producing 100ml-3000ml different size of Milk bottle,soy sauce bottle,yellow wine bottle. 200ml-5000ml different size of shampoo bottle,body wash bottle, detergent bottles and others Toiletries and different children's toys.
Suitable for producing different size of children safety chair, desk board, playgroud facilities.
Medical products and others:
Disposable plastic straw pipe/dropper is widely used in laboratory, food research, medical industrial etc. Specifications are 0.2ml,0.5ml,1ml,2ml,3ml,5ml,10ml Etc.
Suitable for producing different kinds of plastic medical bed head boards,foot boards and guardrails.
Suitable for producing different kinds of blow molding PV floating.
Optional configurations and customization services
1. Multi-layer co-extrusion: Multi-layer co-extrusion system can be optional according to customer's demand to realize multi-layer material compound extrusion.
2. Liquid level line extrusion: optional liquid level line extrusion system can be used to produce containers with liquid level line.
3. Multi-die head extrusion system: according to the size of the product specification, different die head systems such as double die head, three die head, four die head, six die head, etc. can be selected.
4. Hydraulic screen changer system: according to the raw material, JW-DB plate type single station hydraulic screen changer system can be optional, in order to improve the production efficiency and product quality.
5. Online auxiliary equipments: according to the customer's requirement, we can choose the auxiliary equipments such as online de-flashing, online frit conveying, online finished product conveying, etc. to realize the automatic production.
Product Parameters

Model

Unit

BM30

BM50

BM100

Max product volume	L	30	50	100
Dry cycle	Pc/h	600	450	360
Die head structure	Accumulating type	Accumulating type	Accumulating type	Accumulating type
Main screw diameter	mm	80	90	100
Max plasticizing capacity (PE)	kg/h	120	180	190
Driving motor	Kw	37	45	55
Accumulating volume	L	5.2	6.2	12.8
Oil pump motor power(Servo)	Kw	22	30	30

Clamping force	Kn	280	400	600
Space between platen	mm	400-900	450-1200	500-1300
Platen size W*H	mm	740*740	880*880	1020*1000
Max.mould size	mm	550*650	700*850	800*1200
Heating power of die head	Kw	20	28	30
Machine dimension L*W*H	m	4.3*2.2*3.5	5.6*2.4*3.8	5.5*2.5*4.0
Machine weight	T	12	13.5	16
Total power	Kw	95	110	135

Detailed Photos
Packaging & Shipping
Our Advantages
1. Advanced production technology: Jwell adopts advanced technology and process to produce PVB and SGP interlayer film to ensure the stability and reliability of product quality.2. Customised production capacity: Jwell is able to customise production according to customers' specific needs and specifications, providing products and services that meet customers' requirements.3. Strict quality control: From precise measurement and mixing of raw materials, to extrusion moulding under high temperature and pressure, to cutting, each step is carefully designed and strictly monitored to ensure that every detail of the product meets high standards.4. Professional technical support: Jwell has a professional technical team, which can provide customers with comprehensive technical support and solutions.5. Perfect after-sales service: Jwell provides perfect after-sales service guarantee system to ensure that customers can get timely solution when they encounter problems in the process of using.
