Overlap/Butt-Welded Pex-Al-Pex Pipe for Water and Heating Under European Standard

Product Description

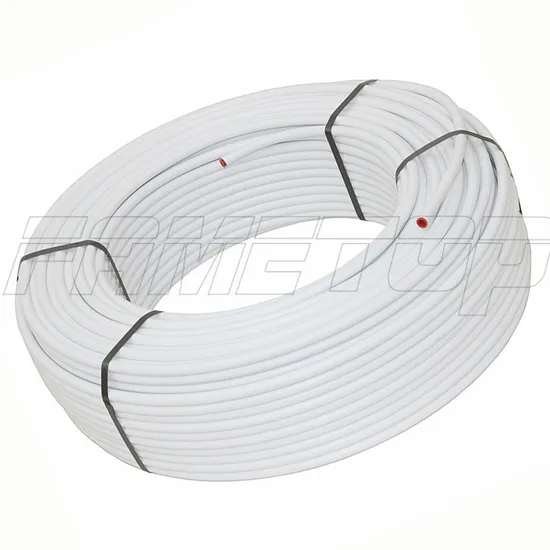

Overlap/Butt-welded Pex-Al-Pex Pipe For Water And Heating
Standard:ISO21003-2;
With CE certification;
Color:White,Red,Blue,Orange or as customerized;
Length:100m/200m or as customerized;
Packing:By carton,Kraft Paper,or White Film;
Working temperarure: Max 95ºC
Working pressure:10bars;
Service life: Over 50 years;
APPLICAITON:
1) Hot water and cold water pipe for production and domestic use;
2) Heating pipe, pipes used for heating installation on floor and wall, snow-melting devices for buildings in northern, park, airport, and so on;
3) Pipe used for solar energy water heater;
4) Coal gas and natural gas pipe;
5) Drinking water within a certain district, pipe used for reclaimed water project;
6) Piped used for central air conditioner, fan coil;
7) Industrial pipes used for oil transportation and cooling fluid;
8) Pipes used for sleeve of wire or cable;
9) Pipe/tube used for oxygen input in hospital;
Main Characteristics:
Thermal conductivity 0.45w/(m.k.);
Coefficient of heat expansion 0.025mm/(m.k);
Bend radius ≥5D(D means outside diameter);
Oxygen-permeability:0 ;
Coefficient of heat roughness 0.0004mm;
Static-free,longevity
SPECIFICATION

Norminal(mm)		14	16	18	20	25	26	32
Outer(mm)		14.0	16.0	18.0	20.0	25.0	26.0	32.0
Inner(mm)		10.0	12.0	14.0	16.0	20.0	20.0	26.0
Thickness(mm)	Wall	2.0	2.0	2.0	2.0	2.5	3.0	3.0
	Alu	0.19	0.21	0.23	0.25	0.25	0.25	0.3
Unit Weight(g/m)		100	110	120	140	210	230	310
Standard Length(m/coil)		100/200	100/200	100/200	100/200	50	50	50
CBM/Coil		0.04/0.06	0.044/0.083	0.064/0.104	0.109/0.064	0.101	0.11	0.125
Color		White/Red/Yellow/Blue/Black/or as customerized
Remarks:Aluminum thickness can be made as customerized

---
