Basic Info.
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.1~0.5m³
Max Digging Height
4960mm
Max Dumping Height
3560mm
Transport Package
Whole Machine Transportation
Production Capacity
1000 Pieces/Year
Product Description
Product Description

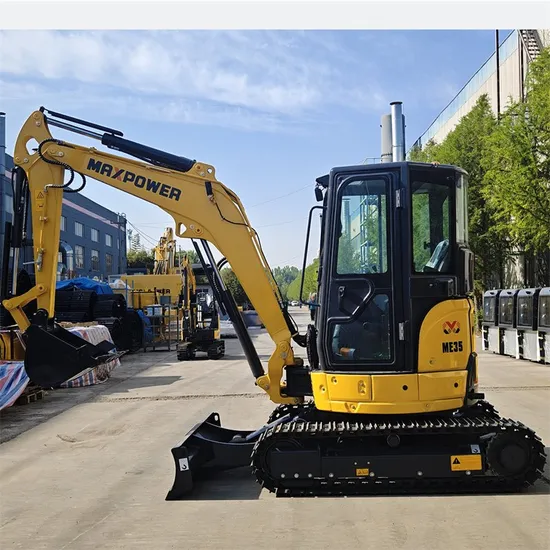

ME35.9 Excavator flexible structure, fast action and comfortable operation; Quick connect is optional, easy to change different tools.
ME35.9 Excavator flexible structure, fast action and comfortable operation;
Load sensing hydraulic system: precise control of different actuators, good controllability and high work efficiency.
Product Parameters
| Model | ME35.9 |
| Operating weight | 3700KG |
| Volume of Bucket | 0.12m3 |
| Engine model | Yangdong YD4C50GA |
| Power | 36.8Kw |
| Fuel trank | 80L |
| Travel speed | 4.6/2.8Km/h |
| Swing speed | 11.5r/min |
| Bucket digging force | 24.2KN |
| Hydraulic pump model | Load Sensing Pump |
| Maximum flow | 95L/min |
| Pressure | 20Mpa |
| Hydraulic oil tank | 60L |
| Overall length | 5453mm |
| Overall width | 1530mm |
| Machine height(Boom head) | 1794mm |
| Total height(to operators cabtop) | 2408mm |
| Ground clear ance(bob-weight) | 605mm |
| Min.ground clearance | 208mm |
| Rear-end seing radium | 1538mm |
| Table width | 1530mm |
| Max.digging height | 5172mm |
| Max.dumping height | 3585mm |
| Max.digging depth | 3735mm |
| Max.digging depth | 2409mm |
| Max.digging reach | 5856mm |
Company Profile
Jining Maxpower Machinery Co., Ltd
We are located in domestic construction machinery manufacturing base, Jining High-tech Zone, with outstanding manufacturing capacity, obvious advantages of supporting resources and abundant human resources.
The company insist the development strategy of "High-end, Large-scale, Differential", and achieves the quality products, we have established a product sales network over the world to provide users with different marketing requirement. Today, MAXPOWER enjoys the important share in domestic and overseas market.
Our Advantages
Best chinese excavator High-quality products and high-quality services make the products of the Maxpower brand sell well all over the country, and are exported to 50 countries and regions such as Oceania, the Middle East, Africa, Eastern Europe, Southeast Asia, and South America.
FAQ
Q: How long is the machine warranty time?
A: One year.
Q: Are you original manufacturer?
A: Yes. We are manufacturer of construction machines.
Q: What is the terms of payment?
A: :Normally, we accept 30% advance, 70% should be paid after finished the machine, L/C at sight.
Q: What is the delivery time ?
A: Generally we need 3-5 days to produce the machine after prepayment ,if you are urgent , 2 days will be ok ,then send to port.
Q: How should we do if the machine broken ?
A: You can take a video to us and our technicians will analyze the cause of the problem based on the video.
Q: How should we do if parts are broken ?
A: We advise customers to purchase some conventional accessories based on their country and environment. If other parts broke ,we will send to you by sea or by air.
Q: Can the machine use the trademark of our own company?
A: Yes ,sir ,of course.
>>
