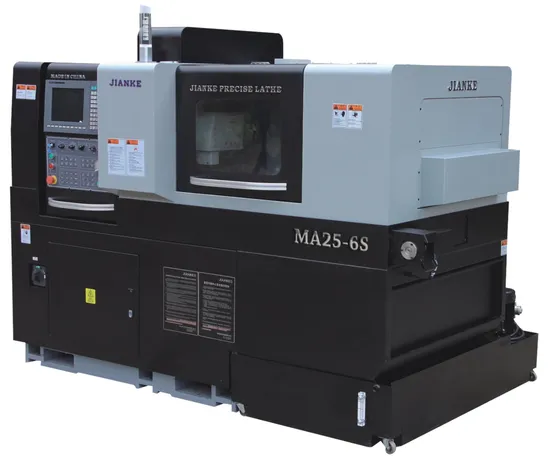

Jianke Ma25-6s 25mm High Precision Swiss Type CNC Lathe Sliding Head Swiss Lathe Machine for Metal

Product Description

Product Description

Swiss type CNC lathe double spindle 6 axis model MA25-6S	Main spindle & Sub spindle
·excellent performance·ability powerful·Operate flexbile	·Main and sub spindle C axis stantard configration,complete functions ·Excellent performance multi types of tools coordinate reasonably,multi tool frame rasonably option ·rotary guide sleeve,no guide bush freely option, save material high benefit.

Detailed Photos

Product Parameters

Double Spindle Swiss CNC Lathe MA25-6S
System	Taiwan SYNTEC	Syntec210TB-A
	Control channels	Dual channel
	Minimum setting unit	0.001mm
Machining Ability	Max processing diameter	25 mm
	Maximum single feeding length	Rotary guide bush	195mm
		Without guide bush	1:2.5D(Dia:Length)
	Main spindle max drilling Dia	axial (main spindle)	Φ10mm
	Main spindle tapping Dia	axial	M8
	Rotary tools max drilling Dia	radial	Φ8mm
	Rotary tools max tapping Dia	radial	M6
	Sub spindle max drilling Dia	Axial (sub spindle)	Φ8mm
	Sub spindle max tapping Dia	axial	M6
Tools	Tool base arrangement	Upper row tool base
	Main spindle O.D. tools	6 pieces	1*16X16mm+5*12X12
	Main spindle side rotary live tools	4 pieces	2*ER11+2*ER16
	Main spindle end face fixed tool	4 pieces	ER11/ER16
	Sub spindle end face fixed tool	4 pieces	ER11/ER16
	Sub spindle end face rotary tools	3 pieces	ER11/ER16
	Sub spindle side rotary tools	4 pieces	ER11/ER16
	Sub spindle O.D. turning tools	2 pieces	12X12mm
Spindles	Main/Sub spindle type	Internal oil cooling electric spindle
	Main/Sub spindle speed	10000rpm/min
	Main/Sub spindle indexing	0.001°
	Main/Sub spindle through hole Dia	26mm
	Main/Sub spindle height	1018.5mm
Motors	Main spindle power(Rated/Max)	2.5kw/3.7kw
	Sub spindle power(Rated/Max)	2.5kw/3.7kw
	Main/Sub spindle rotary tools motor power	1.1kw
	Main spindle side rotary tools speed	ER11*2 pieces	10000rpm/min
		ER16*2 pieces	6000rpm/min
	Sub spindle rotary tools speed	Side rotary tools	6000rpm/min
		End face rotary tools	6500rpm/min
	Moving axis	6 axis	X1,Y1,Z1,X2,Y2,Z2
	Rapid feeding speed	X1,Y2	24m/min
		Y1,Z1,X2,Z2	32m/min
	Motor power of moving axis	1.0kw
Others	Parts collector	Short parts	Belt conveyor to collect parts
		Long parts	rear ejection from sub spindle
	Power capacity	15kw
	Air pressure	Above 0.4MPa
	Capacity of machining oil tank	250L
	Lathe size	2.4m×1.4m×1.7m
	Lathe weight	3050KG

Certifications

Packaging & Shipping

Company Profile
Founded in 1999, Jianke Machinery Co., Ltd. is one of the earliest domestic enterprises that involve in the independent research and development of Swiss type precision CNC lathe. The company covers an area of 30,000 square meters. At present, Nanjing Jianke Machinery Co., Ltd. has gradually developed into a machinery manufacturing enterprise integrating R&D, design, manufacturing, sales, installation, service, and imp&exp.
