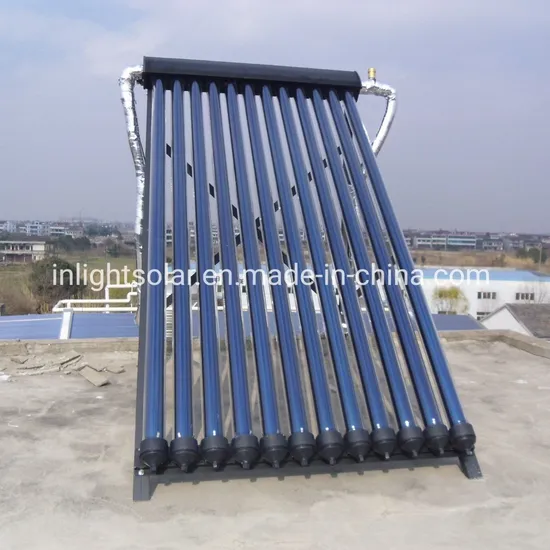

10tubes-30tubes High Pressure Heat Pipe Solar Collector for Slope and Flat Roof

Product Description

Product Description Heat pipe Solar Collector Features:
1. Especially for large-scale hot water heating system, supplying hot water for apartments, hotels, restaurants, schools, hospitals, factories, swimming pools, and other places requiring large amount hot water use.
2. Very economical and of good performance for a 15 years lifespan
3. Adaptable to different architecture structure installation
4. Anti-freezing system with good insulation to the pipelines
5. Easy installation and connection of solar collectors and pipelines
6. Able to be disigned to work with axuiliary heating devices to assist solar water heating.
Our heat pipe solar collectors have widly tested in Swizerland SPF lab. And certified with Solar Keymark and SRCC.
The heat pipe solar collector consists of mainly heat pipe vacuum tubes, pressurized manifold, suppoting bracket.
1) Solar heat pipe and its inner antifreezing midium for solar thermal absorbing and transmission, with a quick start and heat transmission and exchange
2) The direct-flow copper header is pressurized with its inner mechanically closed, no water or medium goes through glass tubes, no freeze to break glass tubes, able to serve in extremely cold weather
3) Heat pipe tip is inserted into a closed copper cannula which is welded into the copper header, withdrawal one or several tubes will not drain the whole system
4) Aluminum alloy as bracket with super performance in chemical resistance, universal bracket suitable for slope and flat roof and wall installation
5) Modularized collector, arbitrary combination with any architectural structure, adaptable to either slope roof or flat ground or upright walls, almost maintenance free collector
Product Parameters

Heat Pipe Vacuum Tube	Tube Size	Φ58×1800MM
	Tube Nos.	12 / 15 / 18 / 20 / 24 / 25/ 30
	Material	Three-target vacuum tube, antifreezing copper heat pipe, aluminum absorber fin
	Coating	Cu/SS-ALN(H)/SS-ALN(L)/ALN
Pressurized Manifold	Header	High-quality copper Φ35*1.0mm, 12 bar pressure test
	Casing	High-quality black/ gray aluminum alloy 2mm
	Insulation	Moulded high-density fibre glass wool 55m
Bracket	Black/ gray Aluminum alloy 1.8~2.0mm
Accessories	Stainless bolts & nuts, anti-aging rubber seal and tube holder
Test Pressure	12 bar
Tilt Angle	20°~ 90° (-5° upright or level shift)
Hail Resistance	Φ25mm in diameter
Anti-freezing	≤ (-)40°C

Detailed Photos

---
