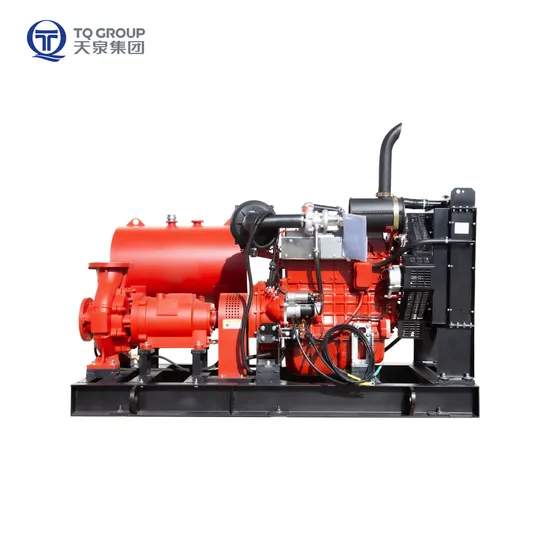

3000rpm High Speed Diesel Engine Fire Pump for Firefighting System

US$1,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
XBC12.0/130G-TQW
Max.Head
110m-150m
Max.Capacity
>400 L/min
Driving Type
Diesel Engine
Material
Cast Iron
Structure
Single-stage Pump
Assembly
Liquid Pumps
Power
Diesel Engine
Start Up
Electric Pump
Type
Blade Pump
Application
Firefighting
Industry
Building and Construction
Media
Clean Water
Performance
Automatic Pump
Theory
Centrifugal Pump
Impeller Material
Bronze/Brass/ Stainless Steel
Certification
Cccf
Pump Structure
Horziontal Single Stage End Suction
Diesel Engine Brand
China
Diesel Engine Speed
3000rpm
Diesel Engine Cooling Way
Water Cooled
Coupled
Flexible Coupled
Transport Package
Plywood Case
Trademark
tqpumps
Origin
China
HS Code
8413709990
Production Capacity
1000 Units/Year

Packaging & Delivery

Package Size
2500.00cm * 1500.00cm * 1800.00cm
Package Gross Weight
3000.000kg

Product Description

Product Description
XBC-TQW is a diesel engine-driven horizontal single-stage single-suction fire pump. It covers a wide range of flow rates and head pressures. The product includes a diesel engine, water pump, common base, fuel tank, maintenance-free battery, and on-site control cabinet. The diesel engine uses high-quality 3000 RPM or 1500 RPM high-speed diesel engines and is connected to the pump side with an elastic pin coupling. The pump is a single-stage single-suction foot-mounted end suction pump. For the 1500 RPM diesel engine, we use our exclusive invention of a speed increaser to configure a 3000 RPM pump head, which is novel in structure and allows the diesel engine and electric motor pump heads to use the same model, making maintenance easier for customers. The 3000 RPM diesel engine uses a domestic high-quality diesel engine, with a maximum power of up to 132kw. The water pump impeller is made of corrosion-resistant stainless steel or brass material, and the pump case is made of ductile iron for high-pressure usage. The product is suitable for supplying water to industrial and factory firefighting systems or emergency firefighting systems.
Model Meaning
working condition
Altitude: not exceeding 1000 meters
Ambient Temperature: 5-45C
Relative Humidity: 9-95%
Product Structural Drawing
Detailed Photos
Fuel Tank with oiler
Fuel Tank Volume (L)
Diesel Engine Power(kW) 45 55 75 90 100 115 132 155 220
Fuel Tank (L) 50 100 150 150 200 200 250 300 400
controller
Remote control cabinet Standard Function
Start and Stop manual/ automatic(pressure signal control,fire-fighting linkage control)
resever remote control port
emergency stop button
Data Monitoring Speed/ Voltage/ Current/ Oil Temperature/Water temperature
Battery Charge Manual/automatic battery charging
Diesel Engine production Low oil pressure protection, high water temperature protection, overspeed protection, underspeed protection
including speed sensor, water temperature sensor, oil pressure sensor.
Product Parameters
Item No. Model Discharge Dia. Flow
(L/S)		 Head
(m)		 Shaft Power
(kW)		 NPSHr
(M)		 Speed
(r/min)		 Engine brand Engine Power
1 XBC4.0/15G-TQW 80 15 40 9.6 3.0 3000 Olin 490D1 45kw
2 XBC5.0/15G-TQW 80 15 50 11.9 3.0 3000 Olin 490D1 45kw
3 XBC6.0/15G-TQW 80 15 60 15.8 3.0 3000 Olin 490D1 45kw
4 XBC7.0/15G-TQW 80 15 70 18.1 3.0 3000 Olin 490D1 45kw
5 XBC8.0/15G-TQW 80 15 80 20.2 3.0 3000 Olin 490D1 45kw
6 XBC9.0/15G-TQW 80 15 90 27.0 3.0 3000 Olin 490D1 45kw
7 XBC10.0/15G-TQW 80 15 100 30.0 3.0 3000 Olin 490D1 45kw
8 XBC11.0/15G-TQW 80 15 110 32.4 3.0 3000 Olin 4JA1-MG 55kw
9 XBC12.0/15G-TQW 80 15 120 35.3 3.0 3000 Olin 4JA1-MG 55kw
10 XBC4.0/20G-TQW 100 20 40 12.2 4.0 3000 Olin 490D1 45kw
11 XBC5.0/20G-TQW 100 20 50 15.1 4.0 3000 Olin 490D1 45kw
12 XBC6.0/20G-TQW 100 20 60 21.0 4.0 3000 Olin 490D1 45kw
13 XBC7.0/20G-TQW 100 20 70 23.7 4.0 3000 Olin 490D1 45kw
14 XBC8.0/20G-TQW 100 20 80 26.6 4.0 3000 Olin 490D1 45kw
15 XBC9.0/20G-TQW 100 20 90 34.6 4.0 3000 Olin 4JA1-MG 55kw
16 XBC10.0/20G-TQW 100 20 100 37.7 4.0 3000 Olin 4JA1-MG 55kw
17 XBC11.0/20G-TQW 100 20 110 41.5 4.0 3000 Olin 4JA1-WZG 75kw
18 XBC12.0/20G-TQW 100 20 120 44.4 4.0 3000 Olin 4JA1-WZG 75kw
19 XBC5.0/25G-TQW 100 25 50 18.4 4.0 3000 Olin 490D1 45kw
20 XBC6.0/25G-TQW 100 25 60 24.1 4.0 3000 Olin 490D1 45kw
21 XBC7.0/25G-TQW 100 25 70 27.7 4.0 3000 Olin 490D1 45kw
22 XBC8.0/25G-TQW 100 25 80 31.4 4.0 3000 Olin 490D1 45kw
23 XBC9.0/25G-TQW 100 25 90 38.1 4.0 3000 Olin 4JA1-MG 55kw
24 XBC10.0/25G-TQW 100 25 100 42.3 4.0 3000 Olin 4JA1-WZG 75kw
25 XBC11.0/25G-TQW 100 25 110 45.3 4.0 3000 Olin 4JA1-WZG 75kw
26 XBC12.0/25G-TQW 100 25 120 49.1 4.0 3000 Olin 4JA1-WZG 75kw
27 XBC5.0/30G-TQW 100 30 50 22.0 4.0 3000 Olin 490D1 45kw
28 XBC6.0/30G-TQW 100 30 60 29.4 4.0 3000 Olin 490D1 45kw
29 XBC7.0/30G-TQW 100 30 70 33.8 4.0 3000 Olin 4JA1-MG 55kw
30 XBC8.0/30G-TQW 100 30 80 38.4 4.0 3000 Olin 4JA1-MG 55kw
31 XBC9.0/30G-TQW 100 30 90 42.7 4.0 3000 Olin 4JA1-WZG 75kw
32 XBC10.0/30G-TQW 100 30 100 46.7 4.0 3000 Olin 4JA1-WZG 75kw
33 XBC11.0/30G-TQW 100 30 110 50.6 4.0 3000 Olin 4JA1-WZG 75kw
34 XBC12.0/30G-TQW 100 30 120 54.8 4.0 3000 Olin 4JA1-MLG 90kw
36 XBC6.0/35G-TQW 125 35 60 36.1 5.0 3000 Olin 4JA1-MG 55kw
37 XBC7.0/35G-TQW 125 35 70 40.7 5.0 3000 Olin 4JA1-WZG 75kw
38 XBC8.0/35G-TQW 125 35 80 45.8 5.0 3000 Olin 4JA1-WZG 75kw
39 XBC9.0/35G-TQW 125 35 90 61.8 5.0 3000 Olin 4JA1-MLG 90kw
40 XBC10.0/35G-TQW 125 35 100 67.3 5.0 3000 Olin 4BD-ZL 100kw
41 XBC11.0/35G-TQW 125 35 110 72.6 5.0 3000 Olin 6TW-ZG1 115kw
42 XBC12.0/35G-TQW 125 35 120 77.7 5.0 3000 Olin 6TW-ZG1 115kw
43 XBC5.0/40G-TQW 125 40 50 27.3 5.5 3000 Olin 490D1 45kw
44 XBC6.0/40G-TQW 125 40 60 35.7 5.0 3000 Olin 4JA1-MG 55kw
45 XBC7.0/40G-TQW 125 40 70 41.0 5.0 3000 Olin 4JA1-WZG 75kw
46 XBC8.0/40G-TQW 125 40 80 46.2 5.0 3000 Olin 4JA1-WZG 75kw
47 XBC9.0/40G-TQW 125 40 90 66.6 5.0 3000 Olin 4BD-ZL 100kw
48 XBC10.0/40G-TQW 125 40 100 72.7 5.0 3000 Olin 6TW-ZG1 115kw
49 XBC11.0/40G-TQW 125 40 110 78.5 5.0 3000 Olin 6TW-ZG1 115kw
50 XBC12.0/40G-TQW 125 40 120 84.1 5.0 3000 Olin 6TW-Z 132kw
51 XBC5.0/45G-TQW 125 45 50 29.8 5.5 3000 Olin 490D1 45kw
52 XBC6.0/45G-TQW 125 45 60 38.4 5.0 3000 Olin 4JA1-MG 55kw
53 XBC7.0/45G-TQW 125 45 70 44.8 5.0 3000 Olin 4JA1-WZG 75kw
54 XBC8.0/45G-TQW 125 45 80 50.5 5.0 3000 Olin 4JA1-WZG 75kw
55 XBC9.0/45G-TQW 125 45 90 72.2 5.0 3000 Olin 6TW-ZG1 115kw
56 XBC10.0/45G-TQW 125 45 100 78.8 5.0 3000 Olin 6TW-ZG1 115kw
57 XBC11.0/45G-TQW 125 45 110 85.2 5.0 3000 Olin 6TW-Z 132kw
58 XBC12.0/45G-TQW 125 45 120 91.3 5.0 3000 Olin 6TW-Z 132kw
59 XBC5.0/50G-TQW 150 50 50 36.1 4.5 3000 Olin 4JA1-MG 55kw
60 XBC6.0/50G-TQW 150 50 60 42.7 4.5 3000 Olin 4JA1-WZG 75kw
61 XBC7.0/50G-TQW 150 50 70 49.1 4.5 3000 Olin 4JA1-WZG 75kw
62 XBC8.0/50G-TQW 150 50 80 55.3 4.5 3000 Olin 4JA1-MLG 90kw
63 XBC9.0/50G-TQW 150 50 90 69.0 4.5 3000 Olin 4BD-ZL 100kw
64 XBC10.0/50G-TQW 150 50 100 75.5 4.5 3000 Olin 6TW-ZG1 115kw
65 XBC11.0/50G-TQW 150 50 110 81.8 4.5 3000 Olin 6TW-Z 132kw
66 XBC12.0/50G-TQW 150 50 120 87.9 4.5 3000 Olin 6TW-Z 132kw
67 XBC5.0/55G-TQW 150 55 50 38.0 4.5 3000 Olin 4JA1-MG 55kw
68 XBC6.0/55G-TQW 150 55 60 45.6 4.5 3000 Olin 4JA1-WZG 75kw
69 XBC7.0/55G-TQW 150 55 70 51.7 4.5 3000 Olin 4JA1-WZG 75kw
70 XBC8.0/55G-TQW 150 55 80 59.1 4.5 3000 Olin 4JA1-MLG 90kw
71 XBC9.0/55G-TQW 150 55 90 74.7 4.5 3000 Olin 6TW-ZG1 115kw
72 XBC10.0/55G-TQW 150 55 100 81.8 4.5 3000 Olin 6TW-Z 132kw
73 XBC11.0/55G-TQW 150 55 110 88.6 4.5 3000 Olin 6TW-Z 132kw
74 XBC12.0/55G-TQW 150 55 120 95.9 4.5 3000 Olin 6TW-ZL 150kw
75 XBC5.0/60G-TQW 150 60 50 41.5 4.5 3000 Olin 4JA1-WZG 75kw
76 XBC6.0/60G-TQW 200 60 60 57.0 3.0 3000 Olin 4JA1-MLG 90kw
77 XBC7.0/60G-TQW 200 60 70 65.4 3.0 3000 Olin 4BD-ZL 100kw
78 XBC8.0/60G-TQW 150 60 80 62.8 4.5 3000 Olin 4JA1-MLG 90kw
79 XBC9.0/60G-TQW 150 60 90 82.8 4.5 3000 Olin 6TW-Z 132kw
83 XBC6.0/70G-TQW 200 70 60 71.0 3.0 3000 Olin 6TW-ZG1 115kw
84 XBC7.0/70G-TQW 200 70 70 81.5 3.0 3000 Olin 6TW-Z 132kw
85 XBC8.0/70G-TQW 200 70 80 91.6 3.0 3000 Olin 6TW-Z 132kw
90 XBC6.0/80G-TQW 200 80 60 72.4 3.0 3000 Olin 6TW-ZG1 115kw
91 XBC7.0/80G-TQW 200 80 70 83.2 3.0 3000 Olin 6TW-Z 132kw
92 XBC8.0/80G-TQW 200 80 80 93.7 3.0 3000 Olin 6TW-ZL 150kw
97 XBC6.0/90G-TQW 200 90 60 79.1 3.0 3000 Olin 6TW-ZG1 115kw
98 XBC7.0/90G-TQW 200 90 70 89.6 3.0 3000 Olin 6TW-Z 132kw
