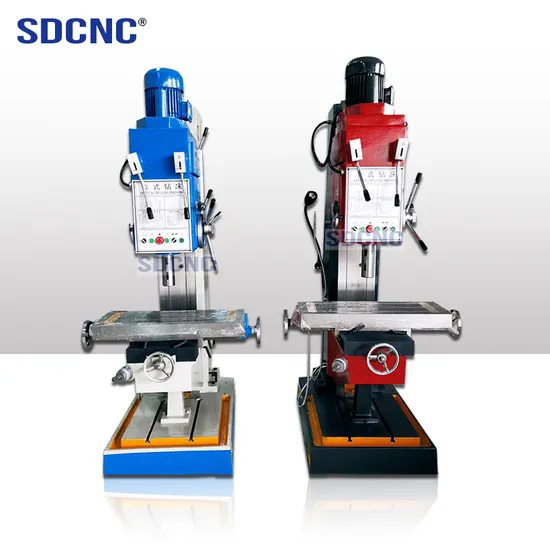

SDCNC Z5125 Taladro Magnetic Drill Vertical Milling Machine CNC Vertical Borehole Drilling Machine

Product Description

Product description:
1.This vertical drilling machine is universal type machine tool. This machine is suitable for drilling, reaming, milling,
drilling, boring, tapping countersunk hole etc.. Automatic reverse feed spindle tapping and fretting, for blind and deep
hole is very convenient. Widely used in machinery manufacturing, workshop production and construction processing,
etc..
2.This machine tool has the advantages of high efficiency, good rigidity, high precision, low noise, wide speed range,
high speed operation, novel appearance, convenient maintenance and so on.
COMPANY PROFILE
Shandong Shansu CNC Machine Tool Co., Ltd. is located in the traffic developed, economic prosperity of China's
Shandong Tengzhou City, is a professional engaged in CNC machine tool development and machinery manufacturing manufacturers. The company with strong technical force, high quality and good reputation to win the trust of foreign
trade users. Mainly produces CNC machine tool equipment (CNC lathe, machining center horizontal machining center,
vertical machining center, CNC vertical lathe, CNC pipe thread lathe, CNC milling machine, CNC drilling machine,
CNC slotting machine, CNC sawing machine and other CNC products) ordinary lathe, milling machine series, shaper
machine, metal sawing machine, slotting machine series, radial drilling machine, vertical drill Bed and other machine t
ool Product Parameters

Product main technical specifications:

Specifications	Z5125
Max drilling dia.	25mm
Max feed resistance	9000N
Max. spindle allowable torque	160N.m
Spindle taper	Morse No. 3
Distance from spindle axis to column guide way	280mm
Spindle travel	200mm
Spindle box travel	200mm
Spindle speed	50~2000r/min(9)
The amount of feed(mm/rev)	0.056-1.80mm/r (9)
Working table stroke	310mm
Working table surface size	400×550mm
Distance from spindle nose to table surface	710mm
Main motor power	2.2kw
Cooling pump flow	25L/min
Overall dimension	980*807*2302mm
N/W	1200kg

---
