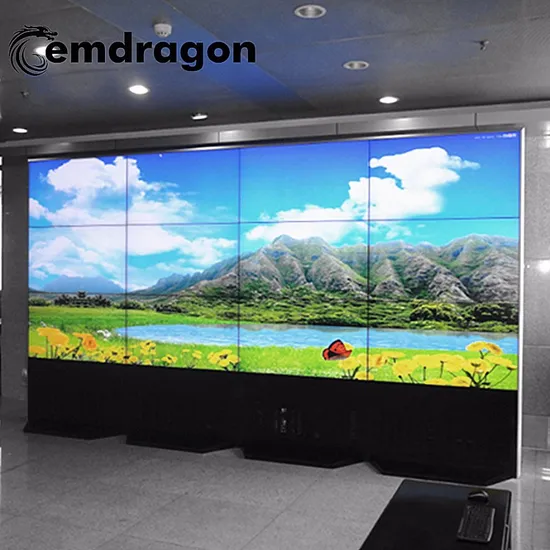

Shopping Mall Fashion Shop 46 Inch Video Wall 3X3 TV Wall LG/Samsung Panel 1.8mm 3.5mm 5.5mm Slim Bezel LCD Video Wall

Product Description

Shopping Mall Fashion Shop 46 Inch Video Wall 3x3 TV Wall LG/Samsung Panel 1.8mm 3.5mm 5.5mm Slim Bezel LCD Video Wall
Support OEM / ODM
Infrared TOUCH ( optional )
46 / 49 / 50 / 55 / 65 inch Screen can support
Stand-alone / Android / windows version optional
Alex
Phone no :+86 17727224421

use
Widely use on Airport, station, catering industry, entertainment industry, medical institution, golf course, supermarket, exhibition, stadium and gymnasium, financial industry, organ and enterprise, building adverting and billboard advertising, subway, hotel, rail way station, bus station, lift, bank, commercial center, wedding photograph, large exhibition, mobile show, chain-store and etc.

Screen configuration	Motherboard configuration
Screen size: 46" Resolution: 3840 (RGBW) × 2160 [UHD] or 1920 (RGB) × 1080 [FHD] Display size: 1209.6 × 680.4 mm (H × V) Visible size: 1214.6 × 685.4 mm (H × V) Brightness (cd/m2): 500 (Typ.) Best angle: full view Viewing angle: 89/89/89/89 (Min.) (CR ≥ 10) Pitch: 0.630mm (H) x 0.630mm (W) Number of colors: 16.7M/1.07B, 68% [CIE1931] Screen weight: 12.5/13.0Kgs (Typ./Max.) Refresh rate: 60Hz Signal system: V-by-One 8 lane , terminal , 51 pins Supply voltage: 12.0V (Typ.) Maximum rating: Storage temperature: -20 ~ 60 °C Operating temperature: 0 ~ 50 °C Screen type: LCD module, a-Si TFT-LCD Pixel configuration: RGBW vertical strip Appearance size: 1233.4 × 706.8 × 15.4 (H × V × D) Surface treatment: matte (Haze 1%), Hard coating (3H) Contrast ratio: 1000 : 1 (Typ.) [Transmission] Optical mode IPS, normally black display, transmissive Response speed: 8 (Typ.) (G to G) ms Backlight type: WLED, 50K hours, no drive	CPU: RK3188, quad-core, frequency 1.6GHz Memory: 1 / 8G (optional) Built-in memory: EMMC FLASH 8G (optional) Built-in ROM: 2KB EEPROM Decoding resolution: up to 1080P Operating system: Android 4.4 above Play mode: support for the cycle, timing, spots and other playback modes Network support: 3G, Ethernet, WiFi support, wireless peripherals expansion Video playback: support wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 and so on Picture format: support BMP, JPEG, PNG, GIF USB2.0 interface: 3 USB HOST, 3 USB socket Serial port: 3 serial socket TVIn: CVBS input 2, support N, P standard GPS: built-in GPS (optional) WIFI, BT: built-in WIFI, BT (optional) Ethernet: 1, 10M / 100M adaptive Ethernet Timing switch machine: support
Infrared touch
Material: tempered glass Glass thickness: 3mm, 4mm, 6mm Surface abrasion strength: strong, determined by the glass surface Transparency: ≥95%, up to 100% (no glass) Homogeneity: good
Touch the parameter	Electrical parameters
The number of times the theory is determined by the degree of glass wear Design life: more than 5 years Touch the fastest response speed: 6ms Touch the average reaction speed: 8ms	Working voltage: 4.5 ~ 5.5Vdc Working current: ≤120mA Power: ≤ 900mW

Company Information

Welcome To Gemdragon Display Technology We are a manufacturer of Advertising Display with well-equipped testing equipment and strong technical force.With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in many industries.

Packaging & Shipping

PACKAGE: Standard export carton packing.
DELIVERY TIME: 3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.

Certifications

Contact

Alex
Phone no :+86 17727224421

FAQ

Q1: Are you a factory or trading company? We are a OEM / ODM factory.
Q2: How long is the warranty time for your products? Our officially promised warranty time is one whole year after delivery at best.
Q3: I haven't done business with you guys before,how can i trust your company? Our company has been in ******.com for almost 7 years,which is longer than most of our fellow suppliers,we've been golden suppliers for years.what's more,we've got quite a lot authority certificates,for example,CE,UL,RoHS,FCC ISO9001, BV, ****** onsite check certificate. I hope those above will be persuasive enough.Our Trade Assurance Limit is US $736356.7, and it is still going up.
Q4: what's the shipment terms and delivery time of your company? Well, they depends on the quantity of your order.As you know ,we need time to manufacture the machines.but mostly ,the shipment time is 3-8 working days after delivery.For Delivery way, for Sample and Bulk order < 100KG, we will kindly suggest Express and Air freight, when Air freight and Sea shipping for Bulk order >100KG.As for detailed cost, it depends on your final order.
Q5: what brand of screen are you using? Samsung and LG screenare normally used for the digital signages and video walls, while customized screen is also supported.
Q7: I would like to ask you if it's possible to have my logo on the product. We hope you know that our company Gendragon perfectly support customized logo service. But, we also hope you know that it's an extraservice,so a little bit extra service fee is needed.
Q8: What is the minimum order? Yes, our company mainly deals with wholesale deals,but if you insist buying one set,or you just need one set,we would be very likely to make the MOQ as 1 set for you though, except for some particularly small size digital photo frames,like 7 inch.Yes, our company mainly deals with wholesale deals,but if you insist buying one set,or you just need one set,we would be very likely to make the MOQ as 1 set for you though, except for some particularly small size digital photo frames,like 7 inch.

---
