Chansin Automatic Tapping Machine Cx-4508

Product Description

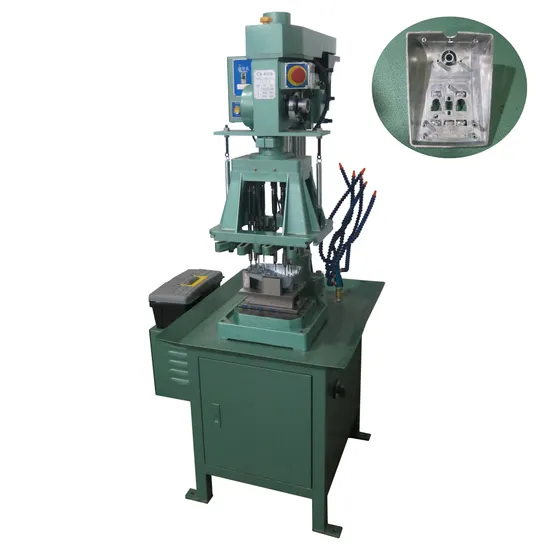

CHANSIN Automatic tapping machine CX-4508
* Thread Pitch Gear Type Tapping machine , 100% pass go-and-not-go-gauge
* Feeding and unloading manually
* Easy to operate and very fast
* Customized multi spindle tapping head, tapping 9 holes of different depth simultaneously
* Customized clamp fixture, easy feeding and unloading
* Machine base with water/oil cooling system

Standard Type Drilling Machine

Drilling Machine	CX-8510	CX-13016	CX-15035
Maximum Drilling Dia.	10mm	16mm	35mm
Spindle Sleeve Dia.	50mm	60mm	90mm
Spindle Stroke	85mm	130mm	150mm
Spindle to Column Distance	200mm	210mm	250mm
Spindle Nose to Work Table	100-330mm	100-350mm	120-420mm
Spindle Tapper	JT6/ER20	JT6/ER25	MT4/Line Groove
Spindle Speed	1400/2800 rpm	1400/2000 rpm	1000/1400 rpm
Machine Head Travel	280mm	280mm	320mm
Motor Power	0.75kw	1.5kw	2.2kw
Electricity	380V/415/440V 3 Phase	380V/415/440V 3 Phase	380V/415/440V 3 Phase

Standard Type Tapping Machine

Tapping Machine	CX-4508	CX-6516	CX-6532
Spindle Stroke	45mm	65mm	65mm
Tapping Range	1-8mm	2-16mm	5-32mm
Machine Head Travel	260mm	300mm	460mm
Spindle Nose to Work Table	90-350mm	100-350mm	100-600mm
Spindle Speed	50HZ:1340/760/420rpm 60HZ:1600/900/500rpm	50HZ:590/400/250rpm 60HZ:720/480/300rpm	50HZ:280/150/80rpm 60HZ:320/180/120rpm
Standard Gear Pitch(mm)	0.25,0.3,0.35,0.4,0.45,0.5,0.6,0.7,0.75, 0.8,1.0,1.25	0.4,0.45,0.5,0.7,0.75,0.8,1.0,1.25, 1.5,1.75,1.8,2.0,2.5	0.8,1.0,1.25,1.75,2.0,2.5,3.2,3.5
Standard Gear Pitch(inch)	16,18,20,24,28,32,40,44,48,56,64	10,11,12,14,16,18,19,20,24,28	8,9,10,11,12,14,16,19
Multi spindle Capacity	M2*16,M3*9,M4*5,M5*3,M6*2,M8*1	M4*13,M5*10,M6*7,M8*4,M10*3,M12*2,M16*1	M8*16,M10*10,M12*7,M14*6,M16*4, M18*3,M20*3,M32*1
Motor Power	0.75kw	1.5kw	2.2kw
Electricity	380V/415/440V 3 Phase	380V/415/440V 3 Phase	380V/415/440V 3 Phase

Non Standard Type / SPM Type Drilling and Tapping Machine
Drilling and Tapping Heads

CX-HD5-85 AIR/HYDRAULIC DRILLING HEAD		Maximum Drilling φ1-φ10mm Main Spindle Taper ER20/JT6 Main Spindle Travel 85mm Spindle Max Rotating Speed 1400 (r/min) Cylinder Area 21.6m2 Center Height 70±0.01 Motor 0.75KW Net Weight 38kg Using Hydraulic 20-30 kg/cm2 Size(L*W*H) 115*464*370mm
CX-HD6-130 HYDRAULIC DRILLING HEAD		Maximum Drilling φ1-φ16 mm Main Spindle Taper ER25/JT6 Main Spindle Travel 130mm Spindle Max Rotating Speed 1400 (r/min) Cylinder Area forward 37.1m2 backward 15.8m2 Center Height 70±0.01 Motor 1.5KW Net Weight 50kg Using Hydraulic 20-30 kg/cm2 Size(L*W*H) 160*719*417mm
CX-HD8-150 HYDRAULIC DRILLING HEAD		Maximum Drilling φ1-φ35mm Main Spindle Taper MT4/LINE GROOVE Main Spindle Travel 150mm Spindle Max Rotating Speed 1500 (r/min) Cylinder Area forward 71.2m2 backward 31.4m2 Center Height 90±0.01 Motor 1.5KW Net Weight 67kg Using Hydraulic 20-30 kg/cm2 Size(L*W*H) 280*860*470mm

Multi Spindle Device
Our engineers will design the multi spindle device according to your product's size and the holes distribution. It can be very small or very big. There are two types, fixed type and adjustable type. Fixed type multi spindle device, the spindles are fixed, can't be adjustable. Adjustable type multi spindle device, the spindles are adjustable, can be suitable for various kinds of products.
Vibrating Plate
We have our own vibrating plate work shop and we have experience on it more than 20 years.
Fixtures/Jigs
We are providing jigs/fixtures design service. All designs are based on easy control, safety and high efficiency .
Machined Samples
Our Customers
FAQ
1. Are you a manufacturer or trade company? -- Manufacturer
2. What is payment terms? -- 30% deposit, the balance will be paid before delivery
3. What is the warranty time ? -- One year warranty and life time maintenance.
4. Do you provide OEM service?-- Yes
5. Can you send engineers to serve overseas ? -- Yes, You are responsible for round-trip air tickets and accommodation of our engineers.
6. What is the loading port ? -- Shenzhen / Guangzhou port

---
