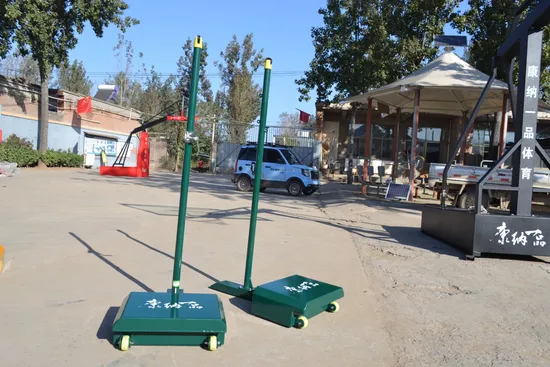

Heavy-Duty Movable Badminton Post for Durability

Product Description

Product Description

Specification	Details
Material	Constructed from 3mm thick steel plate
Construction	Bent and welded
Material	Steel tubes
Dimensions	φ42mm × 3mm
Total Product Weight	57 kg
Base Weight	24 kg
Counterweight	33 kg of sand or equivalent substitute
Standard Compliance	As per GB/T19851.13
Horizontal Force Resistance	Top end can withstand 200 N
Standard Required Torque	1.55 m (lever arm) × 200 N = 310 N·m
Horizontal Distance to Center of Gravity	0.6 m from the front end of the base
Actual Torque	0.6 m × 57 kg × 9.8 m/s² = 335 N·m (exceeds standard)
Stability	Ensures no movement or swinging of the base when the net height is tensioned between 1524 mm - 1550 mm
Type	High corrosion-resistant stainless steel screws
Purpose	To extend product life

Manufacturing Process:
1. Cutting: - Uses fully automatic laser cutting equipment for precision and consistency.
2. Welding: - Assembled using CO2 gas shielded welding, ensuring tight, solid, and aesthetically pleasing welds.
3. Surface Treatment: - Shot blasting with 0.8mm diameter shot for thorough rust removal and a fine surface, enhancing powder adhesion.
- Electrostatic powder coating process for strong adhesion, with a coating thickness of 90um - 150um, hardness of 2H, and a uniform, bright color that is weather-resistant and anti-aging.
4. Safety Features: - No hooks, pinch points, shear points, or clamping areas.

---
