US$2,800.00
|
1 Piece
(MOQ)
|
Basic Info.
Model NO.
ZX6350C/ZX6350D
Type
Worktable Milling Machine
Milling Cutter Type
Cylindrical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Certification
GS, CE, ISO 9001
Production Capacity
1000PCS/Year

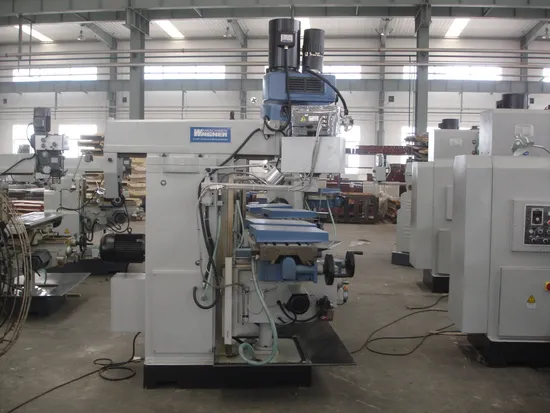

Product Description
The main performance characteristics:
1.Gear transmission for vertical/hozizontal milling head
2.ZX6350C :X axis auto feed,Y/Z axis manual feed
ZX6350D :X/Y axis auto feed,Z axis manual feed
3.Headstock swivel +/-45°
4.Guide way with sparking quenching
Product main technical parameters:
| Specifications | Units | ZX6350C | ZX6350D |
| Table size | mm | 1120x280 | 1120x280 |
| T Slot number/width/pitch | mm | 5/14/50 | 5/14/50 |
| Longitudinal travel | mm | 630 | 630 |
| Cross travel | mm | 280 | 240 |
| Vertical travel | mm | 430 | 430 |
| Vertical milling capacity | mm | 32 | 32 |
| Face milling capacity | mm | 100 | 120 |
| Drilling capacity | mm | 50 | 50 |
| Longitudinal feeds range | Mm/min | 24-720 | 15.1-266.5 ,6steps |
| Cross feeds range | Mm/min | - | 15.1-266.5 ,6steps |
| Vertical milling spindle travel | mm | 120 | 120 |
| Spindle nose to table surface | mm | 140-570 | 100-530 |
| Travel of movable arm | mm | 360 | 360 |
| Vertical milling spindle taper | | MT4 | MT4 |
| Horizontal milling spindle taper | | MT4 | MT4 |
| Vertical milling spindle speeds | R/min | 115-1750 ,8 steps | 115-1750 ,8 steps |
| Horizontal milling spindle speeds | R/min | 32-1320 ,12 steps | 32-1320 ,12 steps |
| Vertical milling motor | kw | 1.5/0.85 | 1.5/0.85 |
| Main motor | kw | 2.0/2.4 | 2.0/2.4 |
| Overall dimensions | mm | 1400x1300x2100 | 1400x1300x2100 |
| Net weight | Kg | 1300 | 1300 |
>>
