CNC Four Bearing Rene CNC Profile Grinder 730 Grinding Plane Arc Wave with Rollers with Discs

Product Description

Product Description

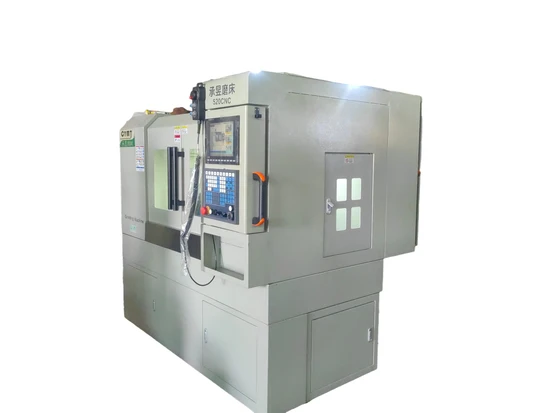

CYMT CNC Profile Grinding Machines Punching Bar Grinding Machines
CYMT- CNC Simplifies operating procedures
and improves the control and performance of CNC grinding machines.
Easy to learn, easy to master

	parameter		520CNC	730CNC
Travel	Table size (x*y)	mm	200×450	300×650
	X axis travel	mm	450	650
	Y axis travel	mm	200	300
	Max center of wheel to table	mm	400	400
	Maximum load	kg	100	200
Table	TTable T cell specification	mm×N	12×3	12×5
	Table speed	m/min	0-25	0-25
Y axis	Minimum feed	mm	0.0001	0.0001
	Single feed		0.0001~10	0.0001~10
	Fast moving speed	mm/min	0~5000	0~5000
Z axis	Minimum feed	mm	0.0001	0.0001
	Fast moving speed	mm/min	0~5000	0~5000
grinding	grinding wheel size max	mm	Φ180×Φ31.75×20	Φ180×Φ31.75×20
	grinding wheel speed	R.P.M	0~4500	0~4500
motor	spindle motor	W	3700	5500
	the Z axis motor	W	1700	1700
	the Y axis motor	W	750	1100
	the X axis motor	W	750	1100
	cooling motor	W	90	90
	Roller dresser motor (optional)	W	750	750
	Fourth axis motor	W	750	1100
Size	height of machine	m	1.8*1.8*1.9	2.2*2.0*2.0
	floor space	m	2.1*2.3*2.1	2.5*2.5*2.2
	weight(about)	kg	≈1600	≈2800

general picture	Maximum clamping diameter	mm	25	45
	Maximum perforation diameter of indexing head	mm	25	45
	Positioning and Repeat Positioning Accuracy≤	mm	0.003	0.003
	Transverse machining length (standard installation)	mm	150	300
	Vertical processing length (standard installation)	mm	60	160

Controller Functions and Features
CYMT-CNC Control System
Cheng Yu CYMT-CNC controller has many features and functions, equipped with powerful computing power, enhanced HMI function, so that users do not have to write programs, do not need to use the UG programming, you can complete the large and complex machining programs and complex grinding. It can be stopped in the middle of the process in order to change the processing parameters, and then continue processing will not start from the beginning, but from the current slot, so that the operator can quickly improve the processing parameters and enhance the efficiency.
Features
1. No matter what shape is made, it can be realized by a simple program that simply edits a tooth shape, with a graphic display function.
2. You can use the grinding wheel array to repair multiple repetitive shapes on one grinding wheel for cyclic use.
3. Automatic tool setting function, specify the diameter of the punch bar and YZ reference can be processed, the data can be seen at a glance.
4. Handwheel simulation trial processing function, can avoid beginners due to setting error crash.
5. Extra grinding and processing complementary function, processing tolerance is easy to grasp.
6. Scheduled grinding function, can be self-programmed multi-processing.
7. Preset a variety of processing types, direct selection of the type of programming, such as waist circle only need to enter the length and width of the size of the processing can be completed. Easily complete the function of following eccentricity, etc.
8. Grinding wheel memory function, the use of grinding wheel number used grinding wheel without knife can be used.
9. Processing technology can be changed at will, bringing unlimited possibilities for improving efficiency.



Company Profile
Cheng Yu Machinery Technology Co., Ltd. Was established in Dongguan City, Guangdong Province, is from Taiwan 30 years of grinding machine manufacturing experience, technology accumulation of a group of technical personnel.
With the rapid development of CNC machine tools, high-speed, high-precision, composite, intelligent, open, parallel drive, networking, green environmental protection has become the development trend and direction of CNC machine tools. Dongguan Chengyu Machinery Technology Co., Ltd. is a company specializing in the production and processing of machine tools, machine tool accessories and other products, uphold the "technology, innovation, reliable" business philosophy, "meticulous" quality policy, "to provide quality products, service customers. " We start from the study of customer's process, technology, type of production, requirements for quality. Design, production technology level as the support, and constantly improve the applicability of the development of products, expand the development of numerical control industry space, in product positioning, to achieve high automation, high precision, high quality, with a complete and scientific quality management system, first-class equipment and superb technology. In response to the market demand, Chengyu Machinery specializes in the design and manufacture of high-precision CNC surface grinding machine, CNC forming machine, four-axis punch grinder, vertical slider grinder and gantry rail grinder, as well as the design and manufacture of industrial robots, automated production lines and integrated applications. The following is a brief introduction of CNC grinding machine series products: I. HS series 618 / 250 / 3060 / 4080 / 40100 (servo type / hydraulic type) Processing capacity: Surface grinding, grooving Patented hydraulic control system (hydraulic type) Function: Equipped with grinding program: Flat surface, groove cutting. Feed mode: Front / back / left / right selectable, each grinding program memory feed mode. Grinding wheel overload, automatic shutdown. II. (servo type / hydraulic type) Processing capacity: Surface grinding, grooving, combined scheduling Patented hydraulic control system (hydraulic type) Function: Equipped with various grinding programs: Surface grinding, groove cutting, sole grinding, side grinding, unequal distance and unequal depth displacement grinding. Grinding wheel dressing: The bottom plane dressing, according to the set rough grinding / fine grinding dressing time and dressing amount, in the grinding cycle, automatic dressing, automatic compensation. Feed mode: Front / back / left / right selectable, each grinding program memory feed mode. Equidistant grooving, not equidistant unequal 3. Four-axis CNC grinding machines are divided into horizontal and vertical types Processing types: Arbitrary equal division, skipping tooth processing Waist circle, enter AB size Triangle fillet, enter inscribed circle size B and fillet size R Quadrilateral fillet, enter side length A and side length B and fillet size R Eccentric circle, enter eccentricity and starting and ending diameters Circle, enter starting and ending diameters Arc, enter arc size and rotation angle Step difference, rotation profile, etc. Processing schedule can be saved as processing file for easy next call
FAQ
1.What is your advance?
A:(1)We have ourselves factory. We accept the order if you want to customize products or design the product.
(2)Professional website platform and one-to-one online service.
(3)Various products in low MOQ and competitive prices.
(4)We have a strong R&D team and now we have 52 patents products.
(5)80% exporting products have been sold to Europe,America and Japan, high quality.
2. What's the minimum order quantity?
A: One set is acceptable
3. How about the payment Term?
A: We accept T/T,Western Union,LC
4. What's your port?
A: Shenzhen/Guangzhou.
5. Can we use our own shipping agent?
A: Yes,you can. we had cooperated with many forwarders.If you need,We can recommend some forwarders to you and you can compare the
price and the service.
6. Can we use our own LOGO or design for sticker?
A: Yes,you can contact with the salesman. And sent us more details about the LOGO or sticker.
7. How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to
quantity.
8. Do you provide samples? Is it free or extra ?
A: Yes, we could offer the sample for cheaper price but do not pay the cost of freight.

---
