1.Description
Electric heating frying machine can be divided into oil-water separation type and pure oil type according to different frying processes.
It can frying chicken nuggets, meat patties, chin chin, potato chips, banana chips, Samosa, fried onion rings, fried fish, Murukk, fried dough sticks, etc.
2.Detail Introduce

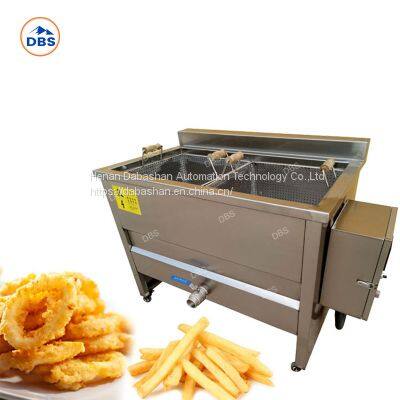

The whole is made of food grade 304 stainless steel with frying frame, electric control cabinet, heating tube (electric heating), slag discharge port and oil outlet, observation window, and universal wheel.
1）Name: Big size basket frying
Features: Fried baskets are easy to extract
2）Name: Control System
Function: It adopts button operation, which is easy to manipulate the fryer flexibly.
3）Name: Heating System
Function: Fast and uniform heating
4）Name: Residue outlet
Function: Used for discharging residue from frying process
5）Name: Glass window:
Function: Used to observe the amount of water injection, the amount of water injection should be half of the position of the glass window.
6）Name: Oil outlet
Function: Used for discharging frying oil
3. Advantage
1）Wide range of applications, can fry a variety of foods, multi-purpose machine.
2）A variety of heating methods can be selected, including electric heating, natural gas heating, liquefied gas heating, and diesel heating.
3）The temperate of oil and water can be both fully controlled by yourself, which can save 40% electricity and 50% oil, very energy-saving and cost-effective.
4）The automatic control system ensures that the internal oil temperature is heated evenly and is easy to operate.
5）The electric heating tube unit can be flipped up freely for easy cleaning inside
4.Application
Mainly used in restaurants, hotels, school canteens, small fried food plus enterprises, etc.
5.Parameter
Model No.
| Oil Capacity
| Power
| Frying Frame Size
| Equipment Size
| Weight
|
DBS-500
| 60L
| 9kw
| 480*480*350mm
| 600*700*900mm
| 100kg
|
DBS-1000
| 120L
| 24kw
| 480*480*350mm
| 1100*700*900mm
| 150kg
|
DBS-1500
| 190L
| 36kw
| 480*480*350mm
| 1600*700*900mm
| 180kg
|
DBS-2000
| 250L
| 48kw
| 480*480*350mm
| 2100*700*900mm
| 200kg
|
>>
