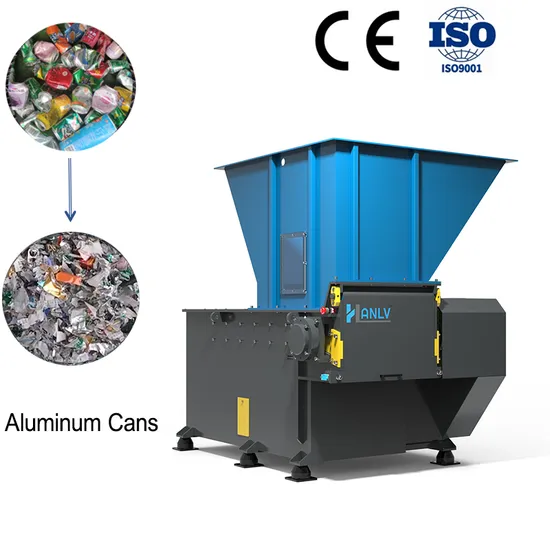

Industrial Aluminum Cans Single Shaft Shredder Waste Plastic Drum Textile PE Pipe Shredding Machine

Product Description

Product Description Product Introduction
HLV series single shaft shredder uses the interaction of movable cutter heads and fixed knives to tear, cut, and extrude the material into small size. The cutter head is consists of a basic shaft and pieces of quadrangle cutter. There are four edges that are easy to change. 'V' shaped rotary cutters are fixed on a single shaft. The fixed cutter is mounted at an angle adjacent to the rotary cutter to achieve better cutting. The material is grabbed between 'V' shaped rotary cutters and fixed cutter shreds repeatedly.
The shredder utilizes cutters mounted on the rotor to shred materials through rotation, offering material adaptability, high throughput, small finished size and consistent performance. With screens designed specifically for single-shaft shredders, it is easy to meet the required final size of material in a single pass with just one single machine.
The crushed material can be sold as raw material or processed to produce other products through other equipment.
According to the type of crushing material,the production capacity is about 300kg/ h-5000kg/h.
Being the smallest shaft shredder in our product line,It mainly handles plastic lumps and rejects, wood, paper wastes to obtain uniform particle size.
Which Materials can be Processed?
•Refuse-derived fuel: straw, municipal solid waste;
•Textile: cloth fiber, nylon;
•Paper: industrial waste paper, packing paper, cardboard paper;
•Cable wires: copper core cable, aluminum cable, composite cables;
•Polypropylene pipe, industrial packaging & plastic films, PP woven bags;
•Plastic: plastic block, plastic sheets, PET bottle, plastics pipe, plastic container, plastic drums;
Product Highlights
1.Special knives with high hardness and wear-resistance.
2. Mechanical protection and safety, in accordance with European CE standards.
3. Engineered with bearing outcasted, so blades can be changed quickly and efficiently.
4. PLC automatically re-orients rotor direction when motor overload & material jam.
5. Easy access to shredder machines rotor and screen, and quick to change them.
6. Several models of the screen are available and easily interchangeable.
Technical Data Technical Parameters

Model	Motor Power (kw)	Breaking Width (mm)	Rotor Diameter (mm)	Rotate Speed (rpm)	Dimensions (mm)
HLV-600	18.5	600	200	75	1780*1290*1690
HLV-800	37	800	400	80	2800*1800*2090
HLV-1000	45	1000	400	80	2800*1980*2090
HLV-1200	55	1200	400	80	2800*2500*2140
HLV-1500	75	1500	400	80	2800*2750*2140
HLS4	110	1200X810	/	80	4310*2264*2660
HLS5	150	1600X1000	/	80	5140*2943*3022
HLS6	180	1800X1100	/	80	5810*2880*3394
HLS7	220	2000X1200	/	80	6000*3450*3550
...	...	...	...	...	...

Product Details
Discharge Effect
FAQ1:Could We Visit Your Factory and Test the Machine?
A: We warmly welcome you to visit our factory anytime,and we are very glad to test our machine with your raw material.
2.What's the order process?
A:Inquiry for the machine-->offer with technical proposal and layout-->purchasing
order-->payment-->production-->delivery-->installation.
3.Q:How long is your delivery time?
A:Generally, it will be about 35-40 days after deposit, which also will affected by the actual situation of the project.
4.How About The Spare Parts?
A: We offer some free spare parts like belt,gasket etc small parts,for the BLADES,KNIVES,SHAFTS etc important wearing parts,we suggest customers buy some along with the machines to save the shipping cost,and we have enough spares parts in stock.
5.Q:How about the service?
A:We provide after-sales service, including on-site installation, commissioning equipment, guidance and training of operators etc. Make regular return visits to solve your equipment problems and optimize your equipment maintenance methods.
Packaging & Delivery
Customer Feedback
Company Profile Company Profile
Hanlv is a new type of enterprise integrating R&D, manufacturing, sales and service of solid waste treatment equipment. In particular, it has extensive experience in metal recycling and plastic&wood &Tire crushing.
Hanlv has many years of experience in the solid waste recycling industry, and its equipment is sold in many countries around the world. Reliable equipment quality is our philosophy.
What do customers need?----This question has always kept us going.
Workshop View
Project Case
Contact us
We will be happy to advise you.

---
