Customized Ce Silicone Rubber Secondary Vulcanization Curing Furnace Oven

Product Description

Customized CE Silicone Rubber Secondary Vulcanization Curing Furnace Oven

Product descriptions:

Silicone Rubber Post Curing Oven/ Secondary Vulcanization Oven is suitable for secondary vulcanization silicone rubber, silica gel mould sulfurization, food industries silicone molding vulcanized, medical silica gel sulfide, silicone molding vulcanized, silicone casing vulcanizing, baking, drying, daub to finalize the design.

DYG series silicone rubber industry special secondary vulcanization oven adopts national science and technology commission key promotion of far infrared heating new technology, infrared components are heated after 2 - more than 15 micron far infrared ray radiation, when it is absorbed by the heated objects can be converted into heat energy, thereby gaining rapid drying effect, to shorten the production cycle, save energy, improve product quality, etc. Temperature control meter uses the import component, fashionable, easy to use, save energy!



Features:

1. PID control system,overheating protection, safe and reliable.
2. Automatic temperature controls, easy to set and operate.
3. Far infrared heating new technology. Improve efficiency.
4.Heated with air circulating fan with heater.
5.Temperature controlled by Digital Temperature Indicator and Controller.
6.Heating temperature speed:
Heating rate should be more than 0.5 ºC / min, not more than 10 ºC / min.
From room temperature up to 150 ºC, not more than 20 to 25 minutes.
From room temperature up to 250 ºC, not more than 30 minutes.
7. The max. temperature can reach 300ºC.


Technical parameters:

Model	Tray quantity	Power KW	Working temperature scope(ºC)	Uniform temperature (ºC)	Working room size (mm)	Overall size (mm)
					H×W×D	H×W×D
DYG-A	5	9	room~300	±2.5	1000×800×800	1558×1410×1050
DYG-B	5	12	room~300	±2.5	1000×1000×1000	1780×1360×1250
DYG-C	8	15	room~300	±2.5	1200×1000×1200	1980×1360×1450
DYG-D	10	18	room~300	±2.5	1500×1200×1000	2180×1560×1250
DYG-E	10	21	room~300	±2.5	1500×1200×1200	2180×1560×1450
DYG-F	10	24	room~300	±2.5	1500×1200×1500	2180×1560×1750

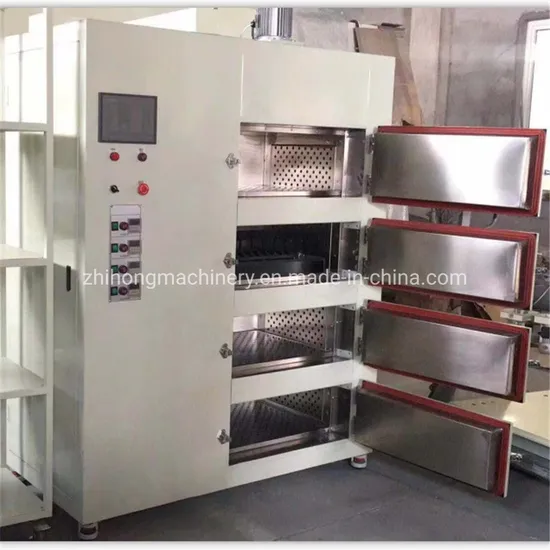

Products pictures:

FAQ:

1: What is the Warranty?
12 months warranty. If any quality problems on our side occured in this period ,we will take on the cost of shipping and component parts. Beyond the warranty period we only charged for the cost of spare part.
2: What's the delivery term?
Usually It takes 35 days after order confirmation. If you are in urgent need, we can make special production arrangement for you.

3: What's the payment term?
30% deposit by T/T,the balance paid off by T/T.Or L/C at sight.
4:Do you have any certificate of your products?
Yes, we have CE, ISO, SGS etc.
5:How many years do you manufacture the ovens?
We have been specialized in manufacturing the ovens for more than 18 years, and we have rich experience and skilled technology in the field, so the quality is very stable.

Our services:
Pre-Sales Service
* Inquiry and consulting support.
* Offering quotation and specifications.
* Provide the detailed solutions.
After-Sales Service
* 1 Years Warranty, Lifelong Follow-up Services.
* Training how to install and operate the machine.
* Training how to maintain the machine.
* Response within 24 hours once got questions from customers.
* Send spare parts within 2 days after got notice.
* Engineers available to service machinery overseas to install and commissioning.

---
