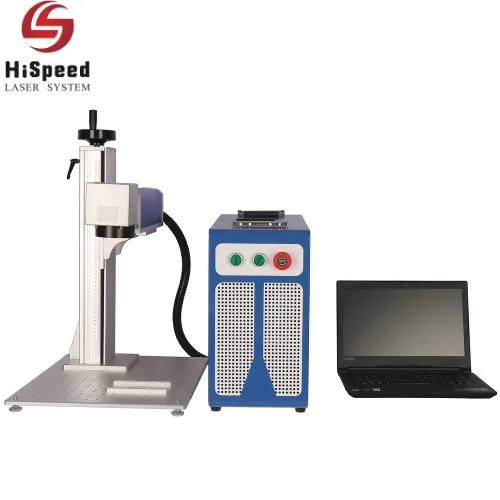

Mini Split Fiber Laser Marking Machine 30W

Product Description

Mini Split Fiber Laser Marking Machine 20W/30W
>>>>>>Equipment Description<<<<<<
CE Approved Portable Design Fiber Laser Marking Machine for Metal adopts advanced digital high speed scan galvanometer and module design that separate laser generator and lifter, which is not only small volume, quick speed, but easily marks on big objects surface. Fiber Laser Marking Machine 20W 50W Widely used in food and beverage,leather, packaging, cosmetics, electronics and other industries, low consumption, non-toxic, no pollution.
>>>>>>Machine Features<<<<<< Minimal Maintenance Diodes have a lifetime of more than 80,000hrs High quality permanent marking Environment friendly and safe Machinery Works both on Metal and Non-metal

>>>>>>Machine Details Show<<<<<<
>>>>>>Technical Parameters<<<<<<

Model	YLP-20J	YLP-30J
Power	20W	30W
Wavelength	1064nm	1064nm
Beam Quality	M2<1.3	M2<1.3
Output Power	10%-100%(continuously to be adjusted)	10%-100%(continuously to be adjusted)
Output Frequency	20KHz-100KHz(continuously to be adjusted)	20KHz-100KHz(continuously to be adjusted)
Power Stability(8h)	<±1%rms	<±1%rms
Focus Spot Diameter	<0.01mm	<0.01mm
Engraving Range	≤400*400mm(customized)	≤400*400mm(customized)
Engraving Depth	1.2mm	1.2mm
Engraving Speed	800 standard characters/second	800 standard characters/second
Minimum Line Width	0.012mm	0.012mm
Minimum Character	0.1mm	0.1mm
Repeated Accuracy	±0.003mm	±0.003mm
System Operation	Windows XP/2000/98	Windows XP/2000/98
Cooling Mode	Air Cooling	Air Cooling
Environment Temperature	10ºC~35ºC	10ºC~35ºC
Environment Humidity	20%-80%	20%-80%
Power Requirement	220V/Singlephase/50Hz/<400W	220V/Single phase/50Hz/<400W
Life of Laser Module	100000Hrs	100000Hrs
Host Size	800mmx650mmx1435mm	800mmx650mmx1435mm

>>>>>>Laser Marking Sample Show<<<<<<
>>>>>>Company Information<<<<<<
HiSpeed Laser Company is a modern professional Hi-Tech enterprise, specializing in manufacturing of Fiber Laser Marking Machine,CO2 Laser Marking Machine,UV Laser Marking Machine, Portable Laser Marking Machine,Mini Handheld Laser Machine,and Laser Engraver Machine, Laser Tube, Laser Power Supply, Laser Optics and Laser accessories etc.
Hispeed Laser mainly product is including:
Portable Mini Laser Metal Marking Machine Price,Laser Marking Machine, Laser Engraving Machine,Fiber Laser Marking Machine 20W 30W 50W 60W , Mini Laser Engraver, Co2 Laser Tube, Laser Focusing Lens, Laser Reflector Mirror, Laser Power Supply, Laser Cooler Unit, Laser Scanner Head, Laser Control System, Laser Cutting Head, Beam Expander, Red Pointer,Laser Rotary Table,3D Laser Table,Laser Rotary Chuck,Laser accessories etc.
>>>>>>Contact Us<<<<<< Hispeed Laser is a real manufacturer of fiber laser marking machine,contact us for further information if you are interested,thanks a lot.
Please advise us following inforamtion to recommend you most suitable machine:
1.What's kind of material do you want to mark? metal parts or non metal material?
2.What's the max working area do you need? we can provide you with 110*110mm, 175*175mm, and 220*220mm, 300*300mm, or customized as your demand
Get Contact with Us Now!

---
