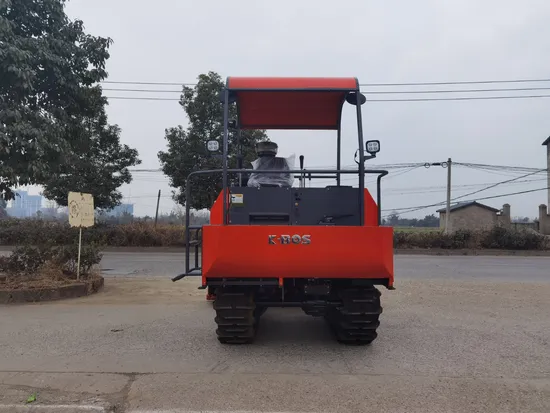

1gzl230 Gzl Series Crawler Tractor with Rotary Cultivator Tiller

Product Description

FEATURES

This tractor adopts crawler walking, use HST one lever operating, hydraulic steering lift , very easy operating;
Ground clearance 320mm, wide guage 1200mm, optional rubber track width 450 or 500, with less ground touch pressure ensure machine good trafficability in mud field;
Three-point Linkage, multi-functional match different farming Implements to finish rotary tilling, ridging, furrowing works etc;
The advantages are:easy operation, low ground pressure, high efficiency.

SPECIFICATIONS

ITEM		PARAMETER
Product		Crawler Tractor Rotary Cultivator 1GZL-230
Overall Dimension Length×Width×Heights ( mm ):		3580 × 2470 × 2600
Weight (kg)		2010
Productivity of Operating Hours(hm²/h):		0.4 ~ 0.7
Engine	Engine Model	4D35ZT32/1004
	Rated Power ( kw/hp )	73.5KW/102HP
	Engine Type	Water-Cooled, 4-Cylinder, DI-Injection, Vertical Diesel.
	Rated Rotation Speed (r/min)	2400
Driving System	Clucth Connecting	Belt
	Gearbox	Hydraulic type + HST(3F, 3R)
	Steering:	Clutch and Brake.
	Type of Brake	Wet Disc Brake
Traveling System	Rubber Track(mm):	400x90x51,450x90x51
	Gauge (mm)	1200
	Theoretical Operating Speed ( km/h )	0~16.47
	Minimum Ground Clearance (mm)	320
Working Implement	Hydraulic Hitch Type	Semi-partition Hydraulic Hitch
	Rear Mounted Implements Type	Three-point Linkage
	PTO Rotating Speed (r/min)	720/1000

PRODUCT DETAILS

PACKING AND SHIPPING

FIELD TESTING

PRODUCTION ENVIROMENT

---
