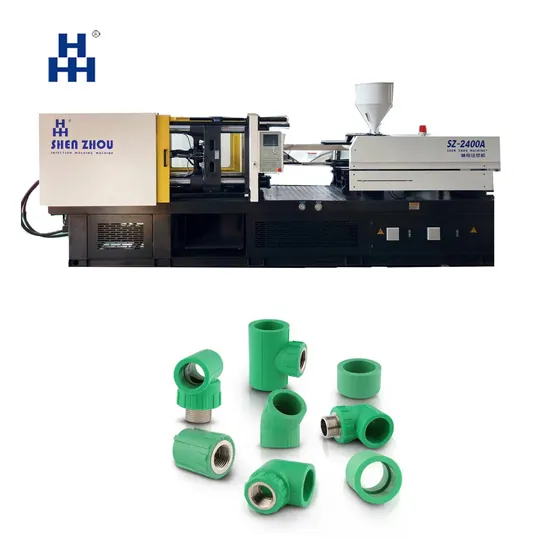

Automatic Horizontal Plastic Injection Moulding Machine PPR Fittings with Factory Price Sz-2400A

Product Description

Products Variety
Plastic Bend Pipe and Its Application
Plastic bend pipe, also known as plastic elbow pipe, is a type of plastic pipe fitting that is used to change the direction of a piping system. It is mainly made of high-quality polyethylene (PE) material and adopts a unique molding process to ensure excellent performance in terms of wear resistance, corrosion resistance, and pressure resistance.
The application of plastic bend pipe is extensive, and it can be used in a variety of industries, such as construction, chemical, petroleum, water supply, and drainage systems. Let's take a closer look at some of its applications:
1. Plumbing Systems
In plumbing systems, plastic bend pipes are used to connect straight pipes and change directions for water supply or drainage. They are widely used in residences, commercial buildings, and industrial plants to ensure efficient and safe water and waste transportation.
2. Chemical Industry
In the chemical industry, plastic bend pipes are used as a component of chemical pipelines. They are highly resistant to chemical corrosion and provide reliable performance when transporting highly concentrated acids, alkalis, and other corrosive liquids.
3. Petroleum Industry
In the petroleum industry, plastic bend pipes are used in oil and gas transportation pipelines, as well as in pipelines for fracking and oil well completion. They are highly resistant to oil, acid, and alkali corrosion, and can withstand high-pressure environments.
4. Agriculture
In modern agricultural practices, plastic bend pipes are widely used to facilitate irrigation. They are used as connectors in drip irrigation systems and for laying underground irrigation pipelines.
Plastic bend pipes are a key part of modern piping systems and offer a number of benefits, including low cost, easy installation, and superior performance in demanding environments. Compared to traditional metal pipes, they are more lightweight, flexible, and resistant to corrosion, making them the ideal choice for a variety of applications.
To sum up, plastic bend pipes are essential components in a variety of industries, from plumbing to agriculture and beyond. They are widely used due to their excellent performance, durability, and ease of installation. As new technologies and materials are developed, their application will continue to grow, making them a crucial part of modern infrastructure.
Product Description
Product Parameters
1. Customized mold Information:

ITEM	UNIT	SZ-1700A
INJECTION UNIT
SCREW DIAMETER	mm	45	50	55
SCREW LID RATIO	L/D	23.3	21	19.1
THEORETICAL SHOT VOLUME	CM3	358	442	534
SHOT WEIGHT(PS)	g	326	402	486
INJECTION PRESSURE	Mpa	219	178	147
THEORETICAL INJECTION RATE(PS)	g/s	142	175	212
PLASTICISING CAPACITY	g/s	20.1	26.5	34.2
SCREW TORQUE	N.m	1250
MAX.SCREW ROTATE SPEED	r/min	200
INJECTION STROKE	mm	225
CLAMPING UNIT
MAX.CLAMPING FORCE K	KN	1700
MAX.OPENING STROKE	mm	460
SPACE BETWEEN TIE BARS	mm	480×480
MOULD HEIGHT	mm	180-500
MAX.DAYLIGHT	mm	960
EJECTOR FORCE	KN	45.2
EJECTOR STROKE	mm	115
EJECTOR QUANTITY		5
OTHER
PUMP MOTOR POWER	KW	15
PUMP PRESSURE	Mpa	16
HEATING POWER	KW	13.6
HEATING ZONE		4
SIZE	m	5.3×1.35×1.9
NET WEIGHT	t	5.6
OIL TANK CAPACITY	L	420
INTERNATIONAL DESIGNATION		1700-785

Mold information	Content
To be discussed	The price is for reference only,the specific price can be negotiated;if there are any other requirements,please state in advance
Product material	ABS,PP,PC,PA,PMMA,PS,POM and etc.
Moldbase	FUTABA,LKM,HASCO,DME,you can choose
Cavity material	45#,50#,P20,H13,718 2738,NAK80,S136,SKD61 etc
Runner	cold/hot runner
Cavity	multi or single cavity
Customized	Per customer request
Lead time	about 25 days,depond on reality project
Package	standard exported wooden box packed
Design software	UG,PROE,CAD,Solidworks

2. Detail information of bottle cap mold mould steel:

Mould material	Mould hardness	Mould life
P20	HRC 29-33	300000 shot
H13	HRC>43	1000000 shot
718	HRC 30-36	500000 shot
S136	HRC 48-52	50000 shot
2344	HRC>48	800000 shot

3. PET Preform mold:

Name	Mult-cavity preform mould
Cavity	16 24 30 36 ....
Material	PET
Mould steel	S136
Runner system	hot runner
Gate type	valve gate
Eject way	stripper
Mould running	full automatically
Customized	Per customer request

Why Choose Us
Detailed Photos
Certifications
Company Profile
FAQ
1. Why choose us?
We not only supply the mold, but also the machine and related parts. Port city, convenient transportation.
2. How to ensure the quality of mould?
Debug on the machine before delivery to ensure no quality problems before delivery.
3. What about our after-sales service?
There is a perfect after-sales service system, super long warranty period, any product problems can contact us at any time.
4. About the price?
Higher discount for bulk purchase, price can be negotiated.
5. How long will delivery take after placing an order?
High production efficiency,short delivery time, specific circumstances can be negotiated.

---
