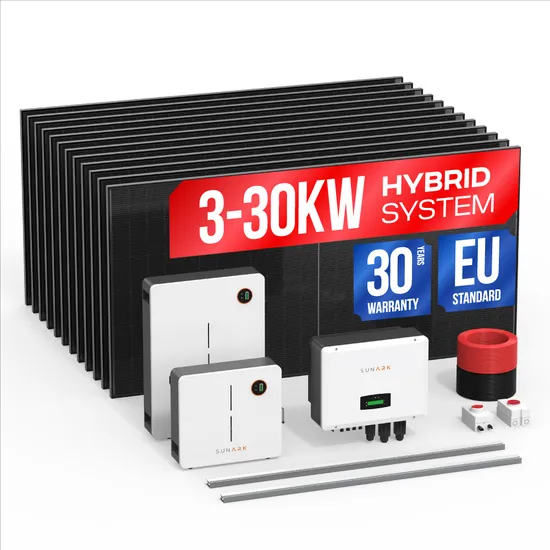

Sunark Free Shipping All in One Solar Energy System 8kw 10kw 12kw Chinese Price Photovoltaic System Solar Panel System for Home

Product Description

Product Descriptionwarranty
What's Included

Model	SE-3KW-HY	SE-5KW-HY	SE-10KW3-HY
Half Cut Mono 550W Solar Panels	6 pcs	10 pcs	20 pcs
Hybrid Solar Inverter	1 pc	1 pc	1 pc
Lithium Batteries 48V 200Ah	1 pc	1 pc	1 pc
PV Cable 4mm2	100m	100m	200m
Earthing cable 6mm2	100m	100m	100m
MC4 Connector	20 pcs	20 pcs	20 pcs
PV Tools	1 pc	1 pc	1 pc
Roof Mounting System	1 set	1 set	1 set
Wooden box	1 pc	1 pc	1 pc
Model	SE-20KW3-HY	SE-30KW3-HY	SE-50KW3-HY
Half Cut Mono 550W Solar Panels	40 pcs	60 pcs	100 pcs
Hybrid Solar Inverter	1 pc	1 pc	1 pc
PV Cable 4mm2	300m	500m	1000m
Lithium Batteries 48V 200Ah	2 pcs	3 pcs	5 pcs
Earthing cable 6mm2	200m	200m	200m
MC4 Connector	30 pcs	50 pcs	100 pcs
PV Tools	1 pc	1 pc	1 pc
Roof Mounting System	1 set	1 set	1 set
Wooden box	2 pcs	2 pcs	3 pcs

All In One Solar Project
Half Cut Mono 550W Solar PanelPeak Power Watts: 550W
Maximum Power Voltage: 42.06V Maximum Power Current: 12.84A
Open Circuit Voltage: 49.75V
Short Circuit Current: 13.63A
Dimensions:2279x1134x35mm
Weight:26.9 kgHybrid Solar InverterSupport both single phase and three phase, transformer isolation design.
Different modes make system work more efficiency.
Max.charging/discharging current of 240A
Max.6pcs parallel
DC couple and AC couple to retrofit existing solar systemLow Voltage LiFePo4 Battery Bank12V, 24V 48V, 51.2V available.
15-20 years design life. Up to 6000 + cycle Ilfe
Wall mount or ground stack brick, simply connecting to inverter
Battery module is scalable for any larger storage system.
Battery modular built in high quality BMS. Protect battery cells all the way.
Lithium iron phosphate battery cell, stay safe with battery storage at home.PV Mounting SystemMounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt.
Mid & End Clamps: 35,40,45,50mm
L Foot Asphalt Shingle Moount & Hanger Bolt Optional
Cable Clip & Tie Optional
Ground Clip & Lugs OptionalDC & AC Disconnect SwitchIP Rating: IP66
Rated Voltage: 1000VDC
Connection Type: M20,M25,MC4
Rated Current: 16A,20AMonitoring SystemOpen station supports one-click installation and registration Problem support one-click dispatch and navigation Safe operation,
traceable logs, etc
Support full lifecycle data storage to ensure data security and reliabilityHow it works
Product Packaging
Applications
Our Factory
Project Case
Company Profile
Our FactorySunArk Power is a leading global energy storage solution and service provider. The company specializes in residential, commercial and utility applications and delivers pre-eminent products and fit-for-purpose solutions. SunArk Power has 20+ experience producing energy storage products and 90,000+ systems actively running in 80+ countries, enabling millions of people to enjoy reliable, accessible and clean energy. SunArk Power has been developing quickly, till end of 2022, accumulatively, the company has manufactured 620MWh BESS and battery strings. Internationally, SunArk Power FlexCombo DC coupling microgrid ESS, from 50kW to 500kW, is a well-known trademark that more than 300 sets has been deployed in EU, US, Canada, Brazil, Myanmar, African countries etc. SunArk Power is a national high-tech enterprise with such innovative platforms as national enterprise technology center, CNAS accredited laboratory, postdoctoral workstation, academician workstation, Equipment and Electronics Research Institute and so on. SunArk Power has core technology patents in new materials, new technologies and new structures of battery power supply, has led and participated in the formulation of a number of international, national and industrial standards.Contact Us

---
