Hardcover Four Side Covering Machine Case Maker Machine

US$10,000.00-20,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
SFM-460
Automation
Automatic
Certification
CE, ISO
Customized
Customized
Condition
New
Zd-120
Corner Cutting Machine
Process
Paper Machine
Usage
Packing Paper Machine
Automatic Grade
Automatic
Computerized
Yes
Transport Package
Export Wooden Box
Specification
CE
Trademark
XINWEI
Origin
Zhejiang China
HS Code
8441809000
Production Capacity
30/Month

Product Description

Paper corner cutting machine
Is Suitable to cut the corner of paper for hard cover books, CD and DVD boxes, ring binders, photo albums, restaurant menus, color boxes, note-books, albums, book cover, bookcase, notebook & diary, desk calendar, gift box, mobile phone box, photo album, hard cover, gift boxes, files, calendar, chessboard, book cover, bookcase, gift box, , photo album, bible, lever arch file, hardcover of hardcover books, photo albums

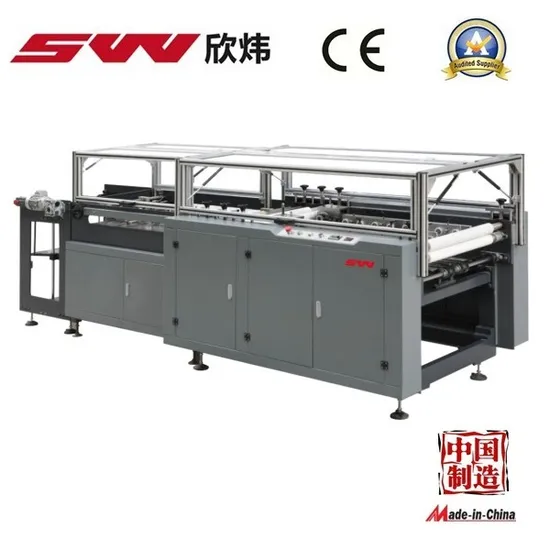

Automatic Book Cover Four Sides Wrapping Machine
Feature
The contra-positioned glued face paper and under-packing paper are sent into folding machine by conveyor belt.
Folding is finished automatically in one time by firstly folding left and secondly front and back.
1 Feed the glue paper and body paper into the flanging belt, fold left and right side,
Then the paper is integrated closely via the drum of the first layer.
2 After being over-turned on light-controlled conveyor belt, the paper reciprocates to the drum of the second layer to perform
Flanging of the back side.
3 After operated by the back forward gas baffler, the paper reciprocates to the drum of the third layer to perform flanging of the front side.
4 The steel roller laminated with Teflon, not easy to adhibit the glue and durable in use
Model SFM-460 SFM-600
Thickness of cover sheet 100-200g 100-200g
Width of book cover 140-480MM 160-600MM
Length of book cover 230-830MM 230-1000MM
Thickness of book cover 1-3mm 1-3mm
Covering speed 0-25sheets/min. 0-25sheets/min.
power 1.4kw/380v 1.4kw/380v
Machine dimensions L3100X W1320X H 1200 mm L3620X W1330X H 1260 mm
Machine weight 700kg 780kg
