Xinnuo Floor Deck Roll Forming Machine Machine Making Corrugated Steel

Product Description

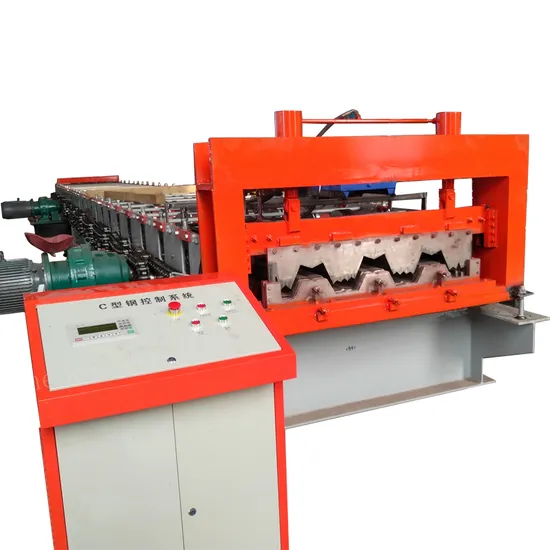

Xinnuo Floor Deck Roll Forming Machine The Xinnuo Floor Deck Roll Forming Machine is designed to create corrugated steel floor panels. It offers several advantages that cater to the reading habits of English-speaking natives.
Advantages: High wave crest and strength for superior performance. Automatic production for increased efficiency. Low cost and good adhesiveness for cost-effective solutions. This machine is ideal for use in large workshops, roof construction, and more. It is equipped with a feeding platform, roll forming system, automatic shearing device, hydraulic system, and computer control system.
The Xinnuo Floor Deck Roll Forming Machine can work with various materials such as color steel, aluminum sheet, and galvanized sheet. Its configuration includes a manual uncoiler, main forming machine, gearbox motor, hydraulic system, cutter, and output table.
The control system is fully automated and offers adjustable speed and length-setting capabilities.
Main Parameters and Specifications: We customize each machine according to user requirements. The following technical parameters can be adjusted if needed:
Company Name: HEBEI XINNUO ROLL FORMING MACHINE CO., LTD.

Technical parameters:
			1	Name of commodity & specification	XN-688 Floor Deck roll forming machine
2	Main motor power	18.5kw, 3 phase
3	Hydraulic motor power	15kw
4	Hydraulic Pressure	18-20MPa
5	Voltage	380V /3phase/ 50 HZ (or as your requirement)
6	Control System	PLC Delta Inverter
7	Main Frame	450mm H-Beam
8	Backboard Thickness	22mm
9	Chain Size	66mm
10	Feeding Material	color steel coils
11	Feeding Thickness	0.3-0.8mm
12	Feeding Width	1000mm
13	Effective width	688mm
14	Productivity	8-10m/min
15	Roll Station	27
16	Roller Diameter	95mm
17	Roller material	45# steel
18	Cutter material	Cr12 , quenched
19	Cr-Plating Size	0.05mm
20	Overall Size	15000×1200×1100mm
21	Total Weight	19T
22	Components	Manual Uncoile r-------------------1 set Guiding Platform------------------1 set Coil Strip Leveler------------------1 set Main Machine of Roll Forming------1 set Electric-Motor---------------------1 set Cutting Device--------------------1 set Hydraulic Station------------------1 set PLC Control-----------------------1 set Supporter Table-------------------1 set
			23	Workflow	Manual decoiling----feeding and guiding----roll forming----cut to length----run out table
						24	Package	nude in the container
			25	Minimum order quantity	1 set
			26	Payment terms	T/T(30% T/T pay in advance, the remaining 70% pay before ship)
						27	Delivery time	30 working days later after receiving the deposit
			All technical parameters can be changed, according to user's need.

Introducing the Xinnuo Floor Deck Roll Forming Machine by HEBEI XINNUO ROLL FORMING MACHINE CO., LTD. This popular roll forming machine is perfect for making corrugated steel floor decks. With its CE and ISO certifications, this new machine is ideal for creating various colored steel roof panels and roofing sheets. Get your metal forming machine today!
4.Packaging & Shipping HEBEI XINNUO ROLL FORMING MACHINE CO., LTD. Product Description The main machine is nude, while the computer control box is packed with a wooden frame.
FAQ How to place an order? 1. Inquiry - Confirm the profile drawings and price - Confirm the PI - Arrange the deposit or L/C - Then OK.
How to visit our company? If you are flying to Beijing airport, you can take a high-speed train from Beijing Nan to Cangzhou Xi (1 hour), and we can pick you up from there. If you are flying to Shanghai Airport, you can take a high-speed train from Shanghai Hongqiao to Cangzhou Xi (4.5 hours), and we can pick you up from there.
When did we start exporting the machines? We have been making and exporting the machines since 1998.
How can you get more pictures or videos of the machines? If you want more pictures or videos of the machines, I can send them to you via Email or Skype.
Contact Information Contact Person: Helen Wang

---
