2025 New Silicone Rubber Ring Gasket Washer Cutting Machine

Product Description

2025 New Silicone Rubber Ring Gasket Washer Cutting Machine
Model: Double shaft
Product Introduction

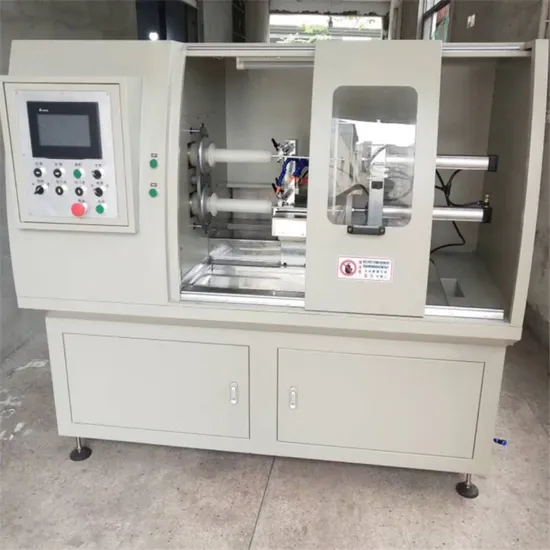

Rubber O Ring Cutting Machine is used for cutting all kinds of tubular products (rubber and silicone etc) to gasket, ring. The LCD touch screen PLC control all cutting parameters, operation is extremely simple. Machine structure is adopted mechanical action, all electrical components, pneumatic components are famous brand.
Technical parameters
Double shaft rubber ring cutting machine :

Cutting frequency	>50pcs/min
Working speed	0~2000r/min
cutting precision	≤±0.05mm
Cutting outside diameter	Φ10mm~Φ120mm
Cutting length	≤200mm or 300mm
Cutting thickness	≤12mm
Compressed air consumption	50L/min
Air pressure	0.5MPa~0.8MPa
vacuum degree of work	≤-0.035MPa
Total power	1.5KW
weight	≈600Kg
dimension(L×W×H)	1600mm×960mm×1580mm

Product display
Round tube, rectangular tube, all shaped tube can be cut:
Products Features
1.The Rubber Gasket Cutting Machine adopt the automatic program control measures of material system, reducing the need to replace the jig to complete before unloading process cumbersome.
2.the cutting machine equipped with servo control system, servo motor, frequency converter, PLC control, cutting size is precision and reliable.
3.LCD touch-screen control, all the cutting parameters very clear.and the operation is easy.
Package & Delivery:
Our products will be packed with transparent film and soft foam, then be packed with strong and standard export wooden case.
Shipping method:
1. We can ship the goods to you by Air, Sea and International Express such as DHL,UPS,TNT,EMS and so on.
2. You can also choose the appropriate one based on your timeline and budget.
3. You can choose to use your own shipping agent.
We offer below business term:

Accepted delivery terms	FOB, CFR, CIF, EXW
Accepted payment currency	USD, EUR,CNY
Accepted payment type	T/T, L/C
Nearest port	Qingdao, Shanghai, Dalian, Tianjin,Ningbo etc.

A. Technical service
1. We calculate the capacity and recommend the best models.
2. We supply the spare parts and technical support in & after the warranty time.
3. We supply the training course to your workers at our factory if you need.
B. After-sales service
1. Technical support for your installation, operation and maintenance.
2. One year's warranty
3. Spare parts and technical support at most economic prices after the warranty.
We are looking forward to your inquiry.
Hope we can establish long term business relationship with you and your company.

---
