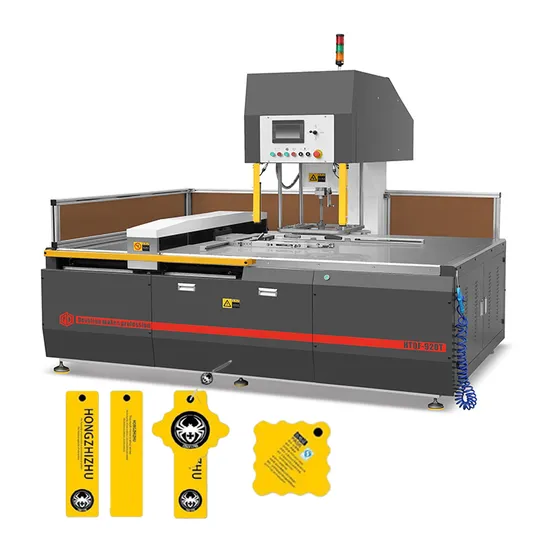

Automatic Die Cutting Waste Stripping Machine for Hang Tag

Product Description

Semi- Auto Waste Stripping Machine

Sample Show

Working Flow

Main Features

Automatic stripping machine is a professional equipment for automatically stripping the waste from die cut paper sheet. It replaces manual labor and greatly upgrades working efficiency. It applies to print & pack industrial, post-press, after paper creasing and die cutting.This stripper machine make your scrap removal efficient after the die-cutting process.
1. Taking out finished product after die cutting process,for waste stripping.
2. Applied for many die-cut products such as labels, hang tags, business cards, gift box, food box, paper cups and other die cutting products in paper or plastic.
3. PLC controlled with smart & easy operation.
4. Automatic lubrication system for machine better maintenance.
5. Different shape products can be custom-made as customer requirement.

Technical Parameter

Model	QDQF-680	QDQF-920	QDQF-1080
Machine Size	1910x1480x1940	2400x1800x1980	2760x2050x1950
Max sheet size (X x Y) mm	680 x 480	920 x 680	1080 x 780
Min sheet size (X x Y) mm	400 x 300	550 x 400	650 x 450
Max pile height mm	100	100	100
Min pile height mm	40	40	40
Work table height mm	850	850	850
Max product size to be punched out	230*230	360 x 360	390 x 390
Min. product size to be punched out	30*30	30*30	30*30
Stripping speed times/min	15-22	15-22	15-22
Max. force (bar)	70	70	70
Air consumption L/min	2	2	2
Max Power	4.2kw 380V	4.2kw 380V	4.2kw 380V
Net Weight	1.5T	1.9T	2.3T
Package Size	2100x1500x2200	2600x1950x2250	3000x2150x2200
Gross Weight	1.8T	2.2T	2.6T

Company Information

Wenzhou Qian Ding machinery Co., Ltd is a professional manufacturer of waste stripping machine,paper hole drilling machine, we provide perfect solution for the die-cutting product waste removing, save the labor cost very much and make your die-cut product in higher quality. Our machines are widely used for the production lines of box making, gift box making, hang tag making, label making, paper cup making, and other products need to be die-cut.
As a innovation company, we value the technology,and quality very much. We pay attention to the scientific concept of development, enhancing the corporate culture, and injecting the vitality to modern enterprise, which make our company have stronger competitiveness.

---
