Fully Continuous Pyrolysis Plant for Living Waste

Product Description

1. Plant Sepcification
A: plant size
L*W*H 12 000*2 000*2 500mm
B.Plant feature
-widely usage
Can be used for tyre 5-10cm ,plastic,rubber ,oil sludge,cooking waste,live waste,oil sand ,oily soild
-static pyrolysis ,getting higher quality oil,less dust in oil
-large capacity
24hours produce 40-60ton tyres
-continuous pyrolysis, no need cooling reactor, saving fuel,saving working time
-good pressure tightness,safe
2.About oil rate for different material

Oil yied/day	Waste tire/ rubber	Big tyres	45%--50%
		Car tyres	40%
		Bicycles and motorcycles tyres	30%--35%
	Waste plastic	Fishing net	45%--50%
		Safety net , farm-oriented film
		Conwenient bags , weave bags	40%
		Off cut of recycled paper mill	20%--30%

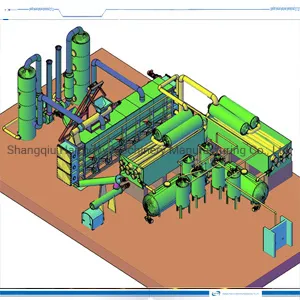

3.Major parts
4.Work-flow
loading plastic/tire into reactorheating reactor after heating , solid plastic converted to oil gasoil gas go into oil-gas separator ,heavy oil deposit and go to heavy oil tank, light oil gas go to cooling systemafter cooling ,light oil gas change to liquid oil and go into light oil tanknon-liquid oil gas will to water sealing tank, then back to combustor burning to heat reactor as fuelsmoke produced by heating reactor will go to dedust system, after dedust system treatment , smoke change to white clean waster steam ,then go to sky through chimney.
5.Other plant type

Specification	Capacity	Raw material	Heating material	Working time (hrs)	Shipped by
XHZT-2200-6000	5Ton	Waste tyres Cables Plastics Rubber Oil sludge	Wood,coal ,oil,gas	12	2*40HQ
XHZT -2600-6000	8Ton			15	1*40HQ+1*40FR
XHZT -2600-6600	10Ton			18	1*40HQ+1*40FR
XHZT -2800-6000	10Ton			18	1*40HQ+1*40FR
XHZT -2800-6600	12Ton			20	1*40HQ+1*40FR
XHZT -2800-6600	15ton	Medical waste		22	1*40HQ+1*40FR
Contiuous plant	20Ton	Other waste		24	3*40HQ
Contiuous plant	60Ton			24	5*40HQ

6.Tyre Oil Paramter

Item	Tire Oil
Density g/cm3	0.90-0.92
Freezing Point oC	-10
flash point oC	50
Kinematic viscosity mPa.s	6
Combustion valuekJ/kg	10500

7.Payment term and delivery

Payment term	30% TT deposit ,balance paid before plant loading ,or sight LC
Delivery	With 15days after getting advance payment
Warranty period	2 years warranty period, life time maintenance
Installation	We send technician for guiding installation and training your workers for free.

---
