Short Cycle Particle Board MDF Melamine Lamination Hot Press Machine

Product Description

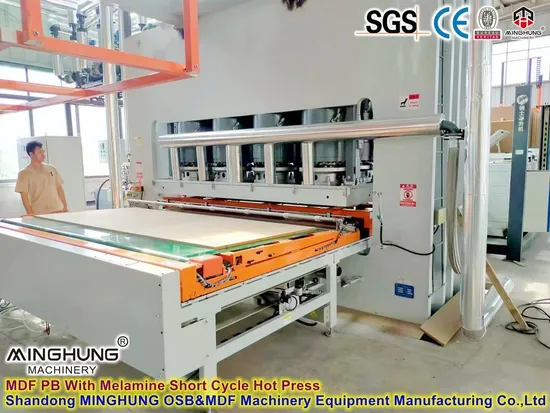

Short Cycle Particle board MDF Melamine Lamination Machine
Melamine Press Machine
Short cycle veneer hot press is a equipment used to attach wood veneer, decorative paper, plastic film, Melamine and other materials to the surface of the substrate (such as particleboard, medium density fiberboard(mdf), etc.). It is widely used in furniture manufacturing, decorative materials, construction industry and other fields. The short cycle veneer hot press is favored for its efficient, fast and accurate fitting results.
1. Working principle
The short cycle melamine hot press machine tightly combines the finishing materials (such as veneer, decorative paper, etc.) with the substrate by heating and pressurizing. Its working process includes the following steps:
- Feed: Feed the substrate and finishing material into the hot press.
- Heating pressure: The material is heated and pressurized by the hot press plate to make the finishing material firmly bonded with the substrate.
- Cooling: After the pressurization is completed, the material is cooled quickly through the cooling system to fix the bonding effect.
- Discharge: The finished sheet is output from the hot press.
2. Main components
- Hot press plate: Usually made of high-strength steel, with internal heating pipes to provide uniform heat.
- Hydraulic system: provides stable pressure to ensure that the finishing material is tightly bonded to the substrate.
- Heating system: Electric heating, steam heating or oil heating is used to provide the required heat.
- Cooling system: Rapid cooling through water cooling or air cooling, fixed veneer effect.
- Control system: Using PLC or microcomputer control, to achieve accurate adjustment of temperature, pressure, time and other parameters.
- Conveying system: Used for automatic feeding and discharging to improve production efficiency.
3. Advantages
- High efficiency: Short cycle design makes the production cycle greatly shortened, suitable for mass production.
- High quality: Through precise control of temperature, pressure and time, to ensure uniform veneer effect, no bubbles, no warping.
- Flexibility: Suitable for a variety of combination of finishing materials and substrates, such as veneer, PVC film, decorative paper, etc.
- High degree of automation: Automated control system reduces manual intervention and improves production efficiency and consistency.
- Energy Saving: Use efficient heating and cooling systems to reduce energy consumption.

Detailed Photos
Particle board melamine short cycle hot press is a revolutionary technology that has transformed the manufacturing process of medium-density fiberboard (MDF) with melamine. This advanced technique offers numerous benefits to the industry, including increased efficiency, improved quality, and reduced production time. In this article, we will delve into the details of particle board melamine short cycle hot press and explore how it has revolutionized the production of MDF.

Particle board melamine short cycle hot press is designed to significantly enhance the efficiency of MDF production. With this technology, the entire process is streamlined, allowing manufacturers to achieve higher production rates without compromising on quality. The short cycle hot press ensures faster curing of melamine resin, reducing the total production time and increasing the output capacity of the manufacturing unit.


Product Parameters

Name	Melamine hot press machine
Pressure	2000 Ton
Mainly oil cylinder	φ360*250mm*8pcs
Hot plate size	1400*2600*150mm
Floors	1
Suitable panel size	4*8feet
Opeating oil pressure	≤25Mpa
Electric control	plc + touch screen
