Kl2.8lm (A) Intrinsically Safe Integrated Multi-Functional Miner′ S Cap Lamp

Product Description

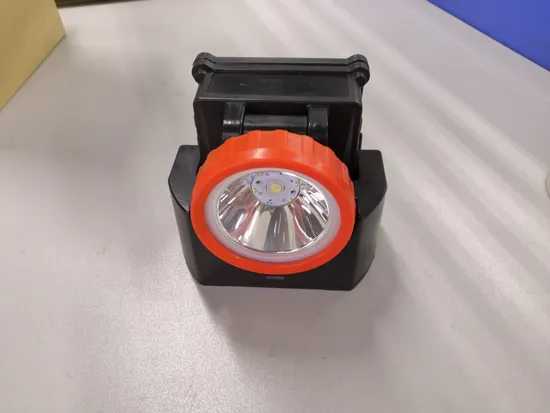

KL2.8LM(A) Intrinsically Safe Integrated Miner's Cap Lamp
Main characteristics
1. LED constant current driving mode, it ensures the illuminance keep the same during the lighting.
2. Equipped with built-in micro controller and multiple safety protection circuit, with intelligent management of charge-discharge process, it is safe and reliable.
3. It is dual light source design, which can be one-key switched in five modes: bright light, low light, auxiliary light, strobe and SOS.
4. It has the characteristics of battery power indication, freely adjusting the angle of lamp head, and various ways of wearing. Technical parameters

Item				Specification
Battery type				Li-ion
Rated capacity				2.8Ah
Rated voltage				3.7V
Lighting time				>11h
Main light source	Operating current			0.2A
	Maximum illuminance ( at 3m away from lamp)		When lighting begins	≥4000lx
			After lighting for 11h	≥4000lx
Rated power of LED auxiliary lighting source				0.2W
Life of cap lamp				>2yrs
Charging time				(6~8)h
Explosion proof type		mine environment		Ex ia I Mb
		Gaseous environment		Ex ia II C T4 Ga
		Dust environment		Ex tD A21 IP65 T135ºC
Protection grade				IP65
Dimensions				84×68×71mm
Weight				0.2kg

Matching information

Standard fittings

KZC1C charger, headband
