216mm SBNC BK-L216II Thermal KIOSK Printer A4 Auto Cutter ATM/Vending Machine Embedded Printer

Product Description

Product Description

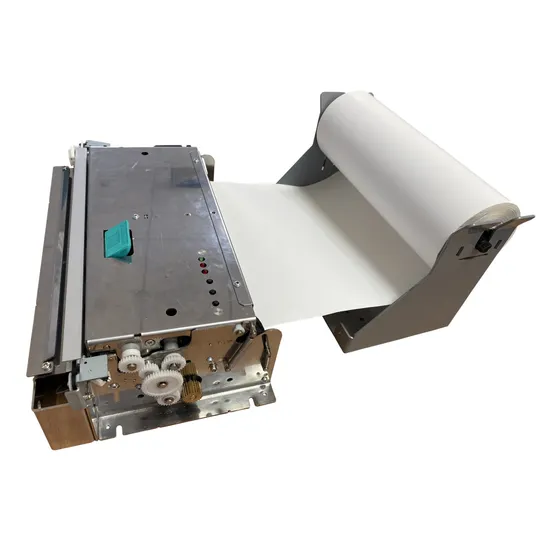

BK-L216II 216mm Thermal KIOSK Printer A4 Auto Cutter ATM/Vending Machine Embedded Printer

Item		BK-L216II
Print	Print Method	Direct Thermal Line Printing
	Resolution	203/300 DPI
	Print Width	216mm(Max.)
	Print Speed	203DPI:125mm/s (Max)
		300DPI:100mm/s (Max)
	Print Length	Standard Config:Max.1000mm Min. 82.5mm
		Special Config:Max.1000mm Min.A4/3 82.5mm
	Memory	SDRAM:8MB
		FLASH 1MB(Standard), 2MB/4MB(Optional)
	Sensors	Paper load, black mark, paper near end, presenter, TPH overheat protection
	Driver	Win2000/XP/Server 2003/VISTA/Server 2008/Win7/Win8/XPE
	Interface	Serial,USB
Barcodes Fonts	Barcodes	1D:UPC-A,UPC-E,EAN8,EAN13,CODE 39,CODE 93,CODE 128,ITF,CODABAR 2D:PDF417
	Fonts	200DPI:Font A(12x24),Font B(9x17), Kanji Font(24x24) 300DPI:Font A(18x34),Font B(13x24),Kanji Font(24x24)
	Character Modification	Rotate(0°,90°,180°,270°),enlarge(1-6X),emphasize,underline,reverse
Paper	Paper Type	Continuous paper, Marked paper,Folded paper
	Paper Width	210-216mm
	Paper thickness	0.06mm~0.1mm
	Paper Roll OD	203mm/s(Max.)
	Paper Roll ID	25.4mm/s(Min.)
	Paper Cut	Full cut
Presenter	Paper Out Mode	Retract/hold paper/spit out paper/close
	Paper Out Speed	400mm/s
	Paper Retraction Speed	400mm/s
Power Supply	Input	100-240VAC,50-60Hz
	Output	24±10%V DC, 2.94A
Reliability	Printer Head Lifetime	100Km
	Cutter Lifetime	500,000 cuts
	MTBF	360,000 hours
Envionment	Operation Condition	0~50ºC,20%~90%RH(40ºC)
	Storage Condition	-40~60ºC,20%~93%RH(40ºC)
Physics Spec.	Dimensions	212(L)x294(W)x97(H)mm (Without paper holder)
	Weight	Approx.4.4kg (Without paper holder)
Standards	Standards	CE,CB,FCC

Packaging & Shipping
Lead Time:

Quantity(Sets)	1 - 500	>500
Est. Time(days)	15	To be negotiated

Company Profile
Suzhou Qiji Electric Co., Ltd specializes in designing, developing, manufacturing and marketing of printing equipment.
With experienced and professional R&D team, we successfully launched a series of printing equipment, such as advanced POS receipt printers, portable printers and LCD modules, bluetooth printer, micro panel printer, KIOSK printer, barcode label printer, as well as printer mechanisms (thermal & impact type) and so on.
Our products are widely used for POS/ECR, transport ticketing, instrument analyzers, KIOSK system, electronic medical equipment, self-service solution, fire safety, tax control, shopping malls, car automotive, food and beverage industries, embedded printing solutions, cinemas, highway, boarding cards, tax control system and so on.

FAQ

1.Can I get a sample order first to test the quality and compatibility?

Yes, usually we have samples in stock, customers can easily buy them for testing purpose.

2.What about delivery time?

For sample, usually 3 days. For bulk order,usually 7 to 15 days,depends on order quantity.

3.How about Payment terms?

For sample, Paypal, Western Union. For bulk order, T/T prepaid.

4.How about shipping methods?

DHL, UPS, FedEx,China Post, etc are all ok, we will choose the economical and fast way.

5.How about the warranty?

All items have 1 year guarantee.

6.How will you control the printer's quality?

We fully tested every product before shipping out, and also we have QC persons.

7.Can you make OEM or ODM for products?

Yes, OEM and ODM products are available.

---
