China Factory Hot Sale 1500W 2000W 3000W Fiber Laser Welding Welding Machine Max Laser Source Hanli Water Chiller Qilin Welding System

Product Description

Product Description

Fast: High-speed welding with fiber laser
Smart: Integrated design,easy to use
Hingh performance: Strong welding seam,wide application fields
Easy maintenance: Simple structure,modular design,easy to maintain

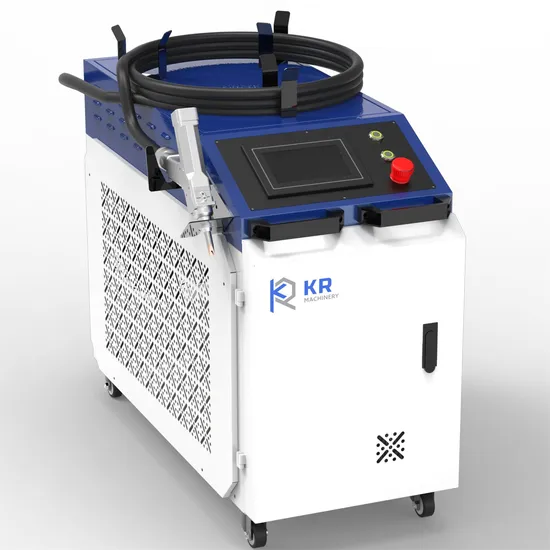

Model name Handheld laser welding machine

Model	KW-1500/2000
Laser Power	1500/2000W
Laser wavelength	1070nm
Fiber core diameter	50μm
Fiber length	10m
Laser working mode	Continuous / Modulation
Galvanometer width	0.5-6mm
Galvo scan speed	≤8000mm/s
Welding speed	0-120mm/s
Refrigeration unit	Intelligent dual temperature chiller
Working environment(temperature for water in the chiller)	15-35ºC
Humidity range of working environment	< 70% non-condensing
Welding material thickness	≤6mm
Welding gap requirements	≤2mm
Voltage requirement	220V±10%
Machine dimension	980mm*420mm*712mm

Advantages of Handheld Laser Welding Machine with Fiber Laser Beam:
1. Handheld welding head is equipped with 1500/2000/3000 watt fiber laser power, flexible, enabling outdoor welding.
2. The welding seam is strong and beautiful, large depth, small taper, save time.
3. No deformation or welding scar, firm welding of the workpiece.
4. Laser welding has less consumables, low energy consumption and long service life.
5. Safety, easy operation and more environmentally friendly.
MAX Laser Source
The best-selling brand in China
Simple structure and few safety hazards


Qilin welding gun
Flexible design to adapt to different working environments
Complete tasks efficiently and improve productivity
Small size,light weight,easy to carry and transport
Hanli Chinller
Intelligent control and stable perfoamance
Energy saving and low noise
Small footprint and easy maintenance

Qilin welding feeder
Automtic double wire feed and easy to operate
Hingh wire feeding precision and welding seam quality
Highly dynamic attitude and fast welding speed

Control Buttons
Simple operation
Fast response
Easy installation and maintenance
Packaging & Shipping

After Sales Service
1. The warranty period will be maximum 2 years (except for wearing parts;),please refer to the detailed warranty policy on each part according to our AS regulation file. The warranty period is calculated from the date of delivery.
2. In case of any component failure during the warranty period, we are ready to provide telephone and/or online support.
3. During warranty period, we will deliver the parts for free (expenses of parts, not including transportation fees) if the parts cannot work due to non-human reasons.
4. during warranty, if any part needs to be repaired in China, the transportation fees from the customer's factory to China should be borne by the customer, the transportation fees from China to customer's factory should be borne by the supplier.
5. Service after the warranty period: we provide continuous services and support for our customers when the warranty period expires, the customer should bear the expenses of air tickets, parts, accommodation and service(100usd/day/person). Company Profile

Shandong kr machinery technology co.,Itd was built in the year of 2019,our product scope mainly includes sheet metal fabriction machines such as fiber laser cutting machine,fiber laser welding machine,automation etc.We have been keeping improving the machine and application of sheet metal fabrication,and aim to provide the best product and service for our customers.We have built two overseas branchs by now and expanding our business globally.
Overseas Customer

Our customers come from all over the world, mainly from South Korea, Vietnam, India, Malaysia, America,Russia and other countries, deeply trusted and loved by them.

---
