Product Description
Flat Die Pellet Machines Our flat die pellet machines can be devided into two series, KL series and MKL series pellet machines. Our
KL series pellet machins can both make feed pellets and wood pellets, but the capacity of wood pellets is
lower than that of making feed pellets. Our MKL series pellet machines has the special design for making
wood sawdust pellets.
Our pellet machines can be driven by electrical motor, diesel engine, gasoline engine and tractor for your
choices. All of our KL-P series pellet mills are driven by the tractor.

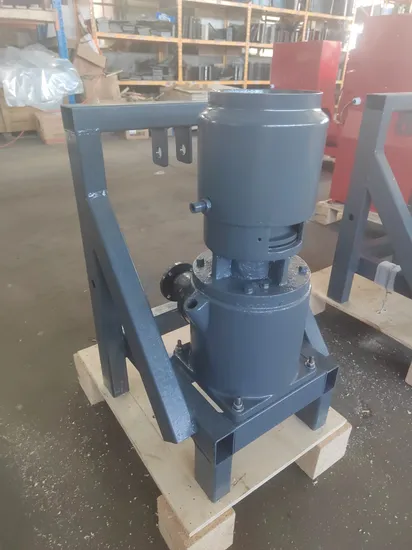

PTO Tractor Driven pellet machine--MKL225P roller moving type
1.Model:MKL229P
|
2. Output: 220-280kg/h.
|
3. Power: Driven by tractor.
|
4. The size of the final pellets: 2.5-10 mm, if you make animal feed pellets, 2.5-4 mm is better. If you make the wood pellets, 6 and 8 mm is better.
|
5. Pellet length :which can be adjusted by adjusting knife within range of 1-5 cm.
|
6. We sell the pellet machine pto without the tractor.
|
7. Weight(without of thr tractor): 230kg
|
The Specific Parameters of MKL-P Series Pellet Mills | Model | Power | Die Diameter | Die Hole Specification | Feed Capacity | Saw Dust Capacity |
| MKL225P | 18-28HP | 230mm | 2.5-10mm | 300-400kg/h | 150-190kg/h |
| MKL229P | 28-45HP | 260mm | 2.5-10mm | 400-600kg/h | 220-280kg/h |
| MKL295P | 45-55HP | 300mm | 2.5-10mm | 600-800kg/h | 300-360kg/h |
| MKL335P | 50-150HP | 360mm | 2.5-10mm | 700-900kg/h | 300-380kg/h |
| MKL395P | 50-150HP | 400mm | 2.5-10mm | 900-1200kg/h | 400-550kg/h |
Advantages of PTO Pellet Machines 1).Simple structure, wide adaptability, covers a small area, low noise. High efficient and low consumption
2).Powder feed, grass meal doesn't need or with a little liquid, then can be making for granulation.So basic to the
moisture content of grain feed granulating before the moisture of the materials, more conducive to storage.
3).Chicken, duck, fish, cattle.pig, birds, dog, etc, than the mixed powder feed can obtain higher economic benefits.
4).Dry processing, the production of feed particle high hardness, smooth surface, internal curing, can improve the
digestion and absorption of nutrients. Widely Applications of PTO Pellet Mills
It is used for pressing materials such as grain, firewood, stalk, tree branches, wood meal, fruit hull, palm and tailing of
cotton plant, and widely used for recycle of livestock farms, biomass fuel plant, power plant, wood processing plant,
fertilizer plant, chemical plant, food plant and cotton plant. PTO pellet machines can be driven by tractor more easily,
work outside.
The raw material you can choose
:
KL Series and MKL series Pellet Machines Rollers & Moulds
| Why Choose Our PTO Pellet Mill |
Compared with other types of pellet mill, PTO wood pellet mill are more small in volume and light in weight, the machine is movable. PTO driven pellet mill is powered by the tractor and others are powered by engines which makes the machine is more suitable for farm use. Relatively high working efficiency. The PTO driven pellet mill have a relatively high working efficiency than other types of wood pellet mills considering the energy it use.
|
| Our Services |
1. We provide 1 year guarantee.
2. We provide English manual and video for installation & operation.
3. If required, we could send technicians for installation and commissioning, training.
4. We provide feed formula and free spare parts. |
| COMPANY INTRODUCTION |
Laizhou Chengda Machinery Co., Ltd was founded in 1992, which is a high tech enterprise that integrates new product design, development, manufecturing and international trade business.
Main products: flat die pellet mill, vertical ring die pellet mill, wood chipper, hammer mill, pellet cooler and cutting wood machine etc.. Our company always takes the product quality and credibility as the foundation of us present and tomorrow survival and development. We always adhere to the "quality and reputation first" concept.And we have got the 'quality advanced company" and "quality trustworthy company" and the "honorary company". we are AAA level enterprise to be named by the national quality, reputation and service department.
Our company is located in Laizhou Bay, near to Qingdao seaport. It's convient in sea, road, and air transportation, we have very perfect import and export service system in China. At the same tine , we have a widely range of commodity information network, partners all over the world. Believe our sincere cooperation will creat a better tomorrow.
|
| RFQ |
| 1. How to order? |
After you decide to purchase, we will send you proforma invoice with our bank information,
bring this PI to the bank, and ask to make T/T for the deposit. For single set, your machine can be ready within 7-10 working days after we getting the deposit, we will send to the port and deliver to you by sea.
-In case for more handling charges, you can transfer 100% of the payment, we can arrange the products and shipping under your allowance. |
| 2. Related products? |
| PTO type, diesel type, electric type. |
| 3. Can i order 1 set for sample? |
| Yes, Sample acceptable, You can test the quality of sample. |
| 4. How do we visit you and your factory? |
First of all, welcome you or any appointed agent to visit and inspect our factory.
You can fly to Shanghai airport, then come from Shanghai railway station to weifang city.
You can fly to Qingdao airport, then we can pich you up there.
We can pick up you at Qingdao airport or Weifang railway station.
Please kindly let us know your schedule in details, so we can arrange everything for you. |
| 5. Why you choose us? |
As manufacturer, our products have excellent quality and competitive price.
Good after-sale services and 12 months warranty are visible.
Strictly testing and checking before shipping.
25 years experience in manufacturing and 10 years exporting experience.
Doing OEM for many famous brand. |
