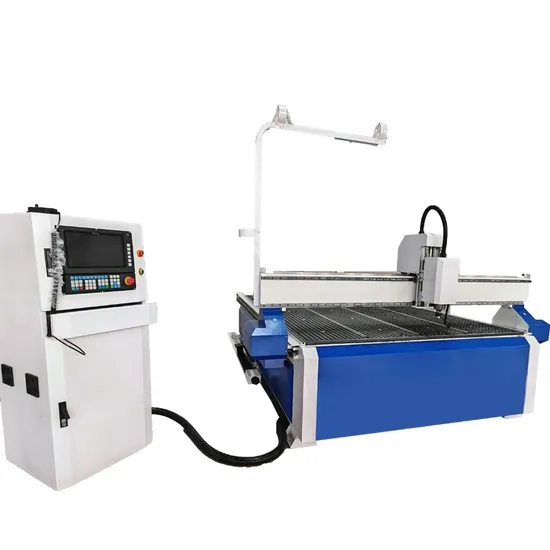

Customized Big Size Woodworking CNC Router Machine for Wood Furniture

Product Description

Product Description
This is one customized big size cnc router machine for woodworking, PVC, acrylic, aluminum , etc engraving, this machine can be with vacuum table if you need it, also can add water tank table as requirement. We also can customized the 2040, 2060, etc, contact with me freely to tell me your requirement, we can offer you good price.

Packaging & Shipping
Exporting plywood package for shipping

Application
1, Woodworking: Three-dimensional wave plate processing, cupboard doors, wooden doors, wooden doors process, doors, screens, process window processing, video game cabinets and panels, computer table and plate Auxiliary furniture products processing.
2, advertising industry: Advertising signs, logo production, acrylic cutting, forming system module, plastic sheeting, PVC pipe a variety of materials advertising the production of decorative products.
3, metal industry: A sculpture of copper, aluminum, iron and other metal molds,
4. Stone Granite, marble, Qingshi, sandstone, and other stone carvings
5, other industries: A variety of large-scale relief sculpture, video carving, widely used in process industries

Main Configuration
Thick steel welded bed structure with thick gantry bar
Taiwan HIWIN square guide rails
Helical rack ransmission for X and Y axis
Taiwan TBI ball screw for Z axis
Richauto A1 DSP control system
HQD 6KW air cooling spindle
Aluminum T-slot table with PVC
stepper motor and driver
SUNFAR inverter
Oil lubricating system
Dust collector with two bags 3 KW
Specification

Model		ZK-1325,2030,2040
X*Y* Z Working size		1300*2500*200mm,2000x3000x200mm,2000x4000x200mm
Feeding height		Can be 200~300mm,following order
Idling Speed		30000mm/min
Working Speed		6000mm/min
Repositioning Accuracy		<0.02mm
Spindle Running Speed		0-24000rpm
Machine body and working table		Steel structure lathe bed, T-slot table of sectional material body thickness is 3.5mm, 4.5mm, 6mm. 8~12mm.
Work holding		By clamps optional is vacuum table
Transmission system	X	HIWIN Square rail,helical rack and pinion
	Y	HIWIN Square rail,helical rack and pinion
	Z	HIWIN square rail on Z,Germany Imported double-net ball screw
Spindle	Power	6KW air cooling spindle
	Inverter	Fuling
	Collet diameter	Ø3.175-Ø12.7mm
Drive system		Stepper motor Leadshine driver 860,/ Yako 2811/ servo motor,
Control System		Ncstudio card (DSP NK105 is optional)
Oiling system		Automatic/ manual
Working Voltage		AC380V±30V, 50HZ (22V 50Hz), 220V single phase.
Command Code		G Code, (*.nc*.mmg, *.u00,etc), *.eng
running environment temperature		0 degree ~45 degree
relative humidity		30~75%
Working Software		Windows98/xp/7
Compatible Software		Type3/Artcam/UcancamV9/Castmate/corelerow/Autocad
weight		1000kg, 1200kg, 1300kg, 1600kg

Sample photos

Company Profile
We also have some other related machines
Customized big size 2030 model cnc router with vacuum table, can add the vacuum table and vacuum pump
Linear ATC cnc router machine that can change 12 cutters
2030 2040 model Aluminum T-slot table model cnc router
2030 model linear ATC cnc router with DSP controller

---
