automatic low cost normally open double electric control solenoid valve

Product Details

Product Description

Product Description

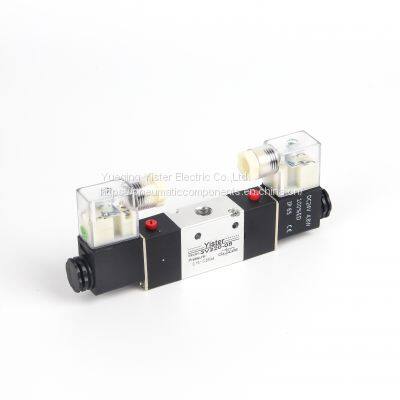

automatic low cost normally open double electric control solenoid valve
Order code
Symbol for 3V220 electric control valve
Technical parameter

Model	3V210-06	3V220-06	3V210-08	3V220-08
Fluid	Air
Acting	Internal pilot
Original state	NC(Normally closed),NO(Normally open);Double solenoid :no NC/NO
Lubrication	No required
Orifice size	14.0mm²		16.0mm²
Port size	In=out=G1/8''		In=out=G1/4''
Protective class	IP65
Pressure range	0.15-0.8MPa(21~114psi)
Proof pressure	1.2MPa(215psi)
Material of body	Aluminum Alloy
Temperature	-5℃~60℃
Response speed	<0.05s

Dimension for 3V220-06 Pneumaitc Solenoid valve
Feature
.2 Position 3 Way normally closed pilot Solenoid Valve 3v220-06 3v220-08
.DC12V DC24V AC220V air solenoid valve
.Valve stays open when the coil is de-energized- and it closes when energized..
.High-quality solenoid valve pilot head, sensitive response, response speed 5 times per second, stable performance.

---
