| US$22,000.00-42,000.00 | 1 Piece (MOQ) |

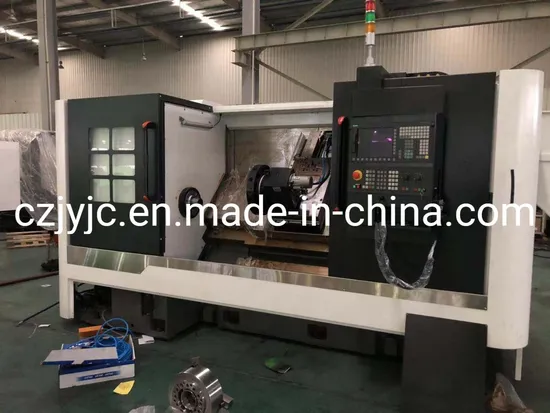

| ITEMS | CK-58 |
| Max. swing over bed | Ø 580 mm |
| Max. machining diameter | Ø 580 mm |
| Max. swing over toolpost | Ø 360 mm |
| Max.machining length | 960 mm |
| Distance between centers | 1320mm |
| Spindle nose | A2-8(Integral type) |
| Hydraulic chuck | 250mm |
| Spindle motor | 11-22Kw |
| Max.spindle speed range | 2600rpm |
| Spindle bore dia(mm) | Ø87 |
| Max.bar feeding dia(mm) | Ø72 |
| X/Z axis data | 4006/5010 |
| Max.travel of X/Z axis | 350/1120 |
| X/Z linnear guide-way data | 55 |
| Rapid travers rate X/Z | 12m/min 16m/min |
| X/Z axis positioning accuracy | ± 0.008 ± 0.012mm |
| X/Z axis accuracy of positioning repeatability | ± 0.0035mm ± 0.005mm |
| Turret and gang tools | Hydraulic turret |
| Quill diameter | Ø100mm |
| Quill travel | 120 |
| Max.tailstock travel | 1250 |
| Taper of quill | M.T.5 |
| Over size | 4170X1780X3000 |
| Weight | 5600kg |
