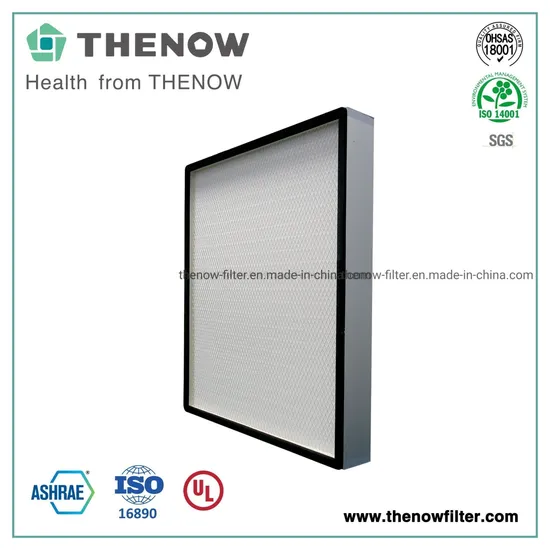

H13/H14/U15/U16/U17 Minipleat HEPA Filter for Cleanrooms

Product Description

Foreword:Thank you for your interest in advance!
It has been 16+ years since we processed the first HVAC air filter.
You can find various replaceable filters for Camfil, AAF etc. We have all kinds of frames and filter media available. As for prefilter and secondary filters, we buy the filter media of optimum quality from Chinese native market. Their quality is stable and super. As for the HEPA filters, the glassfiber media is from American Lydall and Suzhou H&V. We control the quality from the source.
There are plenty of testing machines in our laboratory including filter media testing and completed filters tested.
Welcome to have a Virtual tour to our factory by clicking the following:
https://thenow-filter.en.made-in-china.com/
Product Description
H13/H14/U15/U16/U17 Minipleat HEPA Filter for Cleanrooms for AHU in HVAC ventilating system
>Structure:

Frame	Filter Media	Seperator	Sealant	Gasket	Safe guard
Aluminum	Ultrafine glassfiber/ PTFE fiber	Continuous thermoplastic cord	Hot melt	EVA/EPDM	Color coated steel grid/Aluminum mesh

>Feature: Homogeneous filter media velocity coupled with low pressure drop Large surface area and high dust holding capacity Cost-efficient and dependable operation Light weight and easy to install Each filter element is tested for leakproofing before market release
>Application: Highly sensitive industrial processes (pharmaceuticals, biotechnology, chemicals, food and beverages, optics, micro-electronics, etc.) Sophisticated air-conditioning systems (theaters/intensive care units in hospitals and medical institutes, sterile rooms, labs, research centers, etc)
>Technical data: H11/H13/H14/U15/U16 EN1822; DOP 99%@0.3micron, 99.99%@0.3micron, 99.999%@0.3micron, 99.9997%@0.12micron, 99.99997@0.12micron Recommended final pressure drop: 2-3 times initial pressure drop DIN 53438 Flammability: F1 UL 900 Standard: Class 2 Thermal Stability: 70celsius Moisture Resistance: 100% RH
>Sam

W*H*D(mm)	Filter Class	Filter Area(m2)	Airflow/Intial Pressure Drop(CMH/Pa)	Airflow/Intial Pressure Drop(CMH/Pa)	Airflow/Intial Pressure Drop(CMH/Pa)
305*610*50	H13	3.88	235/115	300/135	570/275
	H14		235/130	300/160	570/290
	U15		235/135	300/170	570/320
	U16		235/150	300/190	570/350
1170*570*50	H13	14.77	840/115	1080/135	2040/275
	H14		840/130	1080/160	2040/290
	U15		840/135	1080/170	2040/320
	U16		840/150	1080/190	2040/350
610*610*70	H13	10.97	465/85	600/110	1130/210
	H14		465/95	600/125	1130/235
	U15		465/115	600/145	1130/290
	U16		465/130	600/165	1130/310
1220*610*70	H13	22.46	935/85	1205/110	2270/210
	H14		935/95	1205/125	2270/235

ple data: Company Profile >Company Show
Thenow Purification Technology has focused on air filtration for many years: 16+ years for HVAC air filter and 21+ years for Industrial dedusting dust collector air filters. We hope to bring the world more clean air with quality and environmental friendly filters.
>Certificates and Test reports
Standard is a ruler for the filters from all over the world. We have been trying to meet the most strict standard. Our HVAC air filters have been certified by CE, SGS and tested according to EN779, EN1822, Ashare and the latest ISO16890. You can rest assured when make a decision to buy. Click here if you want to see details.
>8+ years exporting experience
We have been to Powtech In Nurnberg in 2014, Achema in Frankfurt in 2015, AHR in Chicago in 2018, Chilliventa in Nurnberg in 2018. And our filters have been to all over the world: Europe, Middle East area, Africa, South Asian area, South American area and North American area.
>Professional Packing and Container Loading
Packing is important especially for carboard frame disposable filters and HEPA filters with glassfiber filter media. So we are very careful with it.

---
