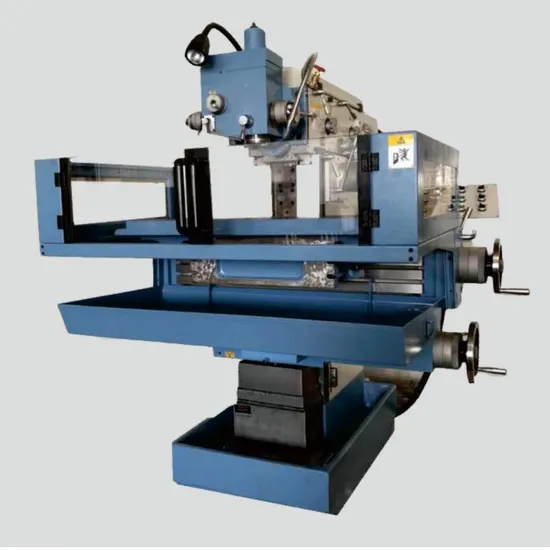

Universal Tool Milling Machine, Machine Tool

Product Description

Product Description
Application of machine:
This machine is designed to be a Universal Tool Milling Machine,can perform procedures such as milling,boring, drilling,and slotting,etc.,and is suitable for machining cutter, Fixture,die and mould,and other components with complex Figuration.With the aid of various special attachments.it can Machine all kinds of components such as spiral src,gear,rack Spline,and so on
Features:
1, Original structure,broad versatility,high accuracy,easy to operate.
2, With various attachments to extend range of application and raise utilization.
3, Model XS8140Awith programmable digital display system resolving power is uo to 0.01mm.
4, With protection cover on cutting zone of working table,ensur safe and clean. Product Parameters

Mainspecifications X8140A XS8140A
		Working table	Horizongtal working table(W×L)	800×400mm
			Vertical working table(W×L)	950×250mm
		Longitudinal/Transeerse/Vertical Travel		500/350/400
		Universal table	Horizongtal swivel	±360°
			Inclination to front and rear	±30°
			Inclination to front and right	±30°
		Vertical spindle head	Vertical travel of quill	60mm
			Axia inclination on left and right	±90°
		Horizongtal Spindle	Taper hole	ISO40
			The height from axis to ground	1330mm
			Min,distance between axia and surface of horizontal table	35mm
		Vertical spindle	Taper hole	ISO40
			Min,distance between nose and surface of horizontal table	5mm
		Horizontal and vertical spindle speed :steps/range		18steps()40-2000rpm
		Longitudinal,transeerse and vertical feeds:steps/range		18steps()10-500min
		Axial feed of quill of vertical spindle ; steps/range		3steps()/0.03-0.12mm/rev
		Power of main motor/Feed motor		3kw/1.5kw
		Max.table load/MAX.load of cutter		300kg
		Overalldimensions(LxWxH)/Netweight		182×164×171cm/1750kg
		Packing dimensions fou export/Gross weight		212×182×220cm/2100kg

The following special accessories are available if ordered:
1,Univereal table
2,Rotary table
3,Parallel vice
4,Dividing head
5. Slotting head Company Profile
Who We Are?
Founded on March 30, 2016, HANMING aims to provide customers with excellent products and services and industrial complete equipment solutions.
HANMING has always been standing in the perspective of every customer to deal with problems and ensure the timely and efficient handling of problems. Our salesmen are experienced senior marketing engineers who have been working in the industry field for many years, and our inspectors are technical engineers, which ensure our professionalism. Our products are mainly metal cutting machine, metal forming machine and other industrial equipment.
What Do We Can Do?
The core competitiveness of HANMING is having a strict quality management system and a team that can provide excellent services. We are familiar with the machine tool industry in China and know the positioning of products in various factories. We will select the most suitable machine tools for customers and ensure that after the completion of the machine tool, we will send quality control team to each factory for inspection to ensure that the machines delivered to customers are high-quality products that have been inspected. Our inspectors are also after-sales service personnel to ensure that every after-sales service problem can be timely communicated with each factory and give timely feedback.
Our Aim:
Relying on the keen market insight, HANMING makes forward-looking decisions on the changeable market and actively deals with and overcomes the difficulties encountered by the enterprise in various periods. Today, a steady and pragmatic team leads Hanming forward to open up a new world in the industrial export industry.

---
