Plastic Outdoor Garbage Bin Bucket Handle Making Machine Injection Molding Machine Waste Bin Trash Bin Making Machine

Product Description

Plastic Outdoor Garbage bin bucket handle making machine Injection Molding Machine Waste Bin Trash Bin Making Machine
Product Description

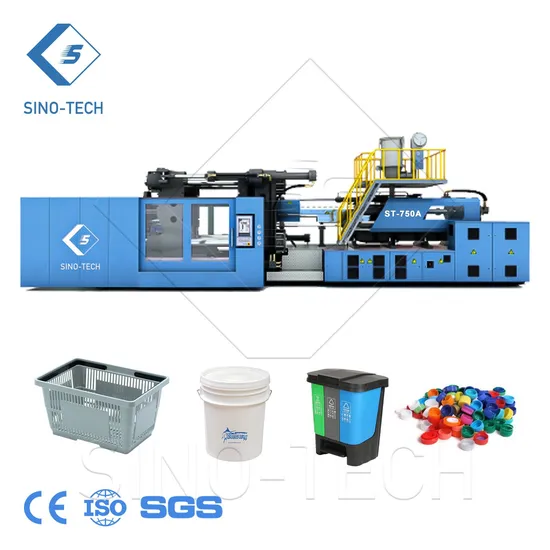

SINO-TECH ST-series with clamping force ranges from 70 to 4000 ton injection molding machine. Besides, we also have special machine for PVC, PET, Variable Pump, clear double color, servo-motor machine, high speed injection machine.
Main Features
1.Arch template, effectively protects the mold, especially suitable for big template with small mold.2.The electric ruler is installed on the crosshead, the position is more precise.3.The front connecting rod uses connected structure, increases the rod strength, and easy for assembly4.The connected tail-board stills itself with big lock shaft, improves tail-board strength, and ensures zero abrasion of the tail-board, easy for maintenance.5.Connected movable plate, improves its rigidity and reduces deformation6.Connected thrust bearing, improves its strength and stills itself with small lock shaft, ensures zero abrasion.7.Arch template fully complies with mechanical property, largely improves template strength.8.More reasonable toggle design, speeds and stabilizes mold opening and closing.9.Adjustable movable plate mounting plate, makes the installation easier.
10.Mixed design of T-shape groove and die hole, increases universality of the mold.
We are professional plastic injection molding machine manufacturer for all kinds of plastic products, Clamping force from 70 to 4000Ton, injection weight from 50 to 10000g. Also we have CE and ISO certification
Product Parameters

Item		1400JSell
Screw diameter	mm	100	110	125
Theoretical shot volume	cm³	3848	4657	6013
Shot weight (PS)	g	3646	4191	5412
Length/Diameter ratio	L/D	22.3	20.0	17.7
Injection pressure(high pressure and low speed)	MPa	215	178	138
Injection pressure(low pressure and high speed	MPa	156	129	100
Injection rate(high pressure and low speed)	cm³/sec	671	812	1048
Injection rate(low pressure and high speed)	cm³/sec	925	1119	1445
Plasticizing capacity (PS)	g/s	93	118	154
Injection stroke	mm	557
Screw speed	rpm	105
Injection unit force	Ton	20.0
Carriage stroke	mm	1000
Clamping force	Ton	1400
Opening force	Ton	149.4
Opening force	Ton	43.7
Max. daylight	mm	3050
Clamping stroke	mm	1650-2350
Distance btwn. Tie bars	mm	1460*1360
Min mould dimension	mm	1020*950
Mould thickness range	mm	700-1400
Ejector force	Ton	25
Ejector stroke	mm	350
No. of ejector pins	unit	29
Dry Cycle(Euromap 6)	S	7.1
Major motor	kW	132.5
System pressure	MPa	17.5 23
No. of heater zones	unit	5+1
Heater input power	kW	87
Ultimate capacity	kw	220.5
Current	A	268.0
Net weight	Ton	63
Oil filling capacity	L	2300

Seller Recommendation

Detailed Photos

Application

Company Profile

FAQ
1. who are we?We are based in Jiangsu, China, start from 2011,sell to North America(30.00%),South America(20.00%),Western Europe(16.00%),Oceania(10.00%),Mid East(10.00%),Eastern Europe(5.00%),Southeast Asia(5.00%),Africa(4.00%). There are total about 5-10 people in our office.2. how can we guarantee quality?Always a pre-production sample before mass production;Always final Inspection before shipment;3.what can you buy from us?Extrusion Blow Molding Machine,Pet Blow Molding Machine,IBC Cage Production Line,Plastic Extrusion Line,Waste Plastic Recycling And Pelletizing Line4. why should you buy from us not from other suppliers?Our company have the strict system from the material purchase,machine part processing and inspect. We have the detailed Assemble prcess according to the machine Assemble structure. We test not one time before the machine delivery to the customer factory.5. what services can we provide?Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery;Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian

---
