Automatic Finger Joint Production Line China Solid Wood Machine Production Line Finger Joint Machine Price for Woodworking Factory

US$60,000.00
1-4 Pieces
US$55,000.00
5+ Pieces

Basic Info.

Model NO.
MHZ1560
Warranty
1 Year
Voltage
3 Phase 380V
Air Pressure
0.6-0.8MPa
Dimension
24610*5220*1440mm
Total Power
48 Kw
Working Thickness
20-80 mm
Working Width
30-150 mm
Max Productivity
6-7 PCS, 6m Length/Each
Strip Length
150-850 mm
Max Press Force
7800kg
Application
Furniture Plant Solid Wood Board Wood Processing
Motor
Servo Motor
Certificate
CE ISO
Transport Package
Wooded Case Package
Specification
3100*1450*1550mm
Trademark
Wardwin
Origin
China
HS Code
84659900
Production Capacity
100/Month

Product Description

Product description

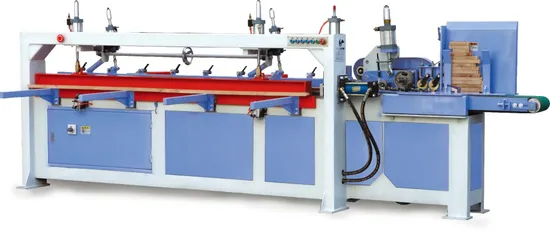

MHZ1560 Automatic Finger Joint Line
This machine with two shaper machines and one pressing machine, connect with different conveyors thus no save labor, this line total power 48.4kw, space 24m, need about 2 operators, can make 6-7 pcs
6m wood per minute.

This machine can make both horizontal and vertical finger joint, just adjust in the machine.
Product Function

Strap conveyor--Finger joint shaper--Transition strap conveyor--Finger joint shaper(with gluing)--Roller conveyor--Upender--Chain conveyor--Finger joint assembler
Product Specification

Model MHZ1560
Operator 2 persons
Productivity 6-7pc 6m/min
Working thickness 20-80mm
Working width 30-150mm
Feeding length 150-850mm
Finished assembly length 2000-6000mm
Shaper working table 850*600mm
Shaper spindle diameter 70mm
Shaper cutter outside diameter 160mm
Shaper spindle speed 5000rpm
Main saw spindle speed 2840rpm
Max. Hydraulic pressing force 7800kg
Shaper machine power 17.87kw*2
Conveyor power 0.75+2.25+3kw=6kw
Pressing machine power 6.7kw
Total motor power 48.4kw
Machine voltage 380v 50hz 3phase
Working air pressure 8Bar
Pressing method Cutting first then press
Finished wood length tolerance 1-2mm
Machine space 24610*5220*1400mm
Weight 10000kg

Detail Photos

Factory Details
