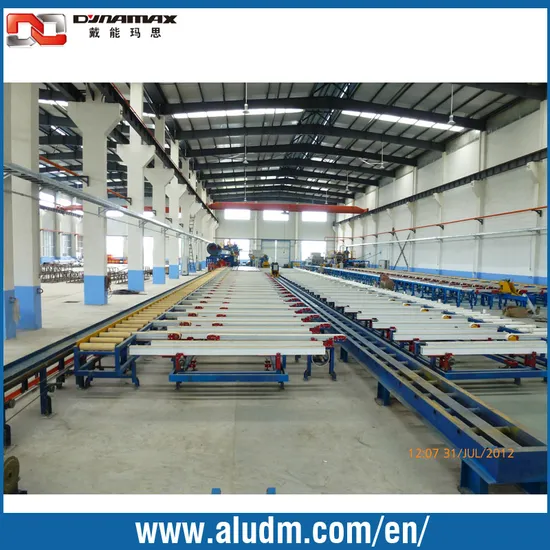

Energy Saving Aluminum Extrusion Machine in Profile Cooling Tables

Product Description

. --Extruder models: 700T direction: ?
--Specification:L: 32m W: 6m spacing: 1.2m all 26
--type:Four felt belt drive.
--Total power: 43KW
--Air consumption: 1m³/,0.4-0.7MPa
. Initial table
--Dimensions:L7000×W530 ( equipped with clamp)
--Felt roller with high transmission:70×50×400mm Roller spacing:400mm Temperature:600ºC
--Saws with manual break,With aluminum scrap recycling bins
--Air-cooled devices: the top with a long nozzle fan 0.37kw 8sets
. Run-out table ( hydraulic lift) folded plate
--Dimensions:L32000×W530×H850mm
--Felt roller with high transmission:96×76×400mm Each cell 3 Roller spacing:400mm Temperature:500ºC
---- Axial fan with the number: 10, 180W / Taiwan;
--Hydraulic lifting device 1 set;power: 4KW

---
