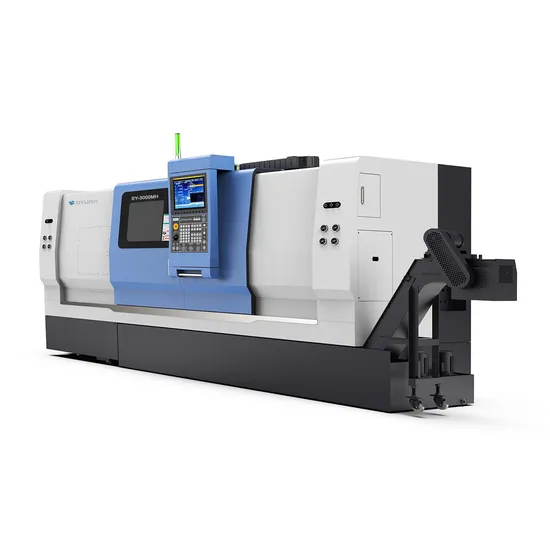

Automated CNC Lathe Machine CNC Turning Center with Y Axis

Product Description

Product Description
The Automated CNC Lathe Machine with Turret by Ningbo Oturn Machinery Co., Ltd features a meticulously engineered 30-degree inclined bed structure design. This machine guarantees high precision, exceptional rigidity, and superior cutting stability. Crafted from high-strength HT300 cast iron, the one-piece robust bed structure is optimized through finite element analysis, ensuring outstanding mechanical rigidity and stability. It maintains long-term precision reliability, enhancing processing stability and extending tool life. The stress relief treatment further refines precision stability. Additionally, the high-strength hard rail structure and the screw pre-tensioning design in the transmission system significantly elevate the rigidity performance of this machine. Main features of this machine tool: 1. The spindle unit features an independent sleeve design. The spindle system undergoes rigorous dynamic balance tests, ensuring high precision, good retention, minimal thermal deformation, and excellent thermal stability. With a maximum speed of 2500rpm and a nose deflection accuracy within 0.003MM, the front end employs a large-diameter, high-precision double-row roller bearing coupled with an oblique contact ball bearing structure. The optimal span two-point balanced support design can handle both radial and axial loads, making it suitable for high-speed precision cutting as well as low-speed heavy cutting. This versatility is ideal for mass production of complex, high-precision, and high-finish products. 2. The high rigidity servo power turret enhances rapid and precise tool change performance. Paired with the high-speed power shaft's power milling, it achieves outstanding turning and milling processing capabilities. The tool holder features a high-rigidity BMT installation interface and is driven by a servo spindle motor. 3. Equipped with hard rail guide rails and precision-ground ball screws, this machine ensures optimal precision and durability. Each axis employs a direct transfer structure and a double anchor pre-relay method to minimize thermal displacement, significantly improving machining accuracy. The outstanding precision and durability are further enhanced by each axis's direct transfer structure and double anchor pre-relay method, which minimize thermal displacement, thus greatly improving machining accuracy. 4. The machine comes with a comprehensive hydraulic and lubrication system, featuring high-quality hydraulic pumps and valves. This design minimizes failure rates, ensuring reliability and simplicity. It also includes centralized quantitative automatic lubrication. 5. The hydraulic tailstock features a high rigidity integral structure, eliminating vibration and providing excellent stability. Sleeve expansion and contraction are facilitated by a hydraulic cylinder, making the process convenient, fast, and reliable. 6. Equipped with a Taiwan rotary chuck oil cylinder and an automatic chip removal device, this machine significantly reduces operator labor intensity, ensuring safe and efficient production. These functional components are programmable for added convenience. Special fixtures are also available.
Product Parameters

Name	Unit	SY3000MH
Max. swing diameter over bed	mm	Φ640
Max. processing diameter	mm	Φ460
Max. swing diameter over cross slide	mm	Ф350
Max. processing length	mm	3250
Spindle nose	/	A2-15
Chuck	"	15
Spindle bore diameter	mm	Ф132
Bar diameter	mm	Ф117
Max. Spindle speed	rpm	1500
Spindle motor power	kw	26KW
Motor torque 248 pulley ratio; 1:2	Nm	496/706
X/Z travel	mm	280/3310
X/Z Specification of shaft guide		Box way
X/Z Shaft motor torque	Nm	18.6
X/Z motor power	KW	2.9/2.9
X/Z axis moving fast	m/min	18/18
Positioning accuracy	mm	±0.005
Repeatability	mm	±0.003
Power turret	/	BMT65-12T/ER32
Power turret motor	Kw	5.0/7.5
Max speed of power turret	Rpm	5000
The specification of outer diameter tool holder	mm	25x25
The specification of inner diameter tool holder	mm	Ф50
The adjacent tool change time	sec	0.2
Programmable hydraulic tail seat		Hydraulic
The biggest stroke of the tail	mm	3180
Morse Slideway	type	Morse5#
Sleeve diameter	mm	Ф100
Sleeve travel	mm	80
Machine size	m	9700*2350*2200
Machine Weight	kg	12500
Cutting fluid tank volume	L	250
Cutting water pump	kw	0.75
Hydraulic unit box volume	L	40
Hydraulic oil pump motor power	kw	1.5
Lubricant tank volume	L	2
Automatic lubrication pump motor power	W	50
Cooling water pump power	W	750

Products Configurations
Company Profile

Quality Control
Our Advantages
FAQ
Q1: How can I choose the most suitable machines?
Please provide your specifications, and we will recommend the ideal model for you. Alternatively, you can select a specific model yourself. Feel free to send us your product drawings, and we will ensure you get the most suitable machine.
Q2: What are the main products of your company?
We specialize in a wide range of machines, including CNC Lathe Machines, CNC Milling Machines, CNC Turning Machines, Vertical Machining Centers, Horizontal Machining Centers, Lathe Machines, and Turning and Milling Composite Processing equipment.
Q3: Where is your factory located? How can I visit there?
Our five factories are situated in Guangzhou, Quzhou, Ningbo, and Guangdong. You are warmly invited to visit us.
Q4: How do you handle transportation?
We offer comprehensive transportation solutions including DDP, CIF, FOB, and FCA.
Q5: What are the payment terms?
Payment terms are T/T, with a 30% initial payment upon order and a 70% balance payment before shipment.
Q6: What is the Minimum Order Quantity (MOQ)?
A: The MOQ is 1 set, though for some lower-cost machines, it may be more than 1 set.
We want to know:
1. We strongly recommend that you provide the size and material of your workpiece for our evaluation. If possible, please send us a drawing of the workpiece so we can suggest the most suitable model.
2. If you need a CIF price, kindly provide the port of destination.

---
