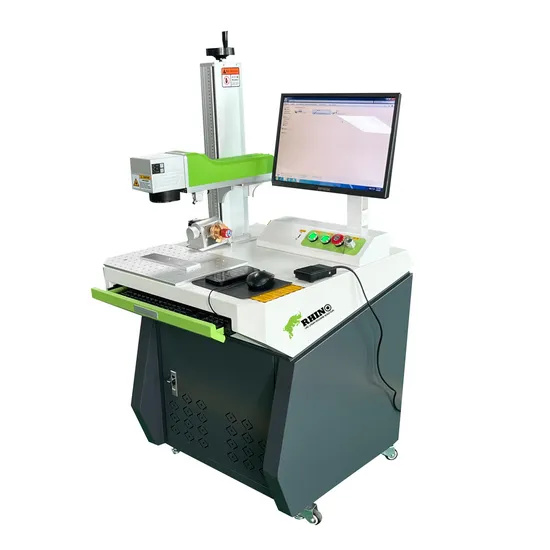

2.5D 3D Class1 CE 20W 30W 50W 60W 100W Desktop Fiber Laser Marking Marker Machine Deep Engraving for Metal Aluminum Brass Gold Silver Jewellery Relief

Product Description

Best Quality Class1 CE Economic 2.5D 3D 20W 30W 50W 60W 100W Desktop Fiber Laser Marking Machine for Metal Aluminum Stainless Steel Jewellery
Product Parameters
Fiber Laser marking machine Technical Parameter :

Tems (fiber laser marking machine)		RF- 30	RF-50
Laser Generator	Wavelength (μm)	1.06
	Light Spot Quality (M2)	<1.2
	Power(W)	20	10
	Impulse Frequency (KHz)	20~80
	Type of Cooling	Air cooling
Work Index	Marking Area (mmXmm)	110X110/200x200/300mx300mm		150X150/200x200/300mmx300mm
	Focal Length (mm)	163		254
	Working Distance (mm)	184		288
	minimum linewidth (mm)	0.02
	Minimum Character (mm)	0.2
	Marking Line Speed (mm/s)	0~7000
	Graphic Format Supported	BMP,PLT,AI,DXF etc.
Power Supply	Voltage	AC220V±10%
	Frequency (Hz)	50/60
Size	Main Machine (mmXmmXmm)	750 X 600 X 1270
Weight	Main Machine (kg)	80 (estimation)
Work environment	Environment	Clean, no dust or less dust
	Temperature(°C)	10~35
	Humidity	≤75% (Non-condensate)
Others	Total Power(kW)	1
	Safety Protection Level	IP54
	Laser Safety Level	Class 1

Product Description
Fiber laser marking machine Introduction:
Fiber laser marking machine is specially developed for metals marking industry by Rhino LaserCompany.
This machine was equipped with original American RF and high-speed galvanometer,the speed is extremely fast and the precision is very high. The machine performance is steady and can continuously working 12 hours. The optical system is fully sealed, it can prevent the dust enters laser body and reduces the equipment failure rate.
With technology develop this machine can work 2.5D 3D relief perfectly well with our EZCAD3.0 software !
Our Advantages
Main Features :
1. Updating to 3th-generation laser marking machine.
2. High quality laser path suitable for delicate marking. Reaching nearest to the limit of diffraction.
Exporting TEMOO of fundamental transverse mode. M2 near to 1. Beam divergence angle is
only 1/4 ofdiode laser. Focus dot diameter is not over 20 um.
3. High pulse repeating rate and stable power bring high speed laser marking. Unit pulse power
surge is lower than 1%. Easy control laser dot size, thickness and shape.
4. High speed 2-3 times over than traditional diode pumped marking machine.
5. Air-cooling smart machine size!
6. Long lifetime. Ultra-low power consumption of 0.5 kw.
Efficiency conversion reach to over 30%.
7.Color marking for option

Material & Application
Applicable Materials:
leather, wood, textiles, plastics, acrylic, glass, crystal, stone, MDF, dual-color board, organic glass, paper, jade, agate,stainless steel, aluminum and other metal surface marking.

Applicable Industries:
The equipment is widely used in food and beverage, pharmaceutical, tobacco, leather, packaging, building materials, lighting, accessories, cosmetics, electronics and other industries, low consumption, non-toxic, no pollution.

Samples
Marking samples:

Company Profile
About RHINO
Jinan RHINO CNC EQUIPMENT Co.,Ltd was founded in 2010.
With all staff persistence and hard working,RHINO laser has developed to a large-scale international manufacturing company.More accuracy,more automatically and higher quality products with intimate after-sales service enables RHINO
be the leader of laser industry.Suitable services for customers,2year warranty products,standard scientific management make bodor earn the best reputation and word-wide trusted customers.
RHINOlaser machines cover all Chinese market and also very popular in America,West Europe,South Asian,East Asian etc. More than 80 countries.Welcome you to join Bodor family,share top laser products and services together with word-wide customers.

---
