Basic Info.
Connections
Wi-Fi and Bambu-Bus
Operating System
Windows, Mac Osx
Printing Area
180 X 180 X 180 mm
Display
2.4-Inch IPS Touch Screen
Filament Diameter
1.75 mm
Transport Package
385X430X495mm
Specification
386 x 389 x 458 mm
Production Capacity
20000units Per Year
Product Description

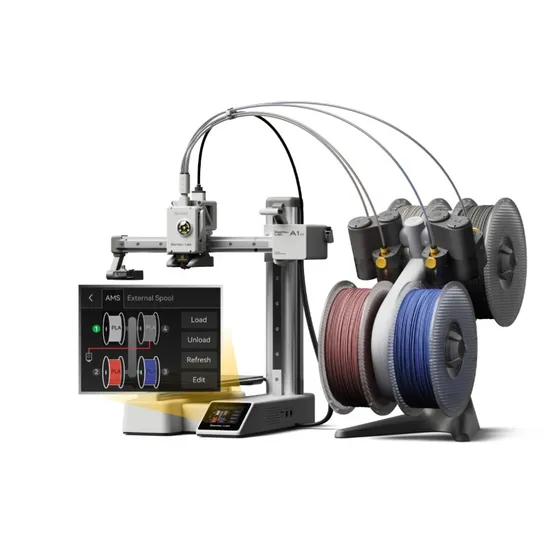

3D Printer Bambu lab A1mini combo Product Parameters
Printing technology | plastic filament (FDM/FFF) |
Printing area | 180 x 180 x 180 mm |
Consumables | PLA, PETG, TPU and PVA |
Display | 2.4-inch IPS touch screen |
Print speed | 500 mm/sec |
Filament diameter | 1.75 mm |
Auto-calibration | Yes |
Net weight | 9.5kg |
Package size | 385x430x495 |
Gross weight | 10 kg |
Machine dimensions | 386 x 389 x 458 mm |
Print platform | Steel |
DIY (assembly kit) | None |
Extruder temperature | 300 °C |
Table temperature | 80 °C |
Connectivity | Wi-Fi and Bambu-Bus |
Software | Bambu Studio, Cura |
Filament sensor | Yes |
Print recovery | Yes |
Nozzles | 0.4 mm |
Number of print nozzles | 1 |
File format | 3MF, STL |
Operating System | Windows, Mac OSX |
Print bed material | PEI coated spring steel sheet |
Detailed Photos
Quick setup: pre-assembled and pre-setup, first use setup only takes about 20 minutes.
Quiet operation: noise levels below 48 dB for offices, homes and educational institutions.
Printing capabilities: working volume of 180 x 180 x 180 mm, print speeds of up to 500 mm/s, extrusion temperatures of up to 300°C and print bed temperatures of up to 80°C. Supports a wide range of materials including PLA, PETG, TPU and PVA.
High-quality build: The body is made of high-quality steel and aluminum, with all-metal linear guides in the X and Z axes, and all-metal guides in the Y axis.
Durable Hot Ends: All-metal hot ends with stainless steel nozzles (0.4mm) support quick change.
High-performance controller: Dual-core Cortex M4 controller.
Acceleration up to 10,000 m/s², max. head speed 10 m/s², max. extrusion speed 28 mm³/s.
Automated calibration and adjustment: including automatic filament tension calibration and one-touch filament loading/unloading.
Vibration Compensation Technology: Active vibration compensation in XY-axis for improved printing accuracy.
Intelligent Flow Control: Predicts and regulates the flow of molten plastic to improve extrusion accuracy.
Filament Measurement System: Includes filament tension, position and pressure sensors to ensure accurate filament management.
AMS Lite System: Automatic multi-color, multi-material printing system supporting up to 4 spools of filament.
User Interface: Connected via Wi-Fi and Bambu-Bus, 2.4" IPS touch screen, controllable via mobile or web application, built-in slicing software Bambu Studio.
>>
