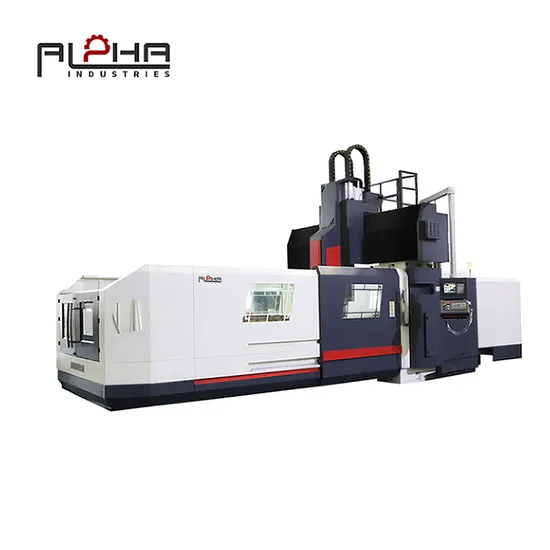

Hot Selling High Precision Equipment Xh Series Horizontal Machine Center

Product Description

Product Parameters

Model				XH4022		XH3019
Worktable		Worktable		1800mm		1500mm
		Table Length		4000mm		3000mm
		Max.load of table		12000KG		8000KG
		T-slots(width/distance/number)		28x180x9		22x160x9
Travel		X-axis Travel		4200mm		3100mm
		Y-axis Travel		2500mm		1900mm
		Z-axis Travel		1000mm		900mm
		Distance from spindle nose to worktable		200-1200mm		150-1050mm
		Distance between two columns		2200mm		1900mm
Spindle		Spindle taper		BT50-190		BT50-190
		Spindle motor		15-18.5/22-26KW		15/18.5KW
		Spindle speed		6000rpm		6000rpm
		Magazine capacity		24		24
Feed speed(X/Y/Zaxis)				1-8000mm/min		1-8000mm/min
Rapid feed speed(X/Y/ Zaxis)				12/12/10m/min		12/12/10m/min
Positioning accuracy-X				0.025mm		0.020mm
Positioning accuracy-Y				0.020mm		0.015mm
Positioning accuracy-Z				0.018mm		0.015mm
Repeatability Positioning accuracy-X				0.016mm		0.012mm
Repeatability Positioning accuracy-Y				0.012mm		0.010mm
Repeatability Positioning accuracy-Z				0.012mm		0.010mm
Dimension				10200x5200x5300mm		8300x4300x4900mm
Weight				35T		23T
•Note: other models are available on request.
Model			XH2519		XH2514		XH2014
Worktable	Worktable		1500mm		1200mm		1200mm
	Table Length		2500mm		2500mm		2000mm
	Max.load of table		7000KG		6000KG		5000KG
	T-slots(width/distance/number)		22x160x9		22x140x7		22x140x7
Travel	X-axis Travel		2600mm		2600mm		2100mm
	Y-axis Travel		1900mm		1400mm		1400mm
	Z-axis Travel		900mm		800mm		800mm
	Distance from spindle nose to worktable		150-1050mm		150-950mm		150-950mm
	Distance between two columns		1900mm		1400mm		1400mm
Spindle	Spindle taper		BT50-190		BT50-190		BT50-190
	Spindle motor		15/18.5KW		15/18.5KW		15/18.5KW
	Spindle speed		6000rpm		6000rpm		6000rpm
	Magazine capacity		24		24		24
Feed speed (X / Y / Z axis)			1-8000mm/min		1-8000mm/min		1-8000mm/min
Rapid feed speed (X /Y/ Z axis)			12/12/10m/min		12/12/10m/min		12/12/10m/min
Positioning accuracy-X			0.018mm		0.018mm		0.016mm
Positioning accuracy-Y			0.015mm		0.015mm		0.015mm
Positioning accuracy-Z			0.015mm		0.015mm		0.015mm
Repeatability Positioning accuracy-X			0.012mm		0.012mm		0.012mm
Repeatability Positioning accuracy-Y			0.010mm		0.010mm		0.010mm
Repeatability Positioning accuracy-Z			0.010mm		0.010mm		0.010mm
Dimension			7300x4300x4900mm		7300x3800x4700mm		6300x3800x4700mm
Weight			20T		17.5T		15T

Company Profile
Certifications
Exhibition
Packaging & Shipping
FAQ
FAQs
Q1: How is the warranty?
A1: Warranty time is 15 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: We have stock for popular models, we produce according to order.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 40 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services under Alpha brand.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.

---
