US$63,000.00-87,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Usage
Ceramics, Granite, Marble
Application
Construction, Mineral Industry, Stone Industry
Source Voltage
220V/380/415
Cutting Ability
High Speed
Max Processing Size
2500*3800*390mm
Blade Rotating Degree
380
Blade Tilting Degree
-1-95
Worktable Tilting Degree
0-85
Transport Package
Container
Specification
5800*3500*2900mm
Product Description
Product Description
What it is?

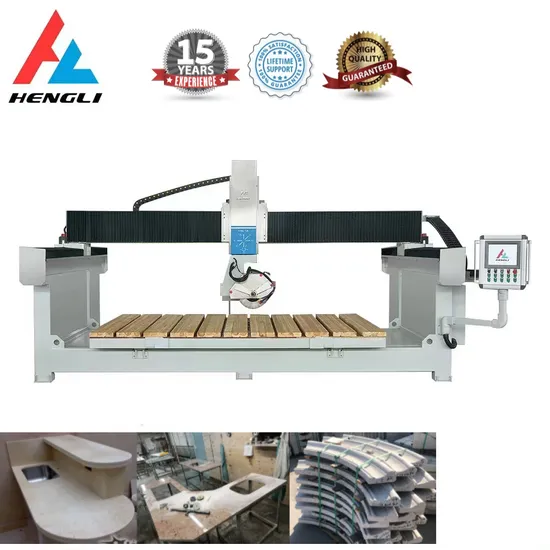

A range of complex processing operations can be achieved by our 5 Axis CNC working centers including cutting, milling, and drilling. It is ideal equipment for processing such as countertops, sinks, and so on.
The Structure
The main parts of this machine include A worktable can tile up to 85 degrees; A cutting head can rotate from 0 degrees to 380 degrees and tile from -1 degree to 95 degrees; A solid crossbeam and two support columns; An intelligent system; Allowing users to draw and set up the shape, figure, and size they need for the stone before processing. Users can also import a CAD/CAM file through the USB interface. Providing a demonstration on the screen before processing, helping users to understand and monitor. The start point is automatically located, and the best routine of the processing head, and the best arrangement of the stone are automatically provided. This helps the owner to save material and increase efficiency. Enabling users to receive remote technical fault diagnosis and support. Including both English and Chinese versions.
More details
1. Our company works with two software companies one is ESA from Italy and one is Taida from Taiwan. Clients can either choose the ESA system or the Taida System.
2. All electrical parts of these machines are from well-known companies in the world.
3. High precision of finished products.
Finished Products
Product Parameters
Parameters | Unit | CNC-5A |
Blade Diameter | mm | 350-500 |
Maximum Stroke(X-Y-Z) | mm | 2500-3800-390 |
Blade Rotating Degree (C) | n° | 380 |
Blade Tilting Degree (B) | n° | -1-95 |
Worktable Size (L*W) | mm | 3500*1900 |
Worktable Tilting Degree | n° | 0-85 |
Main Motor Power | Kw | 18.5 |
Water Consumption | m3/h | 4 |
Overall Dimensions (L*W*H) | mm | 5800*3500*2900 |
Our Service
Pre-service
Before the sale, we welcome customers to visit our factory or to help arrange to visit our existing customers' factories. Professional purchasing advice. We guarantee all of our machines will be checked and tested before handing over to our customers.
After Sales Installation services: In many counties including America, Canada, Malaysia, Singapore, Africa (most African countries), Australia, and New Zealand, we have some regular staff or working partners in those countries to provide service. For other counties, we will send staff from our company to provide installation service. One-year warranty for all of our machines. For those machines out of warranty, we can still provide technical support. We work with many transportation companies with a good reputation and competitiveness in price. Related Products
FAQ
Q: Are you a manufacturer? A: Yes, we are a professional and top stone machine manufacturer for more than 15 years in China. We have our own factory. Also, we have many authorized agents all over the world to take care of machines after selling service.Q: Can I get a machine according to my own requirements? A: Yes. If customers have special requirements for machines. We are happy to adjust or redesign our machines to meet the needs of customers. Q: This is the first time I use this kind of machine, is it easy to operate?A: All of our machines are easy to operate. Additionally, an English instruction manual will send to you with the machine. If there is still have any questions, we will provide a free professional online guide for you until you could use the machine well. Q: What's your MOQ and delivery? A: Our MOQ is 1 set. We could send the machine to your country port or to the door directly, please tell us your port name or address. We'll offer the most competitive price and freight to you.Q: How is your after-sales service? A: We offer machine lifelong's free online guide service. And many countries we have local dealers to do machine installation and maintenance.
Company Profile
HENGLI was established in 2007. We are a designer and manufacturer of stone processing machinery in Quanzhou China. Our range of machines mainly includes stone cutting machines, stone polishing machines, stone profiling machines and 5-axis stone working centre (multiple functions). We have our own technical team to constantly improve the function and quality of our machines, and we also have a great sale team to support our customers. We sell our products to many countries such as the USA, Canada, Australia, Turkey, Vietnam, Brazil, Russia, South Africa, Malaysia, Oman, India, and so on. We are very active in attending different international stone exhibitions to get feedback from customers. Customers' feedback is the most important to us. It helps us to constantly improve in service and quality, which it is always our belief since the beginning of this company. We can't wait to sell our products to more countries and to meet more customers.
>>
