19 Rollers CNC Used for Chassis Cabinet Mesh Panel Manufacturing High-Precision Metal Sheet Plate Straightening Equipment

Product Description

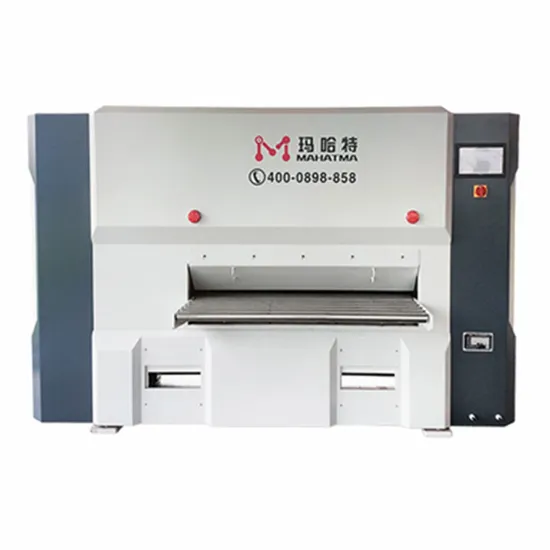

CNC High-precision straightening machine equipment with 19 Rollers
Model details

Model	MHTM50-400-19	MHTM40-600-19	MHTM50-800-19	MHTM50-1000-19	MHTM50-1300-19	MHTM50-1600-19	MHTM50-2100-19
Width	0-400mm	0-600mm	0-800mm	0-1000mm	0-1300mm	0-1600mm	0-2100mm
Roll diameter	50	50	50	50	50	50	50
Rated thickness	0.8-4.0mm	0.8-4.0mm	0.8-4.0mm	0.8-4.0mm	0.8-4.0mm	0.8-4.0mm	0.8-4.0mm
Maximum thickness	8.0	8.0	8.0	8.0	8.0	8.0	8.0
Number of rolls	19	19	19	19	19	19	19
Shortest part	90	90	90	90	90	90	90
Leveling speed	0-10m/Min	0-10m/Min	0-10m/Min	0-10m/Min	0-10m/Min	0-10m/Min	0-10m/Min
Voltage	3-phase 380v	3-phase 380v	3-phase 380v	3-phase 380v	3-phase 380v	3-phase 380v	3-phase 380v

Normal MHT CNC High precision Leveling Machine	MHTM10	10	0.03-0.6	100-300	31	20
	MHTM15	15	0.08-1.0	100-600	31	30
	MHTM20	20	0.3-1.2	200-1600	23	40
	MHTM30	30	0.5-2.0	400-3000	23	60
	MHTM40	40	0.6-3.0	400-3000	21	70
	MHTM50	50	0.8-4.0	400-3000	19	90
	MHTM60	60	1.0-6.0	400-3000	21	100
	MHTM80	80	2.0-8.0	400-3000	19	130
	MHTM100	100	3.0-12.0	400-3000	19	160
	MHTM120	120	4.0-16.0	400-3000	19	190
	MHTM150	150	6.0-25.0	600-3000	19	240
	MHTM200	200	8.0-30.0	800-3000	15/19	310
	MHTM250	250	10.0-40.0	1000-3500	15/19	390
	MHTM300	300	12.0-50.0	1000-4000	15/19	480

Drawings
The Leveling principle and how should we leveling it?

Detailed Photos

CNC Leveling machine function

The CNC precision leveller uses the "Bauschinger effect" of the material to bend the sheet metal several times, regardless of the degree of original bending, under the conditions of a large elastic-plastic bending, gradually reduce bending deflection, so that a variety of original curvature gradually become a single curvature, and eventually straighten it to meet the process requirements of the leveling accuracy.
Numerical control leveling machine has been widely used in industry, with advanced technology, high leveling accuracy, wide range of technology, high degree of automation, reliable and stable work under high strength, etc. , after a series of alternating bending of metal plates, through motor and PLC control of each leveling drum under precise control of the pressure, the elimination of internal stress, the leveling effect caused by different stress in different parts of the plate is not ideal, thus achieving high precision leveling.
Compared with other levelling methods, the control system of this machine has the functions of storing, calling, editing process and equipment parameters, and has the function of misoperation identification and early warning. When in use, on the operating table, you can set the reduction amount of the inlet and outlet according to the parameters such as plate thickness and plate width or the parameters already in the database, so as to realize the electric adjustment of the working roller, the inlet and outlet clearance, etc. , it can be adjusted and corrected by hand.
This machine adopts Panasonic PLC controller and Delta frequency converter to control the running speed. All actions of the machine are controlled by the operation table. The touch-type man-machine interface display screen makes the operation panel easy to understand, install emergency set switch at four prominent positions at the machine entrance and exit to ensure safe operation! And equipped with digital display displacement, the operation is very simple and rapid. It only takes a few seconds to straighten out high-precision and complicated hardware that usually takes a long time to be hand-leveled.
CNC leveller is the first choice for vehicle manufacturing, locomotive manufacturing, construction industry, medical technology industry, chassis manufacturing, textile machinery, sheet metal processing, etc. . It plays an important role in verticality, parallelism, appearance and precision of industrial structure
Detals Operation:
Step 1: Recording the material thickness and plane distortion
Step 2: Turn on the power and input the material thickness
(If the material thickness is 1mm, input 1 in the NC interface to set the left feeding value, right feeding value, left discharging value and right discharging value)
Step 3: Put the material into the leveling machine for leveling(Click Forward start and put the material into the leveling machine for leveling)
Step 4: Check the flatness of materials
(Put the material on the marble platform and measuring material accuracy. If it fails to meet the leveling requirements, according to step 5)
Step 5: Adjust the accuracy again(According to the adjustment of front tightening and rear loosening, adjust the left feed setting
value and right feed setting value downward by 0.5mm, and the left and right discharge do not move)
Step 6: Check the flatness of the material again to achieve the effect
Step 7: Finish debugging, turn off the power supply and clean the interior and surface of the
FAQ
01.How much do you charge for the services One purchase, lifetime service. We always provide free online problem-solving, and if the warranty period is exceeded, all equipment parts can be purchased at the factory price.
02.Do you have after sales support? Yes, we are happy to give advice and we also have skilled technicians available 24hrs online. We need your machines running in order to keep your business running.
03.I am not sure if this machine suitable for my work? Don't worry, just tell me your working materials, specifications of workpieces, like width, thickness and length, then I will recommend you the most suitable machine for you.
04.Are you factory or trading company? We are factory, which manufactures CNC Leveling Machines , with 20 years experience in CNC machine's industry.
05.How can i do if the machine goes wrong? If confronted with such problems,online service is offered,you could contact our sales. Also,we offer engineer delivery service.Please contact us asap and don't try fix the machine by yourself or someone else. We will response within 12 hours as quick as we can to solve it for you.

Company Profile
MAHATMA is a high-end brand of Guangdong Dayongsheng Science and Technology Co, Ltd. It is a high-tech enterprise dedicated to research and development, production and sales of precision metal leveling machines, automatic loading and unloading and leveling detection production lines.
MAHATMA follows closely the development trend of precision leveling/straightening equipment in Germany and Switzerland, and cooperates with many institutes of higher learning, constantly carries out technological innovation and production improvement, and combines with the production demand of domestic small and medium-sized metal parts manufacturing enterprises, adopts innovative design ideas, advanced manufacturing technology and research and development. Production of hydraulic precision leveling machine, CNC precision leveling machine, quadruple precision leveling machine, six-fold leveling machine, automatic leveling tester, automatic loading and unloading leveling detection production line etc. MAHATMA has become an excellent manufacturer of general precision leveling equipment for plate and sheet parts in China. For customers to save manpower, create perfect workpieces, create maximum benefits, has been widely used in automobile and motorcycle accessories, precision chains, spinning machine parts, elevator parts, cabinets, saw blade matrix and other precision machinery manufacturing factories.
MAHATMA has spent more than twety years developing various kinds of precision leveling and straightening machinery and equipment, mastering the core technology of precision leveling and straightening technology, many of which are pioneered by the industry. It is this spirit of continuous research and development that keeps MAHATMA competitive, excellent product performance, quality and service as well as high quality. The unit price of price ratio makes Mahart famous in the world and pushes the leveller into a new era. Always adhere to R&D - to solve customer innovation, production - to provide customers with high-quality equipment; Sales - to provide customers with satisfactory service as the company's philosophy, determined to become a global professional metal finishing equipment manufacturer, for the vast number of domestic and foreign machinery manufacturing enterprises to provide cost-effective equipment and services! Welcome friends from all walks of life to visit, guide and business negotiation!

---
