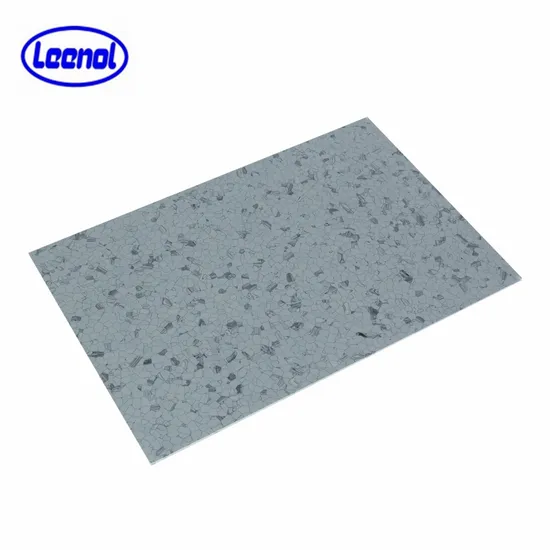

PVC Waterproof Flooring 600mm*600mm Size Anti-Static Flooring ESD PVC Floor

Product Description

Product Description PVC Waterproof Flooring 600mm*600mm Size Anti-static Flooring ESD PVC Floor

The floor uses the PVC resin as the main component,and utilizes the plastic particle interfaces to form the permanent conductive/anti-static network. In addition, they feature abrasion resistance corrosion resistance, long life, ageing resistance and low dust emission etc.

Application:

The main material of esd floor is PVC resin, which made with special process. The conductive or anti-static network between PVC 2 particles make pvc floor anti-static or conductive permanently. Its surface seems like marble, which have very good decoration results. It is widely used for telecom, electronics industries, cell-type machine room,PC room and cleanroom workshops etc, which have purification and anti-static request.


Techinal data:

Item	Standards	Conductive floor	Dissipative floor
Thickness	EN428	2.0mm 2.5mm 3.0mm
Size	EN426	600*600mm/900*900mm	600*600mm/900*900mm
Weight	EN430	2.0mm-3.8kg/m2; 2.5mm-4.8kg/m2; 3.0mm-5.8kg/m2
Electric Properties	DIN511953 ASTMF-150 OR NFPA99	2.5*104~106 ohm	106~109 ohm
Decay Time	SJ/T10694-2006(1000V +/- 100V <= 2s)	Equal 0.4s	Equal 0.4s
Charge Voltage	SJ/T10694-2006( V < 100V)	Equal 70	Equal 70
Combustion Properties	SJ/T11236-2001 (<10s)	Equal 0.35SFV-0	Equal 0.35S FV-0
Fire Resistance	GRADE DIN4102	B1	B1
Wheel Pressure	EN425	No Influence	No Influence
Amount of anti-wear	SJ/T11236-2001 (<=0.020g/cm2 1000R)	Equal 0.014	Equal 0.014
Anti-wear Properties	EN660PT2	ITEN-T<2.0 mm3	ITEN-T<2.0 mm3
Residual Concavity	EN433/DIN51955	0.03mm (2.0mm) 0.035mm (2.5mm) 0.04mm (3.0mm)	0.03mm (2.0mm) 0.035mm (2.5mm) 0.04mm (3.0mm)
Color Fastness	ISO105BO2	At least 6	At least 6
Dimensional Stability	EN434	>=0.10%	>=0.10%
Resistance to chemicals	DIN423/DIN51958	Offers excellent resistance ask for special sheet	Offers excellent resistance ask for special sheet
Impact sound absorption	VLI,ISO104,ISO717	Approx 2dB	Approx 2dB

antistatic tile specification:

Size	600mm×600mm,610mm×610mm
Thickness	2.0mm/2.5mm/3.0mm
System Resistance	10E4-10E6 ohm (Conductive) 10E6-10E8 ohm (Anti-static)

Note: Color is fixed according to samples.

Detailed Photos
Our Advantages Because LEENOL floor is impermeable, the surface dirty is easy to clean.
Avoid sharp scratches on the floor by hard object ,and maintain a smooth surface.
Clearing the floor by neutral detergent ,dry after washing,then coated with anti-static wax.

1. We have professional engineer to do after-sale service if needed.
2. Local service will be done by our local agent if needed.
3. OEM is welcomed or design as customer's request.

Certifications
FAQ Q1: Why choose us?
Ans: LEENOL is committed to the following vision:
• To be the first choice of customer
• Providing high class product and service
• Work happy with customer, supplier and employees.

Q2: What information should we supply if we want a quotation?
Ans: Quantity and size normally.
Q3: How long you could prepare samples?
Ans:Normally 3days. If customized one, about a week around.
Q4: How about batch order production?
Ans: normally 3-15days or so
Q5:Do you inspect the finished products?
Ans:Yes, We will do inspection by our QC staff.

---
