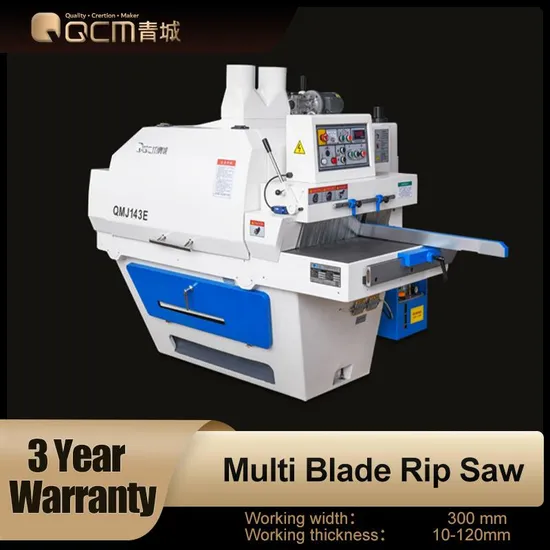

QMJ143E Multi Blade Rip Saw Woodworking Industrial Automatic Wood Cutting Machine

Product Description

Hot Sale QCM QMJ143E Multi Blade Rip Saw Woodworking Industrial Automatic Wood Cutting Machine for Square Wood
Product Parameters

Technical Parameter
Model	Automactic multi blade rip saw	Unit	QMJ143E
Specifications	Max.working width	mm	300
	Working thickness	mm	10-120
	Min. working length (single/ continous)	mm	600/300
	Saw spindle dia.	mm	Φ55
	Reducing sleeve dia.	mm	Φ70
	Saw spindle speed	r/min	4000
	Blade dia.	mm	Φ205-Φ380
	Feeding speed	m/min	4-30
Motor Power	Total power	kW	39.57
	Feeding motor	kW	2.2
	Spindle motor	kW	37
	Lifting motor	kW	0.37
Pressure & Diameter	Suction hood dia.	mm	2*Φ150
Dimensions & Weight	Overall dimensions	mm	2200X1500X1580
	Weight	kg	2300

Product Description

	1. ENTIRE CAST IRON Extra heavy one-piece, cast Iron machine frame is specially heat treated for maximum stability and rigidity by standard configuration.
	2. ANTI-REBOUND SAFETY DEVICE The anti-rebound safety device located on the infeed ensures operational safety.
	3. WEAR RESISTANCE GUIDE TRACK The casting guide track and chain plate are made of special materials, specially processed and precisely processed, with high surface hardness, high precision and good wear resistance.
	4. AUTOMATIC LUBRICATOR The automatic lubricator delivers frequent lubrication oil to the chain.
	5. DUST REMOVAL BRUSH The dust removal brush made of special materials is matched with a quantitative oil injection device to clean and lubricate the chain plates in real time.
	6. HIGH PRECISION SPINDLE All spindles are precision constructed and specially heat treated to provide maximum cutting stability and permanent accuracy.
	7. PROFESSIONAL ELECTRICAL APPLIANCES Imported electrical products and appliances insure the whole machine run well with a stable performance.
	8. CAST IRON CHROMED FEED TABLE The entire Cast Iron - Chromed Infeed table is normalization heat treated for maximum stability. Infeed Table & Fence adjustment is quickly accomplished by means of a quick-setting levers.

Company Profile
About US
QCM Machinery was established in 1970 and have been specializing in production of woodworking machinery for more than 50 years now.
We have our own casting workshop, and more than 300 sets of modern CNC machining equipment and testing equipment, such as Okuma, Mazak, Mitsubishi. Strong R&D team with 55 people can provide our customers with the biggest professional technical support.
Choose our machinery, to help you improve productivity, processing quality, and profit.
Advantages and Service
1. Lead Time?
Within 15 days for regular stock machine after receiving down payment.
45-60 days for customized machines,
60-90 days for busy season.
2. Warranty ?
3 years for machine, 3 years for the core components.
3. Spare Parts?
Unified standards spare parts are available anytime.
4. Voltage?
Regular voltage 380v, 50hz; customized voltage is available.
5. After-sale Service?
24 hours technical support by email, call and video.
our engineer is available to visit at your expenses of accommodation and round tickets.
6. Why us?
1). 50 years experience in woodworking machinery since 1970.
2). Our own casting workshop to insure extra heavy one-piece cast iron machine body for maximum stability and rigidity. Control quality from raw material.
