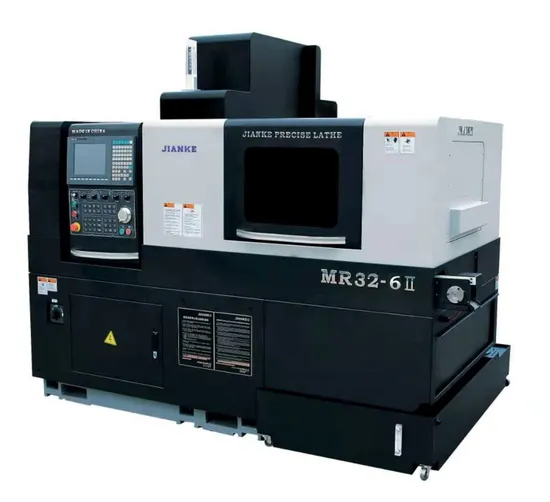

| Swiss type CNC lathe double spindle 6 axis model MR32-6II | Main spindle & Sub spindle |
| ·excellent performance·ability powerful·Operate flexbile | ·Main and sub spindle C axis stantard configration,complete functions ·Excellent performance multi types of tools coordinate reasonably,multi tool frame rasonably option ·rotary guide sleeve,no guide bush freely option, save material high benefit. |
| Double spindle Swiss CNC lathe MR32-6 II | ||||
| System | Taiwan SYNTEC | Syntec 220TB-A | ||
| Control channel | Double channel | |||
| Minimum setting unit | 0.001mm | |||
| Machining | Max processing diameter | 32 mm | ||
| Max processing length at one time | With guide bush | 260mm | ||
| Without guide bush | 1:2.5D(Dia:Lenth) | |||
| Main spindle max drilling Dia | Main spindle axial | ER20 | Φ13mm | |
| ER16 | Φ10mm | |||
| ER11 | Φ7mm | |||
| Main spindle max tapping Dia | Main spindle axial | ER20 | M12 | |
| ER16 | M8 | |||
| ER11 | M6 | |||
| Power head max drilling Dia | Radial | Φ10mm | ||
| Power head max tapping Dia | Radial | M8 | ||
| Sub spindle max drilling Dia | Sub spindle axial | Φ10mm | ||
| Sub spindle max tapping Dia | Sub spindle axial | M8 | ||
| Tool | Tool seat arrangement | Upside tool seat | ||
| Main spindle turning tool | 6 pieces | 6 pieces 16X16mm | ||
| Main spindle side roatry power head | 5 pieces | 5 pieces ER16 | ||
| Main spindle end face fixed tool seat | 4 pieces | 3 pieces ER11/ER16+1 piece ER20 | ||
| Sub spindle end face tool seat(fixed/rotary changeable) | 8 pieces | ER16 | ||
| Main Spindle | Main/sub spindle type | Built-in oil-cooled electric spindle | ||
| Main/sub spindle speed | 8000rpm/min | |||
| Main/sub spindle index | 0.001° | |||
| Main/sub spindle hole Dia | 34mm | |||
| Main/sub spindle center height | 1060mm | |||
| Motor power | Main Spindle power (rated/maximum) | 3.5kw/6.0kw | ||
| Sub Spindle power (rated/maximum) | 3.5kw/6.0kw | |||
| Side rotary head motor power | 1.7kw | |||
| Side rotary head speed | 5000rpm/min | |||
| No. of moving axis | 5 axis | X1,Y1,Z1,X2,Z2 | ||
| Rapid feeding speed | 24m/min | |||
| Moving axis motor power | 0.75kw | |||
| Other | Parts receive device | Short bar | Parts conveyor collect parts | |
| Long bar | Sub spindle backside collect parts | |||
| Power capacity | 20kw | |||
| Air pressure | Above 0.4MPa | |||
| Cutting oil tank capacity | 286L | |||
| Machine size(L*W*H) | 2.47m×1.6m×2.0m | |||
| Lathe Weight | 3880KG | |||
