GPS Car Active High Gain Antenna GPS External Antenna

Negotiable 50 Pieces (MOQ)

Basic Info.

Model NO.
DL-GPS-045
Nature of Operation
Receiving Antenna
Sturcture Form
Wire Antenna
VSWR
1.5
Gain(dB)
30dB
Connector
SMA/BNC/MCX/MMCX/SMB/Fakra/Gt5
Size
48*37*15mm/48*38.5*14mm/37*34*13mm/55*50*16mm
Cable
Rg-174
Color
Black
Weight
<110g
Mounting
Magnetic
Lead Time
3-7 Days
Sample Time
1-3 Days
Certifications
Ce, RoHS, ISO9001: 2008, FCC, Ts16949
Usage
Car Antenna
Usage Occasion
Car Antenna
Operating Wavelength
Microwave
Base Antenna
Directional Antenna
Dimensionality
Two-Dimensional Antenna
Transport Package
Polybag, Paper Cartoon
Origin
China
HS Code
85291010
Production Capacity
30000/Day

Product Description

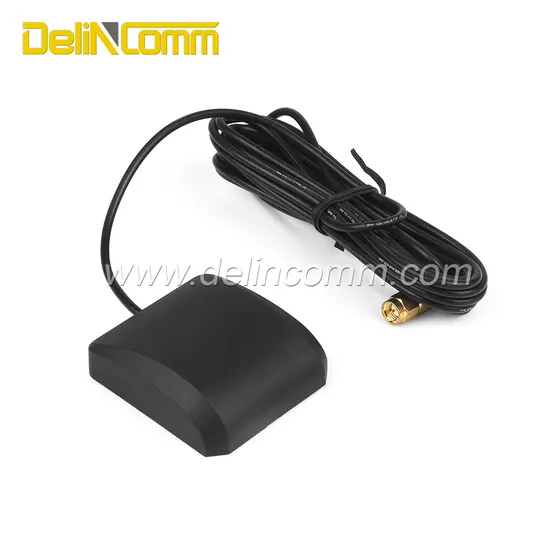

GPS Car Active High Gain Antnna GPS External Antenna
Mechanical Specifications
Size 55*50*16mm/48*37*15mm/
38*37*14mm/37*34*13mm		 Mounting 3M Sticker / Magnetic
Weight <110g Connector SMA/BNC/MCX/MMCX/FAKRA/GT5
Color Black Cable RG174 - 3m

Conditions
Working Conditions Temperature:-40ºC~+85ºC
Humidity: 95%~100%
Storage Conditions Temperature:-40ºC~+85ºC
Humidity: 95%~100%

Antenna Characteristics
Range of Receiving Frequency(MHZ) GPS:1575.42± 3/GLONASS:1600± 5
V.S.W.R(In Center Frequency) ≤ 1.5
Axial Ratio ≤ 3.0
LNA Gain 28± 2
Noise Figure ≤ 2.0
Polarization RC Pol
Impedance 50Ω
Supply Voltage 3-5V
Current Consumption 12± 1@3 v DC
Size 55*50*16mm/48*37*15mm/38*37*14mm etc.
Connector SMA/BNC/MCX/MMCX/FAKRA/GT5
Cable RG-174
Mounting Magnetic
Color Black
Weight <60g

Amplifier Characteristics
No. Item Specifications
1 Range Of Receiving Frequency 1575.42±3MHz
2 LAN Gain 28±1 dB
3 In Center Frequency ≤2.0
4 Noise Figure <2.0
5 Supply Voltage 3~5V
6 Current Consumption 12±1mA@3VDC

PAQ
Q: Can I get one sample?
A: Yes, sample is available.
Q: What's the delivery time?
A: 7-15 days for the sample, 30 days for quantity below 5K.
Q: Could I use my own LOGO or design on goods?
A: Yes, customized logo and design on mass production are available.
Q: What's the payment term?
A:T/T, Paypal, Western Union etc.
Q:May I visit your factory?
A: Sure, welcome any time.
