Sale Tunnel Dry Wet Gunning Shotcrete Machine Price

Product Description

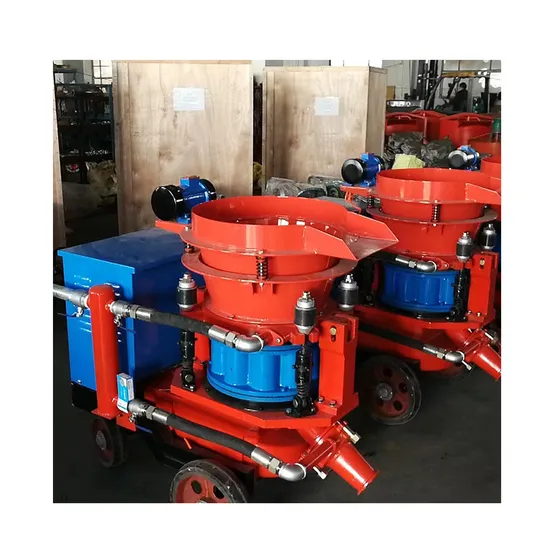

Portable air driven swimming pools concrete spray shotcrete gunit machineProduct Description Yugong PZs rotor type shotcrete machine is a kind of concrete spraying machine which use the air power or diesel power to spray the concrete or cement to the surface of some project; for make a protecting coat for the projects.
Yugong wet shotcrete machine, designed and manufactured as the CE safety standard, is a very excellent and mature rotary concrete spraying machine of Yugong CO. It is equipped with the brand unit of liquid accelerator, mainly applied for dry/ wet mix concreting.
Yugong PZs has been exported the construction gunite/ shotcrete machine to overseas since 2012. Based on its excellent work principle and quality, it got the satisfaction of its users in China, Southeast Asia, Middle East, South America, Middle America, etc.

Product usage -Shotcreting for tunnels, hydro-power engineering, mines, underground engineering, civil engineering and slope stabilization;
-Artificial soil seeding for no soil surface, such as rock, sand, and for no fertility soil surface.
-Refractory concrete spraying and repair for industrial kilns or kilns' inner liner.
-Damping concrete for culvert constuction or protection.
-Metope shotcrete machine, concrete/ cement gunite.
-Dry or wet mix shotcrete is available.
-Swimming pool surface concrete placing shotcrete machine, swimming pool gunite.
Main Parameters

Dry Shotcrete Machine
Model	YG-PZ3	YG-PZ5/PZ6	YG-PZ7
Product capacity	3m³/h	6m³/h	7m³/h
Max. delivery distance	200m	200m	200m
Practical material water-cement ratio	<0.4	<0.4	<0.4
Biggest bone grain size of the fire	20mm	20mm	20mm
Rotor block	350mm	440mm	480mm
Working pressure	0.4-0.6mpa	0.4-0.6mpa	0.4-0.6mpa
Blast costruction	3-4m³/min	6-8m³/min	7-8m³/min
Motor power	3kw	5.5kw	7.5kw
Size	1040*550*950mm	1300*705*1300mm	1600*750*1200mm
Weight	260kg	600kg	700kg

Wet Shotcrete Machine
Model	YG-HSP5	YG-HSP7
Product capacity	5m³/h	7m³/h
Lift	Horizontal 30m, vertical 20m	Horizontal 30m, vertical 20m
Max. particle diameter	15mm	15mm
Motor power	5.5kw	7.5kw
Size	1280*700*1280mm	2000*800*1300mm
Weight	700kg	800kg

Products Features -High-accuracy Gearbox, high clean degree inside;
-High wear resistance and longer use life consumable parts;
-Military standard solid wheels for different construction site;
-IP55 100% new electrical motor, standard Schneider electrical elements and electrical control box strictly as the CE safety standard;
National standard bearing, valve and screw etc.;
-All the casting units manufactured as our special design to ensure the enough strength and some key parts are the welded parts not the casting;
-The sheet metal parts made of the thicker steel plate to have a stronger quality, such as the hopper and electrical control box;
-Serious handle for details, such as, protector for pressure gauge, special part for dust escaping down to the ground;
-Painted after sandblasting for a pretty appearance;
-Explosion-proof designed for the electric power shotcrete machine.
-Rotor type design shotcrete.
Our warehouse
Packaging & Shipping 1. Packaging: 1)Wrapped by proctective film;
2)Packed by standard import & export wooden cases or carton boxes.
2. Shipping: By logistics; by automobile; by train; by shipping; by air etc.
