China 4 Side Edge Milling CNC Metal Sheet Cutting Machine

Product Description

China 4-side edge milling cnc metal sheet cutting machine

Product Description
Applications and basic information:
1.A CNC four-edge milling machine is mainly used for milling chamfers, straight edges, and U-shaped grooves on steel plates. It can complete the milling work of all four edges, including top and bottom chamfers and fillets, with a single loading operation. The feeding table is equipped with automatic centering, automatic feed, and automatic magnetic adsorption of workpieces, suitable for continuous feeding along the long edge.
2.Milling chamfers simultaneously on both sides in the longitudinal direction of the steel plate, while milling chamfers separately in the transverse direction. Multiple sets of tools are used for cutting, with tools featuring automatic parallel displacement and angle adjustment capabilities. This enables processing of I, V, X, and U-shaped chamfers, resulting in smooth, burr-free milling surfaces.

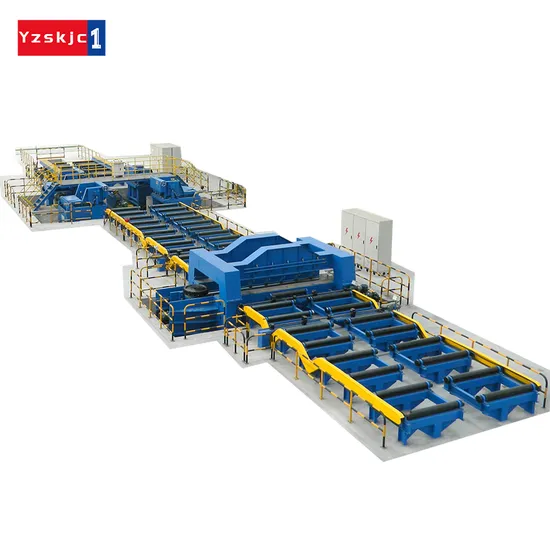

3.The equipment mainly consists of four chamfer milling units, a feeding table, an automatic chip removal and recycling device, an operating console, an electrical control cabinet, and a hydraulic power station.
4.Receiving instructions from MES, it can perform automatic centering, automatic positioning, automatic conveying, and automatic milling.

Equipment process flow:
Loading - Automatic centering - Automatic positioning - Workpiece conveying - Milling the front end groove - Workpiece conveying - Milling two long side grooves - Workpiece conveying - Milling the rear end groove - Discharging.
Processing range:

No.	Item	Thickness	Width	Length	Material
1	Steel plate	20-80mm	1200-3000mm	3350-10000mm	DH136,EH6,EH36-235 steel plate

Parameters:

No.	Item	Parameters	Remarks
1	Size	Length≤35m,width≤14a	Foundation space≤13m
2	Beveling processing	I,Y,X type Angle adjustable automatically 0-45° 0~-45°
		U type Angle adjustable automatically 0~10°
3	Surface roughness	≤Ra.12.5
4	Speed	0.3m~3m/min
5	The difference between two diagonals	≤3mm/10000=m
6	Beveling angel accuracy	-0.5°to 0.5°
7	Processing range for one side	1-10mm
8	Conveying platform bearing capacity	≥20T
9	Automatic chip removal and recovery device	Iron slag and iron shavings are automatically collected, the conveyor belt automatically recycles, and flows into the waste bin.

Plate processing parameters:
The sheet material is pre-cut with beveling work in advance, leaving a milling allowance of 3-5mm on each side for milling operations.

No.	thickness	width	length	Bevel type	One side milling times	Milling speed ≥m/min	Total time ≤min (including centering time)
1	20	3000	10000	V type,30°(angle trimming), dumpling edge 2mm	1	2	40
2	40	3000	10000	X type,Symmetrical at 30° on both upper and lower sides of the long edge.:Inner mouth on the upper and lower sides of the short edge:32°,out mouth 28°,dumpling edge:3mm.	1	1.6	40
3	60	3000	10000			1.2	45
4	80	3000	10000			0.7	50

Detailed Photos
Certifications
Our customers
The warranty period is 12 months, calculated from the date of successful installation and trial operation.
The equipment provided by the seller is new and unused. The performance of the equipment, after installation, debugging, and operation complies with the relevant national standards or stipulated in the agreement between the parties.
The seller shall provide relevant technical support within 2 hours upon receiving a phone call from the buyer. In the event that the buyer is unable to resolve the issue independently, the seller will conduct troubleshooting at the within 24 hours in sellers' country . Parts identified as quality-related issues during the warranty period will be replaced free of charge.
We have professional technician team and we could offer installation and training in customers' factory , just charge for reasonable labor fee .
Our customers :
Company Profile
Jiangsu Yizhong CNC Machine Tool (Group) Co., Ltd is a Top machine tool factories for plate processing in China, which set up in 2006, located in Chengbei industrial area, Yangzhou city, Jiangsu province.
It covers an area of 498700 square meters and nine production lines. We're also the National Torch Plan and High-tech enterprise.
Our main products includes CNC lathe , CNC machine center ,Plate rolling mchine (also production line ),Plate hydraulic press machine ,Plate leveling machine ,late Planer and milling machine,plate cutting machine . Meanwhile , with a powerful technician team, OEM machine is our strong suit .
With many years' hard-working, we have built long term and close cooperation relationships with many friends, such as Russia, Australia, United Kingdom, Italy, South Americas, Egypt, India and so on,welcome
your consulting . FAQ
