US$10,500.00-35,000.00
|
1 set
(MOQ)
|
Basic Info.
Type
Drum Drying Equipment
Operating Pressure
Atmospheric Pressure
Roller Number
Single Drum
Cloth Membrane Forms
Bottom Feeding
Fluid Bed Drying Equipment Type
Monolayer Fluid Bed
Vacuum Drying Equipment Type
/
Machinery Test Report
Provided
Video Outgoing-Inspection
Provided
Core Components
Bearing, Gear, Motor, PLC, Engine
Application Scope
Laundry Tablet, Hand Washing Tablet etc.
After-Sales Service Provided
Video Technical Support\Online Support
Heating Mode
Electric/Steam
Marketing Type
Ordinary Product
Evaporation Capacity(Kg/H)
150-225
Transport Package
Wooden Case
Production Capacity
10 Sets Per Months
Product Description

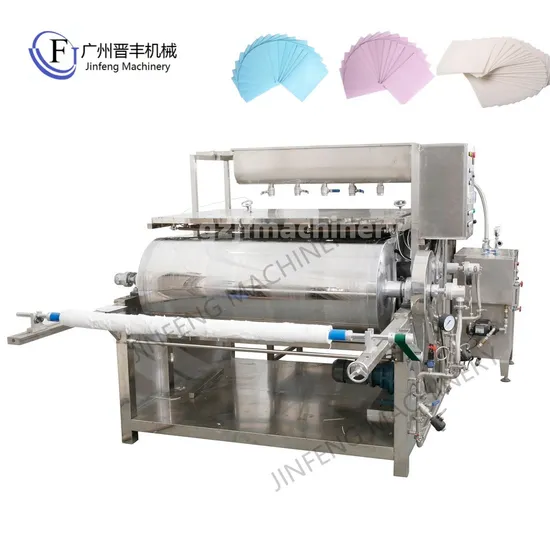

Jinfeng Natural Laundry Tablet Washing Paper Soap Dryer Roller With Steam Generator Detergent Sheet Machine
Product Description Product Overview
JF-02 series drum dryer working principle is to make liquids or muddy object item in steam or other hot heating surface to form films. drum turn around was in the process of drying is completed. use spatula scrape.revealing the surface again with the raw material contact drying form a thin film. Application
JF-02 series drum dryer is a new product developed by our company, are widely used in sticky, paste materials production processes.
Product Specification
| Model | Roller diamater | Effective heating area M² | Steam consumption(kg/h) | Power(kw) | Machine size(m) | Machine weight(kg) |
| JF-600 | Ф600*800 | 1.4 | 100-175 | 1.1 | 1.35*1.4*1.3 | 768 |
| JF-1500 | Ф1500*1500 | 7 | 1100-1825 | 1.5 | 2.3*2.7*2.2 | 2360 |
| JF-1500(Double drum dryer) | Ф600*1600 | 2.2-3 | 1100-1825 | 3-6 | 2.7*2.3*1.6 | 2590 |
Note: In case of nonconformity of the data in the form due to technical improvement or customization, the real object shall prevail.
Product details JF-02 series dryer drum composed by a rollers, racks, the charging device (top feeding or bottom prepregs), drive, Hopper, charge transfer device and so on.
Product Certification
Packing&Shipping
1.Package:PE film cover inside and then plywood case.
2.Accept terms:EXW,FOB,C&F,CIF,etc.
3.Shipping by Express,Air or Sea based on customers' requirements and lowest cost solution.
FAQ
